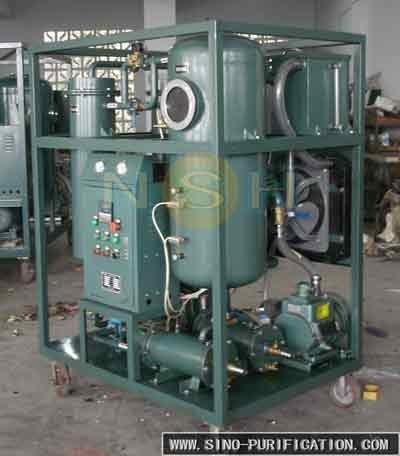

High Performance 18kw Dehydration Vacuum Turbine Oil Purifier
High Performance 18kw Dehydration Vacuum Turbine Oil Purifier
Specifications
Brand Name :
SINO-NSH
Model Number :
TF-20
Certification :
CE, ISO,SGS, SASO, SONCAP
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Wooden Case
Product Power :
18kW
Product Capacity :
1200L/h
Color :
Custom
Power Supply :
Fully Customizable
Material :
Stainless Steel/Carbon Steel
Warranty :
1years
After Warranty Service: :
Video Technical Support, Online Support
Product Name :
Double-Stage Vacuum Transformer Oil Purifier
Description

High Performance 18kw Dehydration Vacuum Turbine Oil Purifier

Corollary Equipment-VR Vacuum Pump Set:


SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.

Parameter Value
VR-30 VR-70 VR-150 VR-300 VR-600 VR-900
Capacity, liters/hour 100 250 500 1000 2000 3000
Total Power, kW 3 3 5 7 8 13
Power supply Fully Customizable
Maximum Vacuum Range,Pa 0.06
Outlet Diameter, mm 32 32 40 40 50 65
Dimensions length, mm 900 550 1000 1200 1500 1950
width, mm 800 900 800 800 1000 1800
height, mm 1200 800 1200 1200 1200 1300
Weight(without trailer), kg 450 550 600 900 950

1950

Order Tips:


If you are not sure about the filter needed exactly,please advise what types of the oil adn give the oil specification.We help you choose certain suitable oil purifier.

Other Models of TF Series Vacuum Turbine Oil Purifier:

NSH-TF-E Explosion-proof Turbine Oil Purifier
Sino-NSH-TF-E is explosion-proof type designed for flammable and combustible working conditions in power plant, petroleum, petrochemical, chemistry, metallurgy and other industries.

NSH-TF-E adds an explosion-proof system compare to NSH-TF, using comprehensive explosion-proof technology. The components such as heating system, electric control system, motor and solenoid valves etc are well-selected explosion-proof type adapt to different danger level.
NSH-TF-A Automatic Control Vacuum Turbine Oil Purifier
Sino-NSH-TF-A isfully automatic unit developed based on NSH-TF, realize the intelligence of the machine and simplify the operation.

Sino-NSH-TF-A utilizes the brand Programmable Logic Controller(P.L.C) and a series of instrumentations, alarms and interlocks to provide a fully automatic operation. Manual control of various functions is provided as required. Several Pilots Lights are provided to indicate operational atatus of key components and alarm conditions.

With full scale of on-line testers and detectors as option, Sino-NSH-TF-A could implements accessible and reliable solutions for unique request and pratical usage.
NSH-TF-Z Coalescence and Separation Turbine Oil Purifier
Sino-NSH-TF-Z is a dehydration and filtration unit, especially suits for purification of turbine oil and fuel, etc.

Sino-NSH-TF-Z combines the latest innovations in coalescence separation technology and micro-glass filter media in one system to achieve optimal fluid cleanliness. With specially designed filter elements, it can efficiently separate water from oil quickly, break the emulsification, as well as remove particulate pollutants. After separation, the water content can be reduced to less than 100 PPM, and the cleanliness can reach or better than NAS4~6 Grade.

Sino-NSH-TF-Z can effectively save operating costs as no heating or vacuum is required, and it is designed for continuous operation and unattened operation.
NSH-TC Turbine Oil Vacuum Purifier and Centrifugal Combination Plant
Sino-NSH-TC is a comlete oil purification system integrating vacuum oil purifier and centrifugal separator, widely used for the filtration and purification of turbine oil, as well as other lubricant oils.

Sino-NSH-TC adopts vacuum and centrifugal technology, designed to meet the divers needs of customers. It can effectively remove free water, dissolved water as well as emulsified water, reduce the water content to less than 100 PM. Also remove the particulate contamination from oil with high precision centrifugal separator. Centrifugal separator is able to remove 99.95% of solid contaminates and 99.4% of water.
Various capacities are avaliable for this system, and some optional devices such as

PLC control system, Container structure, etc.

Vacuum Turbine Oil Purifier Technical Parameters:

Parameter Value
TF-20 TF-30 TF-50 TF-100 TF-150 TF-200 TF-300
Capacity, liters/hour 1200 1800 3000 6000 9000 12000 18000
Heating Power, kW 15 24 30 48 72 96 120
Total Power, kW 18 17 34 53 78 103 129
Power supply Fully Customizable
Inlet Diameter, mm 25 25 32 40 40 50 65
Outlet Diameter, mm 25 25 32 40 40 50 65
Dimensions
(without trailer)		 length, mm 1300 1300 1450 1650 1850 2000 2400
width, mm 1900 900 1000 1150 1250 1350 1700
height, mm 1460 1460 1510 1560 1610 1660 1760
Weight(without trailer), kg 300 330 450 650 750 900 1500
Processed Oil Spec Water Content, ppm ≤100
Dielectric Strength, Kv ≥6
Filtration Fineness, um ≤5( or 1-5 as needed )
Gas Content, % ≤15


Vacuum Turbine Oil Purifier Usage:
1.It can be used for oil filtering and oil filling on site for all kinds of oil-immersed transformer oil-immersed current and voltage transformer and high-voltage oil-less circuit breaker.
2. It can be used for hot oil cycle drying on site for the above equipment, especially for hot oil cycle drying on site for oil-immersed current and voltage transformer and high-voltage oil-less circuit breaker
3. It can also be used for the regeneration and purification of mildly deteriorated transformer oil, so that its performance reaches the qualified oil standard.
4. It can also be used in power plant, power station, power company, transformation industry, metallurgy, petrochemical machinery, transportation and railway industries

High Performance 18kw Dehydration Vacuum Turbine Oil Purifier

High Performance 18kw Dehydration Vacuum Turbine Oil Purifier
