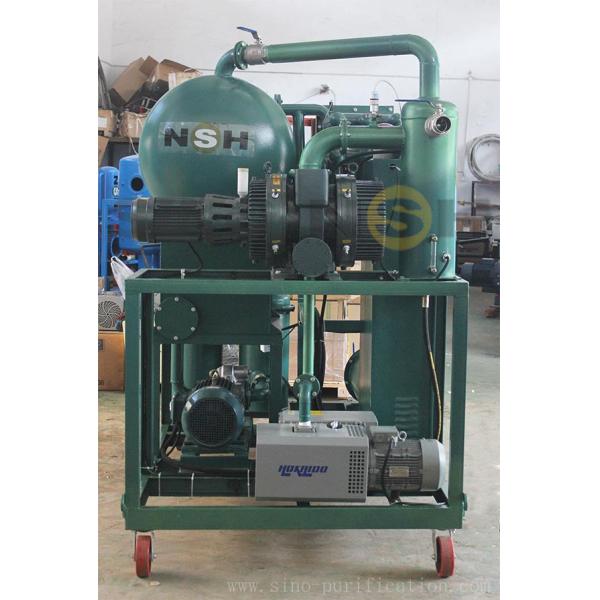

Decontamination High Performance 27kw Vacuum Turbine Oil Purifier
Decontamination High Performance 27kw Vacuum Turbine Oil Purifier
Specifications
Brand Name :
SINO-NSH
Model Number :
TF-30
Certification :
CE, ISO,SGS, SASO, SONCAP
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Wooden Case
Product Power :
27kW
Product Capacity :
1800L/h
Color :
Custom
Power Supply :
Fully Customizable
Material :
Stainless Steel/Carbon Steel
Warranty :
1years
After Warranty Service: :
Video Technical Support, Online Support
Product Name :
Double-Stage Vacuum Transformer Oil Purifier
Description

Decontamination High Performance 27kw Vacuum Turbine Oil Purifier

27kw Vacuum Turbine Oil Purifier Characteristics:


1. Vacuum oil filter is also called vacuum efficient oil filter, oil filter, vacuum clean oil machine.
2. Using vacuum oil inlet, a tubular rotary injector is installed to reduce the resistance, speed up the rotation, and increase the oil and gas separation effect.
3. Small size, light weight, easy to move, low noise, long continuous working time, stable performance, easy to operate.

27kw Vacuum Turbine Oil Purifier Technical Parameters:

Parameter Value
TF-20 TF-30 TF-50 TF-100 TF-150 TF-200 TF-300
Capacity, liters/hour 1200 1800 3000 6000 9000 12000 18000
Heating Power, kW 15 24 30 48 72 96 120
Total Power, kW 18 17 34 53 78 103 129
Power supply Fully Customizable
Inlet Diameter, mm 25 25 32 40 40 50 65
Outlet Diameter, mm 25 25 32 40 40 50 65
Dimensions
(without trailer)		 length, mm 1300 1300 1450 1650 1850 2000 2400
width, mm 1900 900 1000 1150 1250 1350 1700
height, mm 1460 1460 1510 1560 1610 1660 1760
Weight(without trailer), kg 300 330 450 650 750 900 1500
Processed Oil Spec Water Content, ppm ≤100
Dielectric Strength, Kv ≥6
Filtration Fineness, um ≤5( or 1-5 as needed )
Gas Content, % ≤15

Oil Purification Order Tips:


If you are not sure about the filter needed exactly,please advise what types of the oil adn give the oil specification.We help you choose certain suitable oil purifier.

Decontamination High Performance 27kw Vacuum Turbine Oil Purifier

Other Models of TF Series Turbine Oil Purifier:

NSH-TF-E Explosion-proof Turbine Oil Purifier
Sino-NSH-TF-E is explosion-proof type designed for flammable and combustible working conditions in power plant, petroleum, petrochemical, chemistry, metallurgy and other industries.

NSH-TF-E adds an explosion-proof system compare to NSH-TF, using comprehensive explosion-proof technology. The components such as heating system, electric control system, motor and solenoid valves etc are well-selected explosion-proof type adapt to different danger level.
NSH-TF-A Automatic Control Vacuum Turbine Oil Purifier
Sino-NSH-TF-A isfully automatic unit developed based on NSH-TF, realize the intelligence of the machine and simplify the operation.

Sino-NSH-TF-A utilizes the brand Programmable Logic Controller(P.L.C) and a series of instrumentations, alarms and interlocks to provide a fully automatic operation. Manual control of various functions is provided as required. Several Pilots Lights are provided to indicate operational atatus of key components and alarm conditions.

With full scale of on-line testers and detectors as option, Sino-NSH-TF-A could implements accessible and reliable solutions for unique request and pratical usage.

Package & Delivery:

Decontamination High Performance 27kw Vacuum Turbine Oil Purifier
