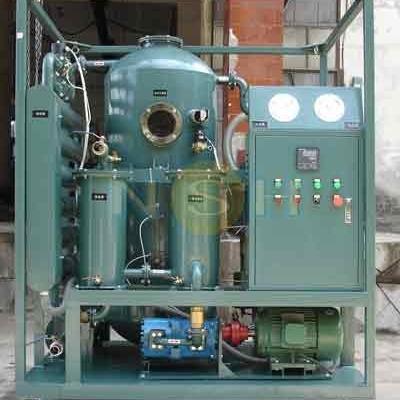

6000L / H Degassing Vacuum Transformer Oil Purifier Single Stage Mechanical
6000L / H Degassing Vacuum Transformer Oil Purifier Single Stage Mechanical
6000L / H Degassing Vacuum Transformer Oil Purifier Single Stage Mechanical
6000L / H Degassing Vacuum Transformer Oil Purifier Single Stage Mechanical
Specifications
Brand Name :
SINO-NSH
Model Number :
VF-100
Certification :
CE, ISO,SGS, SASO, SONCAP
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Wooden Case
Product Name :
Single Stage Vacuum Transformer Oil Purifier
Product Capacity :
6000L/H
Color :
Custom
Product Power :
65kW
Material :
Stainless Steel/Carbon Steel
Warranty :
1years
After Warranty Service: :
Video Technical Support, Online Support
Condition :
New
Description

6000L/H Custom Degassing Single Stage Vacuum Transformer Oil Purifier mechanical

General:

SINO-NSH-VF series single-stage vacuum insulation oil purifier is mainly used to extend the lifetime of oils used in transformers, circuit breakers, mutual inductor, voltage regulators and switch gear, or to inject the insulating oil into the transformers.

Equipped with regenerators, it can improve the effect of de-acid, de-color and remove dielectric and acid more effectively. The value of breakdown voltage will increase from 15KV to 65KV. The performance and lifetime of insulating oil will improve and extend awfully after purification and regeneration.

Benefits of Transformer Oil Purifier

1. Removes Dissolved Moisture Transformer Oil

2. Reduces combustible gases and oxygen

3. Improves oil dielectric values

4. Improves transformer power factor

5. Extends oil service life

6. Extends transformer service life and reliability

Oil Data After Purification

Dielectric Strength (BDV) kV ≥60
Water Content ppm ≤7
Gas Content % ≤0.1
Impurity Size μm ≤5

0W 18000L/H Vacuum Insulation Oil Purifier Descriptio

Parameter Value
VF-10 VF-20 VF-30 VF-50 VF-100
Capacity, liters/hour 600 1200 1800 3000 6000
Heating Power, kW 9 15 24 36 60
Total Power, kW 11 17 26 39 65
Power Supply Fully customizable **
Inlet Diameter, mm 25 25 25 32 40
Outlet Diameter, mm 25 25 25 32 40

Dimensions

(without trailer)

 length, mm 1300 1400 1400 1400 1550
width, mm 900 900 900 900 1550
height, mm 1300 1300 1300 1700 1850
Weight (without trailer), kg 300 330 350 400 650

** Operating voltage: 380 V (50 Hz), 380 V (60 Hz), 400 V (60 Hz), 415 V (50 Hz), 415 V (60 Hz), 220 V (60 Hz), 460 V (60 Hz), etc (customizable)

** The installation shall be designed to operate satisfactory at ambient temperatures ranging from -20 deg.C to 55 deg. C

** The heating power and total power are different with different capacity, please consult sales for more.

6000L / H Degassing Vacuum Transformer Oil Purifier Single Stage Mechanical

Package & Delivery:

6000L / H Degassing Vacuum Transformer Oil Purifier Single Stage Mechanical
