50Hz Turbine Oil Purifier Explosion Proof Insulation Oil Purifier
50Hz Turbine Oil Purifier Explosion Proof Insulation Oil Purifier
Specifications
Brand Name :
Sino-NSH
Model Number :
TF
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 Set
Supply Ability :
50 sets per month
Delivery Time :
10 working days
Packaging Details :
Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks
Application :
oil purifier,oil purification,oil fitraion,oil treatment,oil recycling,oil regeneration
Function :
Dehydration, Degassing, Remove Impurities
Flow Rate :
600-18000L/H
Power Supply :
380V/3P/50Hz(or as needed)
After-sales Service Provided :
engineers available to service machinery overseas
Color :
As your requirement
Product Name :
Insulation Oil Purifier
Usage :
Transformer Oil, Lubricant Oil, Insulation Oil, Oil Filtration,
Description

600-18000 Liters/Hour Turbien Oil Filtration Machine Explosion-Proof Turbine Oil Purifier

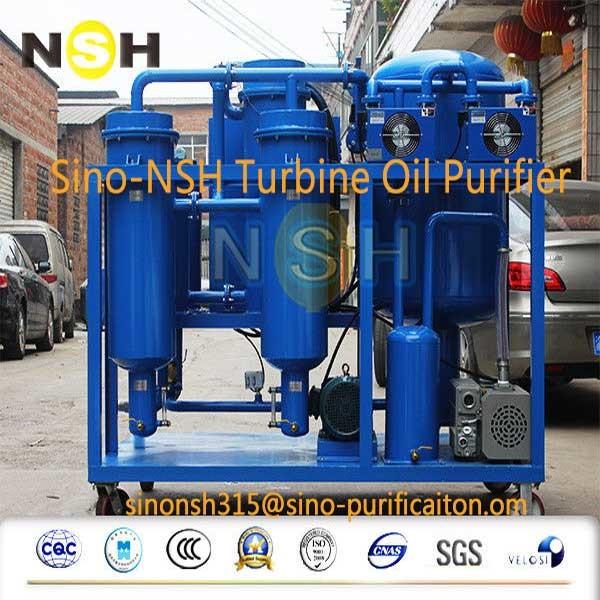

NSH-TF-E Explosion-Proof Turbine Oil Purifier

Sino-NSH-TF-E is Explosion-proof type designed for flammable and combustible working conditions in power plant, petroleum, petrochemical, chemistry, coal mining, metallurgy and other industries.

Sino-NSH-TF-E adds an explosion-proof system compare to NSH-TF, using comprehensive explosion-proof technology. The components such as heating system, electric control system, motor and solenoid valves etc are well-selected Explosion-proof type adapt to different danger level.

Four main security and protecting systems:

ü Liquid level auto-controlling system

ü Auto pressure protection system

ü Steady temperature auto-controlling system

ü Electrical auto-protection system to control electric phases,voltage, and overload of pump

Parameter Value
TF-150 TF-300
Capacity, liters/hour 9000 18000
Heating Power, kW 72 120
Total Power, kW 78 129
Power Supply Fully customizable
Inlet Diameter, mm 40 65
Outlet Diameter, mm 40 65
Dimensions
(without trailer)		 length, mm 1850 2400
width, mm 1250 1700
height, mm 1610 1760
Weight (without trailer), kg 750 1500
Processed Oil Spec Water Content, ppm ≤ 100
Cleanliness (NAS 1638) ≤ 6
Filtration Fineness, um ≤ 5 (or 1-5 as needed)
Emulsification value, min ≤ 15
