PLC/Touch Screen Controlled Multi Arc Ion Vacuum Coating Machine with Customized Chamber Size and High Deposition Rate
PLC/Touch Screen Controlled Multi Arc Ion Vacuum Coating Machine with Customized Chamber Size and High Deposition Rate
PLC/Touch Screen Controlled Multi Arc Ion Vacuum Coating Machine with Customized Chamber Size and High Deposition Rate
PLC/Touch Screen Controlled Multi Arc Ion Vacuum Coating Machine with Customized Chamber Size and High Deposition Rate
PLC/Touch Screen Controlled Multi Arc Ion Vacuum Coating Machine with Customized Chamber Size and High Deposition Rate
PLC/Touch Screen Controlled Multi Arc Ion Vacuum Coating Machine with Customized Chamber Size and High Deposition Rate
PLC/Touch Screen Controlled Multi Arc Ion Vacuum Coating Machine with Customized Chamber Size and High Deposition Rate
PLC/Touch Screen Controlled Multi Arc Ion Vacuum Coating Machine with Customized Chamber Size and High Deposition Rate
Specifications
Place of Origin :
Guangdong
Brand Name :
Lion King
Certification :
CE
MOQ :
1
Delivery Time :
20
Coating Power Supply :
DC/RF/AC
Coating Process :
Vacuum Evaporation
Coating Density :
≥99.9%
Coating Thickness :
0.1-10 microns
Coating Technology :
Multi Arc Ion
Coating Application :
Decorative, Functional, Protective
Coating Color :
Silver, Gold, Rose Gold, Black, etc.
Coating Uniformity :
≤±5%
Coating Hardness :
≥Hv800
Coating Adhesion :
≥Grade 1
Coating Substrate :
Metal, Glass, Ceramic, Plastic
Coating Chamber Size :
Customized
Coating Control System :
PLC/Touch Screen
Coating Temperature :
≤200℃
Coating Size :
Customized
Coating Speed :
1-4m/min
Coating Source :
Arc Evaporation
Coating Material :
Metal
Description

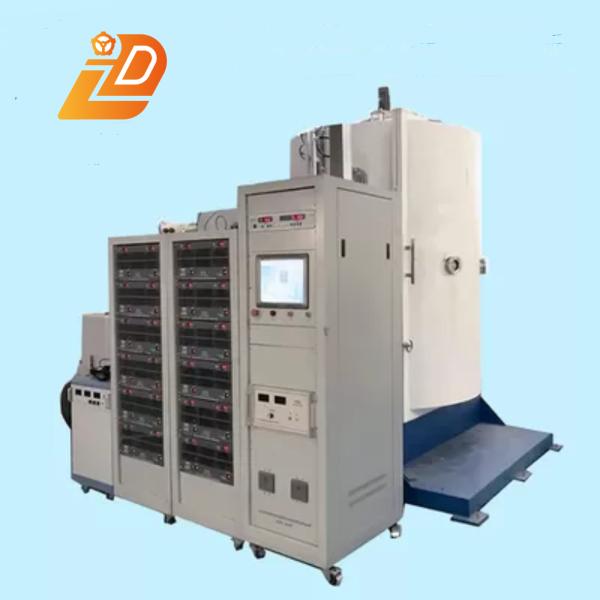

Advanced Technology Multi Arc Ion Vacuum Coating Machine
Precision-controlled PVD vacuum coating system with multi-arc ion plasma technology for industrial applications.
Key Advantages
  • High Deposition Rate: Achieves film thicknesses of 1-5 μm/h, ideal for large-scale production
  • Hardness & Wear Resistance: Coatings like TiAlN exhibit hardness up to 3000 HV, extending tool life by 3-5x
  • Uniform Coverage: Effective for complex geometries (screws, gears) due to plasma diffusivity
  • Corrosion Resistance: Dense films protect against harsh environments (marine or automotive)
Applied Industries
  • Tooling & Molds: Cutting tools, punches, and dies
  • Automotive: Engine components and decorative trim
  • Jewelry & Watches: Durable, scratch-resistant gold or black finishes
  • Medical: Sterile, biocompatible coatings for surgical instruments
Coating Effects & Colors
  • Surface Finishes: Mirror-like metallic lusters or matte textures
  • Color Options: Gold (TiN), black (CrN), blue (TiAlN), and rainbow gradients
Structure Types
  • Vertical Chamber: Optimized for batch processing of small parts
  • Horizontal Chamber: Suitable for large-scale deposition on flat or cylindrical substrates
Substrate Materials
Metals (stainless steel, aluminum), ceramics, and hard plastics
Coating Materials
  • Metals: Ti, Cr, Zr, Al
  • Nitrides: TiN, CrN, ZrN
  • Carbides: WC, TiC
Technical Specifications
Configuration Model Lion-700-ION Lion-1000-ION Lion-1300-ION Lion-1600-ION Lion-1800-ION Lion-2000-ION Lion-2200-ION
Chamber Size (MM) D700*H700 D1000*H1200 D1300*H1500 D1600*H1800 D1800*H2000 D2000*H2400 D2200*H4000
Vacuum System Diffusion pump/Molecular pump + Roots pump + Double stage direct driver Rotary pump + Holding pump + Cryogenic pump (optional)
Arc Power Supply 4 sets 8 sets 12 sets 16 sets 20 sets 24 sets 40 sets
Arc Source 4 sets 8 sets 12 sets 16 sets 20 sets 24 sets 40 sets
Bias Power Supply 12KW 20KW 30KW 40KW 60KW 60KW 80KW
Gas MFC System 4-way intake system
Baking System Up to 350°C
Control System PLC
Ultimate Vacuum 5.0*10-4pa
Total Power 50KW 75KW 145KW 190KW 250KW 305KW 455KW
Coating Cycle Time Around 15 to 50 minutes per cycle (depending on coating film layer of different coating products)
Delivery Container Size 1 set 20GP 1 set 20GP 1 set 20GP 1 set 40HQ 1 set 40HQ 1 set 20FR + 1 set 40GP 1 set 20FR + 2 sets 40HQ
Machine Installing Time 7 days (1 engineer) 7 days (1 engineer) 7 days (1 engineer) 10 days (2 engineers) 10 days (2 engineers) 15 days (2 engineers) 20 days (2 engineers)
Supporting Production Lines
Integrates with pre-coating cleaning systems (ultrasonic baths) and post-coating heat treatment
Consumables
Target rods (Ti, Cr, etc.), reactive gases (N₂, O₂), and cooling water
Applications
  • Cutting Tools: TiAlN coatings for high-speed machining
  • Decorative Hardware: Door handles and faucets with corrosion-resistant finishes
  • Aerospace: High-temperature coatings on engine components
Customization
Our systems feature adjustable arc sources, plasma-enhanced deposition modules, and automated process control for tailored coating performance
Packaging and Delivery
Plastic film cover, wooden box, high cube export standard packing container for PVD vacuum used stainless steel sheet vacuum coating machine.
Port of Dispatch: Guangdong
Selling Units: Single item
Single Package Size: 60×20×25 cm
Single Gross Weight: 20.000 KG
Packaging Examples
PLC/Touch Screen Controlled Multi Arc Ion Vacuum Coating Machine with Customized Chamber Size and High Deposition Rate PLC/Touch Screen Controlled Multi Arc Ion Vacuum Coating Machine with Customized Chamber Size and High Deposition Rate
Supply Capacity
Supply Ability: 30 sets per 60 days
