Ultra Clear Low Emissivity Glass Vacuum Coating System PLC Control Large Capacity
Ultra Clear Low Emissivity Glass Vacuum Coating System PLC Control Large Capacity
Specifications
Place of Origin :
Guangdong
MOQ :
1
Brand Name :
Lion King
Certification :
CE
Delivery Time :
20
Packaging Details :
wooden box packaging
Coating Adhesion :
≥Grade 0
Coating Temperature :
≤150℃
Coating Material :
Low Emissivity Glass
Glass Type :
Emissivity Glass
Emissivity :
Low
Coating Durability :
Long-lasting
Coating Speed :
≤10m/min
Coating Type :
Vacuum Coating
Application :
Glass Coating
Coating Uniformity :
±5%
Coating Method :
Sputtering
Coating Transparency :
≥80%
Coating Efficiency :
High
Coating Size :
Customized
Coating Substrate :
Glass
Coating Resistance :
≥1000 hours of salt spray test
Coating Application :
Low-E Glass, Architectural Glass, Automotive Glass
Coating Hardness :
≥6H
Coating Technology :
Vacuum Coating
Coating Thickness :
5~15nm
Target :
silver
Coating Adhes :
3~10 N/mm²
Coating Temperature Resistance :
100~200°
Coating Color :
Silver/Gray
Coating Lifespan :
≥10 years
Coating Equipment Dimension :
Customized according to customer's requirements
Description
Model NO.
SP-5000
Type
Coating Production Line
Coating
Vacuum Coating
Substrate
Steel
Certification
CE
Condition
New
Equipment Name
Inline Magnetron Sputtering Vacuum Coating machine
Technology
DC or MID-Frequency Magnetron Sputtering
Application
Functional and Decorative Coating Purposes
Coating Films
Metal Coating, Ar, ITO Coatings, etc
Coating Cycle Time
Depends on The Coating Films
Pump System
Turbo Molecular Pump+Roots Pump+Mechanical Pump
Control
PLC Control
Transport Package
Export Standard Packing
Specification
Customized
Trademark
Lion King
Origin
China
HS Code
8543300090
Production Capacity
10 Sets/Year

Product Description

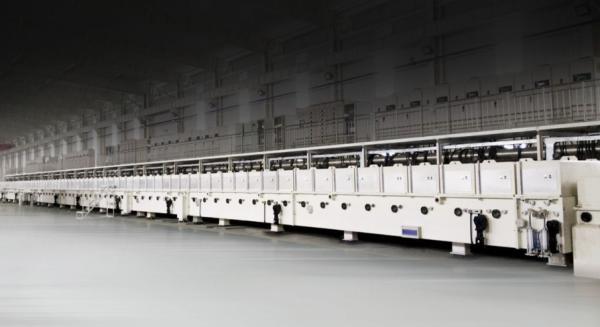

Inline Magnetron Sputtering Vacuum Coating Machine For Thin Film Deposition on Glass Panels
Ultra Clear Low Emissivity Glass Vacuum Coating System PLC Control Large CapacityUltra Clear Low Emissivity Glass Vacuum Coating System PLC Control Large Capacity
Vacuum magnetron sputtering technique is the use of the female, bipolar electrode surface with the magnetic field of the electron in the cathode surface drift, by setting the target surface electric field perpendicular to the magnetic field, the electron increases stroke, increase the rate of ionization of the gas, while the high-energy particles gas and lose energy after the collision and so lower substrate temperature, complete coating on a non-temperature resistant material. Vacuum magnetron sputtering coating has the following advantages:
(1) The thickness of the coating can be controlled, according to the needs of people plating film, and the coating can be repeated, but also to break the limit of the prior art, to obtain a uniform film thickness on a large surface;
(2) Film obtained by this technique with strong adhesion;
(3) This technique can be prepared a special film material, according to their needs while sputtering hybrid film, compound film;
(4) high purity film.
We provide customized options for the machine, such as the different vacuum pumping systems, gas distribution system, coating system, etc.

The vacuum coater will be made exactly to feet your requirements. Our PVD machines are popular in Russia, Mexico, USA and other european countries.
