High Uniformity Magnetron Sputtering Vacuum Coating Machine with Customizable Substrate Size and Low Temperature PVD Coated Machine
High Uniformity Magnetron Sputtering Vacuum Coating Machine with Customizable Substrate Size and Low Temperature PVD Coated Machine
Specifications
Place of Origin :
Guangdong
MOQ :
1
Brand Name :
Lion King
Certification :
CE
Delivery Time :
20
Packaging Details :
wooden box packaging
Coating Method :
Magnetron Sputtering
Coating Uniformity :
High
Chamber Material :
Stainless Steel
Substrate Size :
Customizable
Vacuum Degree :
≤10-6 Pa
Coating Thickness :
Adjustable
Power Supply :
DC/RF
Control System :
PLC Touch Screen Control
Gas Supply :
Multiple Gases
Cooling System :
Water Cooling
Coating Speed :
Fast
Model :
AF AS Film Magnetron Sputtering Vacuum Coating Machine
Target Power :
DC/RF/AC
Coating Technology :
Magnetron Sputtering
Coating Target :
Metal, Alloy, Ceramic, etc.
Vacuum Pump :
Rotary Vane Pump, Roots Pump, etc.
Coating Substrate :
Glass, Metal, Ceramic, etc.
Vacuum Chamber Size :
Customized
Coating Application :
Optical, Electronic, Decorative, etc.
Coating Color :
Silver
Application :
Film Magnetron Sputtering
Coating Temperature :
Low
Coating Hardness :
High
Vacuum Technology :
Vacuum Coating
Coating Transparency :
High
Type :
Magnetron Sputtering Vacuum Coating Machine
Coating Adhesion :
Strong
Substrate Material :
Not specified
substrate :
glass
Vacuum System :
Sputtering Vacuum System
Coating Size :
Customizable
Product Type :
Vacuum Coating Machine
Description

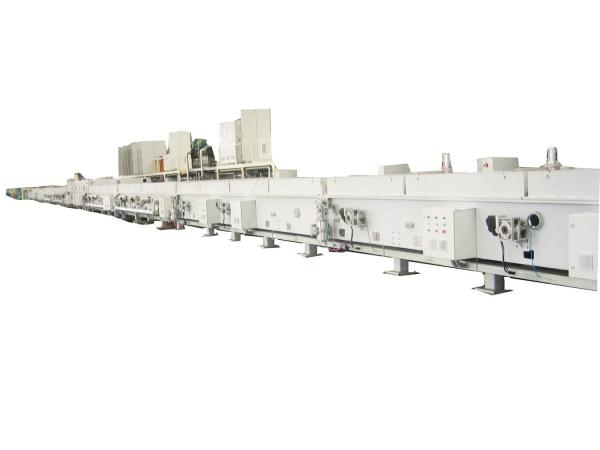

NCVM / DLC / AF Color Film Magnetron Continuous Coating Line
NCVM (Non-Conductive Vacuum Metallization)

NCVM is a revolutionary coating technology that provides both aesthetic enhancement and non-conductive functionality. This process ensures optimal performance for electronic devices without interfering with wireless communication transmission.

DLC (Diamond-Like Carbon) Coating

DLC coatings deliver diamond-like properties including exceptional hardness, chemical and scratch resistance, and superior lubricity to minimize friction and wear.

AF (Anti-Fingerprint) Coating

Inspired by the lotus leaf effect, AF coating creates a nano-chemical surface with strong hydrophobicity, providing excellent anti-oil and anti-fingerprint properties. This ensures easy cleaning and maintains a smooth, comfortable surface feel.

Technical Specifications
Parameter Specification
Chamber Type Vertical and horizontal method of multi-chamber
Applied Material Glass and other plastic, metal materials
Substrate Size Vertical type: 2,200mm x 2,500mm
Horizontal type: 1,500mm x 1,800mm
Tact Time 60 sec or less (Static method)
35 sec or less (Dynamic method)
Coating Source Sputter source: Rotary cathode, Planar cathode
Thermal source: Crucible, E-beam
Coating Material Metal: Al, Ti, Cr, Cu, NiCr, Ni, Ag, other metals
Reactive: TiO2, Nb2O5, SiO2, TIO, SiAlOx, MoOx, other nitride/oxide materials
Power Supply DC, Pulse DC, MF
Thickness Uniformity ±10% or less (Static film)
±5% or less (Moving film)
Measuring Instrument Sheet resistance, optic (Transmittance, reflectance, color-difference meter), plasma emission monitor, RGA
Application Fields
  • Household Appliances: Decorative coating on household products and mobile device exteriors
  • Energy Sector: Architectural window glass, solar cells
  • Industrial Applications: Metal thin film, oxide thin film, and multi-layered thin film coating applications
Coating Solutions
Outer NCVM/DLC/AF Color Film Coating

Film Properties: Dazzling color; scratch resistant; metallizing

Applications: Mobile phones

Substrate: Glass

Equipment: Magnetic Sputtering Single Machine or Continuous Line

Membrane System: Silicon nitride and silicon oxide

Special Feature: Gradient color capability

Inner Glass NCVM Color Film

Film Properties: Dazzling color, metallizing

Applications: Watches, wearables

Substrate: Glass

Equipment: Magnetic Sputtering Single Machine or Continuous Line

Membrane System: Niobium oxide or titanium oxide with silicon oxide

PET/Composite Board Color Film

Film Properties: Dazzle color, metallic texture

Applications: Mobile phones

Substrate: PET / composite board

Equipment: Magnetic Sputtering Single Machine or Continuous Line / Evaporation Machine

Membrane System: Niobium oxide or titanium oxide, indium tin and silicon oxide
