Multi-Arc Ion Plating

Technology Overview

Working Principle

• Arc Evaporation: High-current arcs strike the target surface, generating ionized metal vapor.
• Plasma Acceleration: A negative bias on the substrate attracts ions, enhancing film density and adhesion.
• Reactive Gas Introduction: Oxygen or nitrogen can be introduced to form compounds like TiN or Cr₂O₃ .

Key Advantages

1. High Deposition Rate: Achieves film thicknesses of 1–5 μm/h, ideal for large-scale production.
2. Hardness & Wear Resistance: Coatings like TiAlN exhibit hardness up to 3000 HV, extending tool life by 3–5x.
3. Uniform Coverage: Effective for complex geometries (e.g., screws, gears) due to plasma diffusivity.
4. Corrosion Resistance: Dense films protect against harsh environments (e.g., marine or automotive).

Applied Industries

• Tooling & Molds: Cutting tools, punches, and dies.
• Automotive: Engine components and decorative trim.

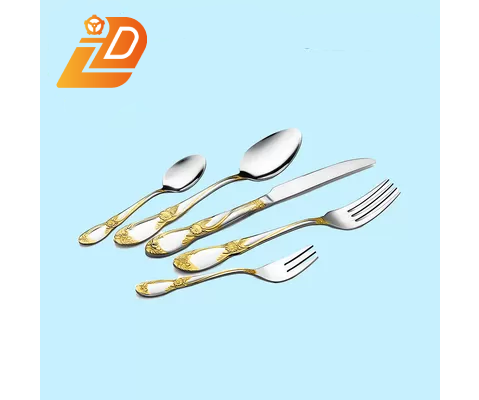

• Jewelry & Watches: Durable, scratch-resistant gold or black finishes.
• Medical: Sterile, biocompatible coatings for surgical instruments .

Coating Effects & Colors

• Surface Finishes: Mirror-like metallic lusters or matte textures.
• Color Options: Gold (TiN), black (CrN), blue (TiAlN), and rainbow gradients.

Structure Types

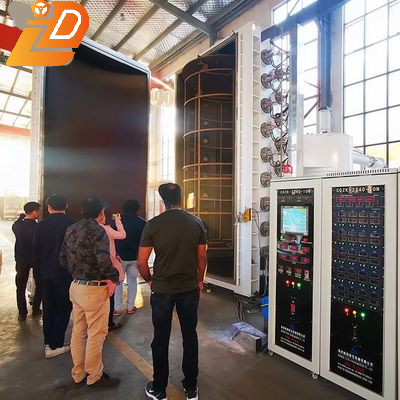

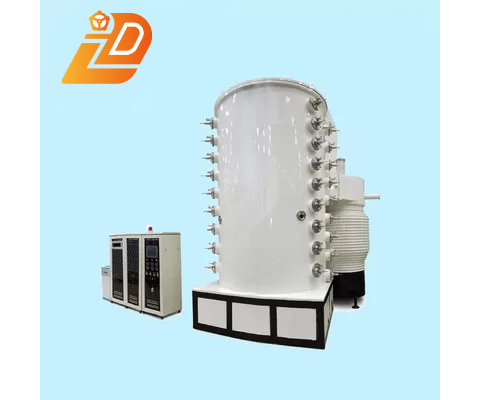

• Vertical Chamber: Optimized for batch processing of small parts.
• Horizontal Chamber: Suitable for large-scale deposition on flat or cylindrical substrates.

Substrate Materials

• Metals (stainless steel, aluminum), ceramics, and hard plastics.

Coating Materials

• Metals: Ti, Cr, Zr, Al.
• Nitrides: TiN, CrN, ZrN.
• Carbides: WC, TiC.

Supporting Production Lines

• Integrates with pre-coating cleaning systems (e.g., ultrasonic baths) and post-coating heat treatment.

Consumables

• Target rods (Ti, Cr, etc.), reactive gases (N₂, O₂), and cooling water.

Applications

• Cutting Tools: TiAlN coatings for high-speed machining.

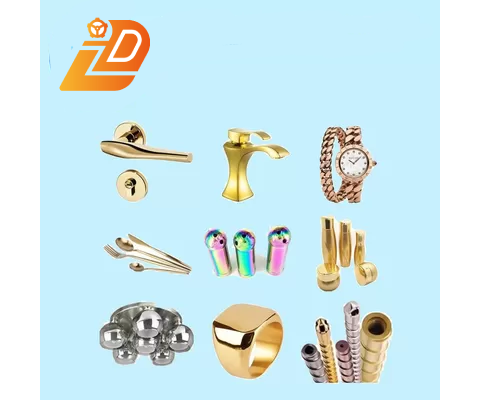

• Decorative Hardware: Door handles and faucets with corrosion-resistant finishes.
• Aerospace: High-temperature coatings on engine components.

Customization

Packaging and delivery

Packaging Details

plastic film cover,wooden box,high cube export standard packing container for PVD vacuum used stainless steel sheet vacuum coating machine.

Port of dispatch

Guangdong

Selling Units

Single item

Single package size

60X20X25 cm

Single gross weight

20.000 KG

Packaging examples
