Specifications
Brand Name :
unitedwin
Model Number :
UW-F03 120
Place of Origin :
China
MOQ :
1 set
Price :
USD
Name :
Super clear slitting machine
model :
UW-F03 120-16
Effective Width(mm) :
1600.9
Max. unwinding dia.(mm) :
Ø800
Max. rewinding dia.(mm) :
Ø150.9
Rewinding shaft dia.(mm) :
φ76(3”)
Mechanical speed(m/min) :
150.9
Total power (kw) :
6
Dimension(LxWxH)(mm) :
2800*2800*1400
Warranty :
1 Year
Description

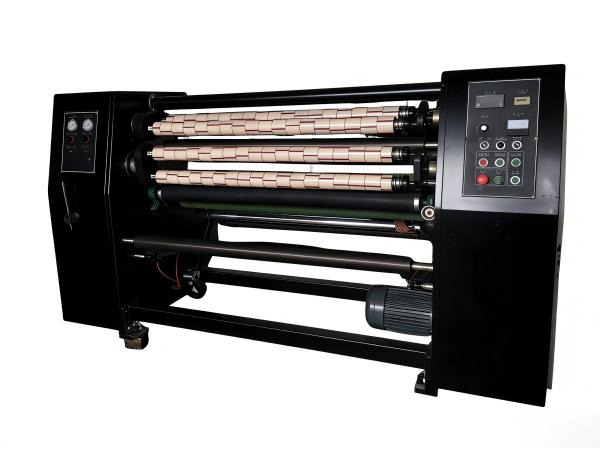

Super Clear Pneumatic Tape Slitting Machine Consistent Slitting Continuous Running for OPP Soundless Tape

Features:

Super Clear Pneumatic Tape Slitting Machine with Consistent Slitting and Continuous Running for OPP Soundless Tape is a high-efficiency adhesive tape converting solution designed for stable, long-time operation and premium cutting quality. Specially developed for super clear and soundless OPP tape, this machine ensures uniform width, smooth edges, and excellent transparency, making it an ideal choice for manufacturers focused on productivity, reliability, and consistent output quality.

In terms of technical process, the machine adopts an advanced pneumatic slitting system that provides stable and uniform cutting pressure. This pneumatic structure effectively reduces blade vibration and cutting deviation, ensuring consistent slitting accuracy even during continuous high-speed operation. Combined with a precision transmission and tension control system, the machine achieves smooth unwinding, accurate slitting, and stable rewinding, preventing common issues such as uneven edges, wrinkles, or telescoping in OPP soundless tape production.

Regarding application fields, this pneumatic tape slitting machine is widely used in super clear OPP soundless tape manufacturing, packaging tape production, stationery tape processing, and industrial adhesive tape converting. It is suitable for pressure-sensitive adhesive tapes that require low noise performance, high surface clarity, and stable roll formation. The machine supports continuous running for mass production, helping factories improve efficiency and reduce downtime.

For service and quality control, the equipment is manufactured under a strict quality management system. Key pneumatic and mechanical components are carefully selected and tested to ensure durability and long service life. Each machine undergoes comprehensive pre-delivery testing, including slitting consistency, continuous running stability, rewinding quality, and safety performance. Professional technical support and after-sales service are provided to assist with installation, operation, and maintenance.

In terms of product parameters, the machine features adjustable slitting width, stable operating speed, pneumatic knife system, and an easy-to-use control interface. The modular design allows convenient maintenance and quick blade replacement, reducing labor intensity and production interruption. Multiple safety protection devices ensure safe and reliable operation.

The core functions include pneumatic precision slitting, consistent cutting quality, smooth and stable rewinding, continuous running capability, and low-noise processing. With high efficiency, stable performance, and strong adaptability, this Super Clear Pneumatic Tape Slitting Machine is an SEO-optimized and cost-effective solution for OPP soundless tape manufacturers seeking long-term reliable production and enhanced market competitiveness.

Technical parameters:

Model F03 120-13 F03 120-16
Effective Width (mm) 1300 1600
Max. unwinding dia.(mm) Φ800 Ø800
Max. rewinding dia.(mm) Ø150 Ø150
Rewinding shaft dia.(mm) Ø76(3”) Ø76(3”)
Mechanical speed(m/min) 150 150
Total power (kw) 4.5 6
Dimension(LxWxH)(mm) 2800*2500*1400 2800*2800*1400

Application:

Suitable for slitting and rewinding OPP soundless super clear tapes.

Pneumatic Consistent Slitting Tape Slitter Continuous RunningPneumatic Consistent Slitting Tape Slitter Continuous Running

Company Information:

Pneumatic Consistent Slitting Tape Slitter Continuous Running

FAQ:

1. Are you a factory?
Yes, our company was established in 1998. It is the only comprehensive manufacturing enterprise in China produce both tape and
tape machine.


2. Can I get some tape samples for testing before placing order?
Yes,we can provide you some free samples for your reference.


3. How long is the delivery time for your tape?
The first order is 15 days after deposit,then other orders are about 7-10 days after deposit.

4. How could I get the quotation?
Tape: Please let me know the specification(thickness,width,length),quantity,application and other requirements according to your
needs so that we can provide an accurate quotation.

Machine: please provide the type of machine required and other special requirements.

5. Do you control the items quality?

Each machine strictly tested one by one before shipping.

6. How long is the delivery time for your machine?
After deposit is about 30 days.

7. What is quality guarantee policy?
12 months guarantee for all goods from our company, but we do not accept any broken by man.

8. When we receive the box, find any items missing or defective, how should we do?

Please contact us ASAP, we will check and give you best solution soon.
