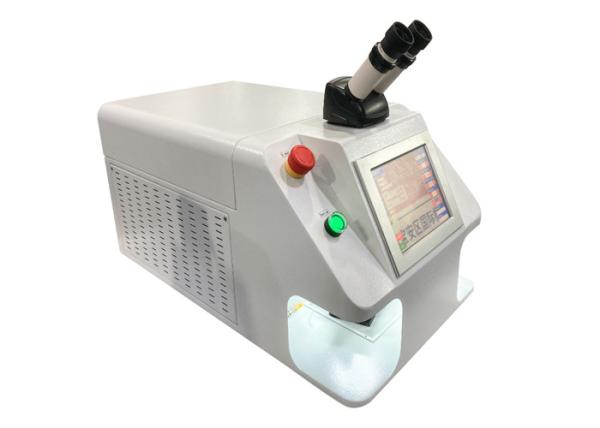

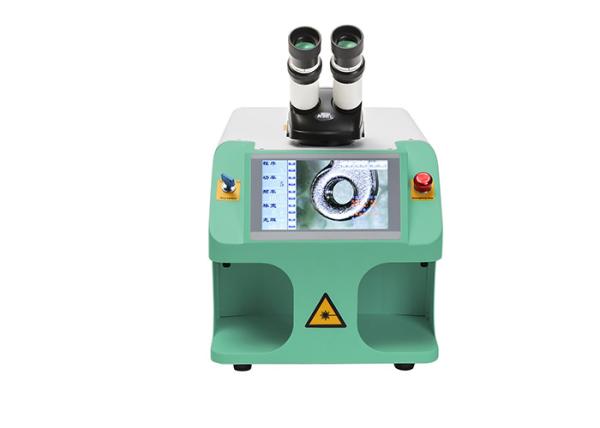

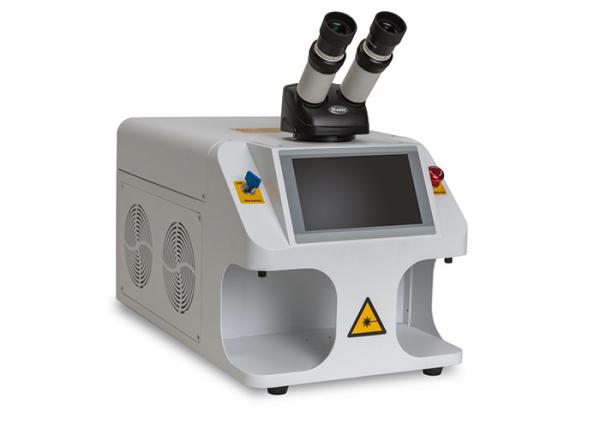

60W Jewelry Laser Welding Machine
60W Jewelry Laser Welding Machine
60W Jewelry Laser Welding Machine
60W Jewelry Laser Welding Machine
60W Jewelry Laser Welding Machine
60W Jewelry Laser Welding Machine
Specifications
Brand Name :
Maxwave
Model Number :
MW-JW200W
Certification :
CE,SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
20000/Per Year
Delivery Time :
5-8 working days
Packaging Details :
Wooden Case
Cooling mode :
Water-cooling and protection system
Application :
Laser Engraving
Cnc or not :
Yes
Usage :
Jewelry welding
Power :
200W 60W
Max. Welding Thickness :
0.5mm-ss
Observation :
CCD+Microscope (combined)
Description

60W Jewelry Laser Welding Machine

Main Features:

1. All accessories of the mini jewelry laser welder using high technology integrated technology, stable and functional.

2. The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects.

3. Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.

4. It is able to work 24 hours continuously, stable performance

5. Human-based design accords with ergonomics, no fatigue after long time working.

Product Data:

Machine Mini Jewelry laser welding machine
Power Supply AC220V / 50Hz
Pulse Width 1.00-10.0 Hz
Pulse Width 0.1-10.0ms
Spot Size 0.1- 3.0mm
Power 60w
Pulse Energy 45J
Power Consumption 2Kw
Working Temperature 30℃
Cooling method Water Cooling
Operation method Touch control panel
Wavelength 1064nm
Machine Dimension 510*295mm*395mm
Net Weight 28KG

60W Jewelry Laser Welding Machine60W Jewelry Laser Welding Machine
