200W COB Pcb Good Quality Seamless Splicing Module UV 3D Digital Printing Machines Lamp
200W COB Pcb Good Quality Seamless Splicing Module UV 3D Digital Printing Machines Lamp
200W COB Pcb Good Quality Seamless Splicing Module UV 3D Digital Printing Machines Lamp
200W COB Pcb Good Quality Seamless Splicing Module UV 3D Digital Printing Machines Lamp
200W COB Pcb Good Quality Seamless Splicing Module UV 3D Digital Printing Machines Lamp
200W COB Pcb Good Quality Seamless Splicing Module UV 3D Digital Printing Machines Lamp
Specifications
Brand Name :
YM
Model Number :
UV LED Module 7828
Certification :
High-tech Enterprise Certificate
Place of Origin :
CHINA
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
7-10 work days
Packaging Details :
Carton
Product Name :
UV LED Module 200W-7828
Power :
200W
Module Size :
78mm*28mm*2.0mm
Luminous Size :
78mm*15mm
Voltage :
78-87V
Current :
2-2.8A
LED Chips :
LG/Epileds/ Seoul (Optional)
Encapsulation process :
High temperature quartz lens package
View Angle of the Lens :
30, 60, 120 degree
Warranty :
1 Year
Description

200W-7828 UV LED Module Advantages

  • UV dryers take up less space, so shops can utilize more revenue-producing equipment
  • UV uses less energy, therefore significantly cutting operating costs
  • UV ink goes farther than solvent-based ink (up to 60 percent per gallon)
  • UV curing can increase throughput four times over solvent-based processes
  • Clean-up time practically disappears, adding to the time available for production
  • UV technology doesn't pollute, inside or outside the shop, which means healthier employees, and a healthier, "greener" environment

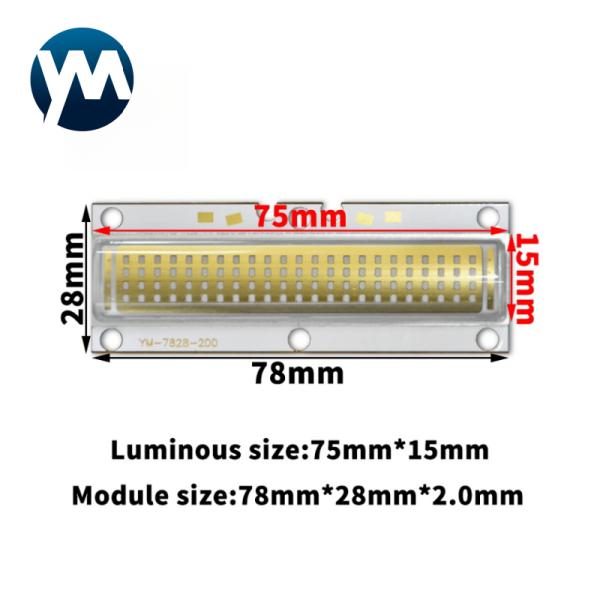

Product Name UV LED Module 200W-7828
Power 200W
Color UV
Number of lamp beads 92 pcs
Diode type cob smd
Lens Material of Diode Quartz lens
View Angle of the Lens 60 degree
Module size 78mm*28mm*2.0mm
Luminous Size 75mm*11mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 78-87V
Current 2-2.8A
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package
Module material 2.0mm Copper substrate
Lifespan (hours) 15000
Warranty 1 year
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China

200W COB Pcb Good Quality Seamless Splicing Module UV 3D Digital Printing Machines Lamp

About US
Shenzhen Yuanming Technology Co., Ltd. specializes in the production and operation of high-power
UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
products. The product power range is from 0.5W to 10000W. Mainly used for flexographic printing
machines, printing machines, pad printing machines, screen printing machines, offset printing machines,
coating machines, exposure machine, inkjet printing machine, coating, leather, glass, metal, furniture,
car paint detection, fluorescence detection, pet urine detection,PCB and other UVink Photocuring.
200W COB Pcb Good Quality Seamless Splicing Module UV 3D Digital Printing Machines Lamp
Application of UV Led Curing System

Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry,

furniture industry, etc.

It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers

includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.

200W COB Pcb Good Quality Seamless Splicing Module UV 3D Digital Printing Machines Lamp
FAQ

Q1 : Can your products’ label, packaging, design be customized?

Yes, we offer customization service on these.

Q2: Do all of current UV chemicals work well with UV LED?

No, The chemical must be specifically to take advantage of the narrow Wavelength,

please ask for your supplier for the best wavelength, and then we can customized the most suitable and high-efficiency wavelength for you.

Q3:What is your main products?

A3:UV LED Lamp Bead; UV LED Module; UV LED Single Light.etc.

Q4: Any certificates for your products?

All our products do have CE, ROHS certificates.

Q5: Do you support OEM/ODM service?

Yes, we do have professional R&D team to offer OEM/ODM service.

Q6 : What are your terms of payment?

T/T,D/P D/A,Credit card,PayPal.We accept multiple payment methods.

If you have other needs, please contact us to provide you with the best solution.

Umi@ymleduv.com , Thank you for your attention.
