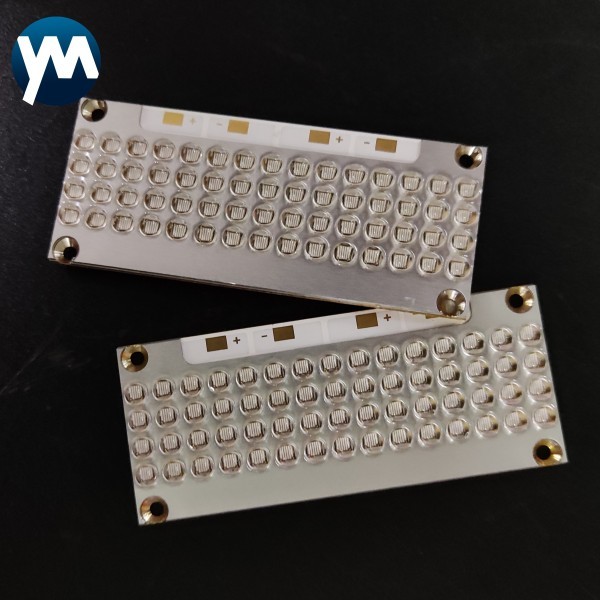

uv curing cob 180W PCB Module led chip 365nm 395nm uv led module manufacturer
uv curing cob 180W PCB Module led chip 365nm 395nm uv led module manufacturer
uv curing cob 180W PCB Module led chip 365nm 395nm uv led module manufacturer
uv curing cob 180W PCB Module led chip 365nm 395nm uv led module manufacturer
uv curing cob 180W PCB Module led chip 365nm 395nm uv led module manufacturer
uv curing cob 180W PCB Module led chip 365nm 395nm uv led module manufacturer
Specifications
Brand Name :
YM
Model Number :
YM-180W-6126
Certification :
High-tech Enterprise Certificate
Place of Origin :
CHINA
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
7-10 work days
Packaging Details :
Carton
Product Name :
UV Light Module
Power :
180W
Module Size :
61mm*26mm*2.0mm
Luminous Size :
61mm*15mm
Diode type :
60 pcs cob
Voltage :
34-38V*2
Current :
1.5-2.1A*2
Lifespan :
10000h
Material :
Aluminum Alloy
Product Type :
(10 series 3 parallel)*2
Application :
Uv Printer
Hs Code :
8543909000
LED Angle :
30°/45°/60°/90° /120°/180°
Encapsulation Process :
High temperature quartz lens package
Color Temperature :
Purple
Led Chips :
LG/Epileds/ Seoul
Description

Advantage

1. The energy saving effect is remarkable, up to 90%.

2. Long service life: more than 20,000 hours.

3. Eco-friendly: RoHS compliant, mercury-free.

4. We support OEM and ODM service to customized.

5. Every product has a professional test before shipment.

6. Our product power ranges from 0.5W to 1,000W.

7. We are a manufacturer and have our own factory.

Product Name YM-180W-6126 UV LED MODULE
Power 180W
Color UV
Number of lamp beads 60 pcs
Diode type 3535 cob
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 30°/45°/60°/90° /120°/180°
Module size 61mm*26mm*2.0mm
Luminous Size 61mm*15mm
Series-parallel 10 series 3 parallel *2

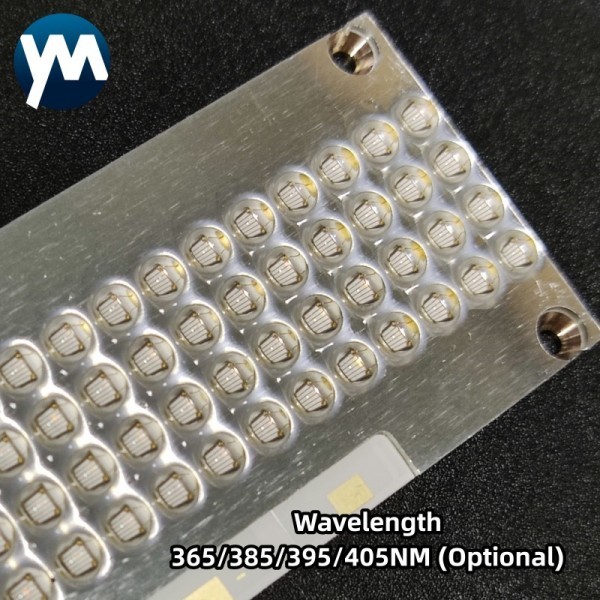

Wavelength 365nm, 385nm, 395nm, 405nm
Voltage 34-38V*2
Current 1.5-2.1A*2
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package module
Module material 2.0mm Copper substrate
Lifespan (hours) 10000
Warranty 1year
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China

Features and Benefits:

· User-friendly and intuitive to use

· Level Entry alternative to traditional curing procedures

· Outstanding Eco-Friendly LED Technology replaces Mercury and provides safer and more efficient results

· Cost-effective and energy-saving

· Available wavelengths ensure you get the right System for the work needed

· Adjustable Light Intensity

· Forced Air cooling ensures Extended LED Array's useful life

· Versatile application for precision projects

FAQ

Q1: Are you a factory?

A: Yes, we have our own factory in Longhua, Shenzhen. And our trading department and warehouse is located in Guanlan Distrist, Shenzhen, if you have time come China, welcome your visisting!

Q2: Could you please send me the sample, so that I could see and check its quality?

A: Yes. We can send you samples.

Q3: Can you accept OEM and ODM order?

A: Yes. We are able to complete your OEM and ODM orders. We have large quantities of led products in stock for normal models. For special models, it will takes some time to customize them.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx . It usually takes 3-7 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

uv curing cob 180W PCB Module led chip 365nm 395nm uv led module manufactureruv curing cob 180W PCB Module led chip 365nm 395nm uv led module manufacturer

If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
