200W Factory Customized flexo uv Air Cooled flatbed 395nm uv ink drying system
200W Factory Customized flexo uv Air Cooled flatbed 395nm uv ink drying system
200W Factory Customized flexo uv Air Cooled flatbed 395nm uv ink drying system
200W Factory Customized flexo uv Air Cooled flatbed 395nm uv ink drying system
200W Factory Customized flexo uv Air Cooled flatbed 395nm uv ink drying system
200W Factory Customized flexo uv Air Cooled flatbed 395nm uv ink drying system
Specifications
Brand Name :
YM
Model Number :
YM-15015-200W UV LED Air cooling
Certification :
High-tech Enterprise Certificate
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
7-10 work days
Packaging Details :
Carton
Product Name: :
YM-15015-200W UV LED Air cooling
Power :
200W
Product size :
165*50*100mm
Luminous Size :
150*15mm
Chip Brand :
6565/6868 smd
Cooling Mode :
Air cooling
Emitting color :
UV
Warranty :
1 year
Curing Speed :
Adjustable
Wavelength :
365nm/385nm/395nm/405nm
Led Chips :
LG Uv Led
Packaging Material :
Paper, Metal, Glass, Wood
Control Mode :
Manual, Automatic
Description

Advantages

  • long life: the service life is more than 10 times that of the traditional lamp machine.
  • cold light source, no heat radiation, the surface temperature of the illuminated product is low, solving the traditional heat injury problem. Particularly suitable for LCD edge sealing, film printing, etc.
  • the heat is small, can solve the problem of large heat generation of traditional equipment.
  • Instant lighting, no need to preheat to instantly achieve 100% power UV output.
  • The service life is not affected by the number of opening and closing.

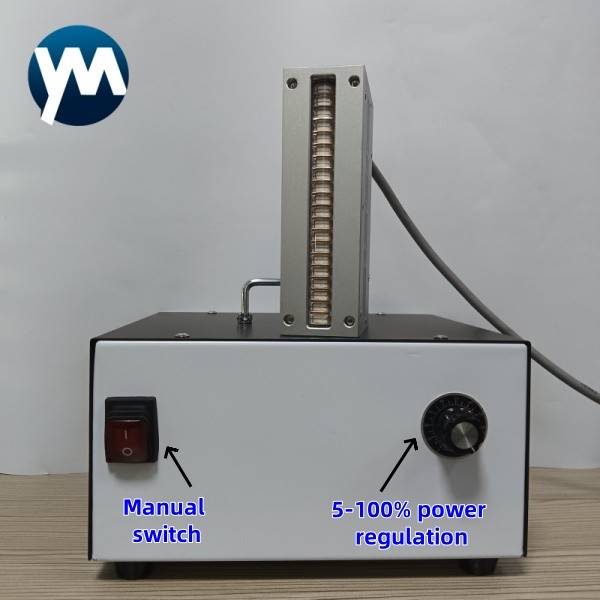

Description of 200W-15015 UV LED Air cooling LIGHT

Item

200W-15015 UV LED Air cooling LIGHT

Power

200W

Color

UV

Diode type

6565/6868 smd

Lens Material of Diode

quartz

View Angle of the Lens

60 degree

Product size

 165*50*100mm
Luminous Size 150*15mm

Wavelength

365nm,385nm,395nm,405nm

Chip Material

 LG,Seoul,Epileds

Encapsulation process

1.5mm High temperature quartz lens package
Application Apply in various UV glue, ink, paint, silk screen, inkjet, offset printing.

Place of Origin

Shenzhen, Guangdong, China

Applications:

Use range: Applicable to all kinds of UV shadowless glue, UV ink, UV green oil, UV coating, row line reinforcement, solder joint

protection, touch screen, OCA optical adhesive Photopolymer exposure, flexible plate making, screen printing, UV epoxy resin

adhesive, 3D printing photosensitive resin adhesive, UV three-proof paint, UV varnish, etc. Imported UV LED chip, close range

curing only 3 seconds, the longest distance curing up to 1 meter, portable purple light, convenient and practical, that is, open

and use, no heat radiation, safe and environmentally friendly.


200W Factory Customized flexo uv Air Cooled flatbed 395nm uv ink drying system

FAQ

Q1. What's the whole UV LED curing system including?

A1: The whole UV LED curing system including UV LED Curing Controller and UV LED Lamp head.


Q2. Can I use my own PLC and Electric cabinet?
A2: Yes, of coures. Our UV LED driver provide RS485 communication.


Q3.How to proceed an order for UV LED curing system?

A3: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q4. Is it OK to print my logo on UV LED curing system?

A4: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q5.Do you offer guarantee and installation service for the products?
A5: Yes, we offer 15000HRS service and 1 year free warranty. The installation service can provided but should be payed

according different country and different system.

If you have other needs, please contact us to provide you with the best solution.

Umi@ymleduv.com , Thank you for your attention.
