100W Customize Led Sign UV ink curing Uv Light Chips Uv Curing Lamp 405nm UV Module 365nm
100W Customize Led Sign UV ink curing Uv Light Chips Uv Curing Lamp 405nm UV Module 365nm
100W Customize Led Sign UV ink curing Uv Light Chips Uv Curing Lamp 405nm UV Module 365nm
100W Customize Led Sign UV ink curing Uv Light Chips Uv Curing Lamp 405nm UV Module 365nm
100W Customize Led Sign UV ink curing Uv Light Chips Uv Curing Lamp 405nm UV Module 365nm
100W Customize Led Sign UV ink curing Uv Light Chips Uv Curing Lamp 405nm UV Module 365nm
Specifications
Brand Name :
YM
Model Number :
YM-K33-21020 UV LED MODULE
Certification :
High-tech Enterprise Certificate
Place of Origin :
CHINA
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
7-10 work days
Packaging Details :
Carton
Product Name :
YM-K33-21020 UV LED MODULE
Power :
100W
Module Size :
210*20*2mm
Luminous Size :
198*20mm
Voltage :
37.4-41.8V
Current :
1.5-2.1A
LED Chips :
Epileds/ LG /Seoul
Encapsulation process :
High temperature quartz lens package module
View Angle of the Lens :
60 degree
Warranty :
1 Year
Description

Features and Benefits:

  • User-friendly and intuitive to use
  • Level Entry alternative to traditional curing procedures
  • Outstanding Eco-Friendly LED Technology replaces Mercury and provides safer and more efficient results
  • Cost-effective and energy-saving
  • Available wavelengths ensure you get the right System for the work needed
  • Adjustable Light Intensity
  • Forced Air cooling ensures Extended LED Array's useful life
  • Versatile application for precision projects

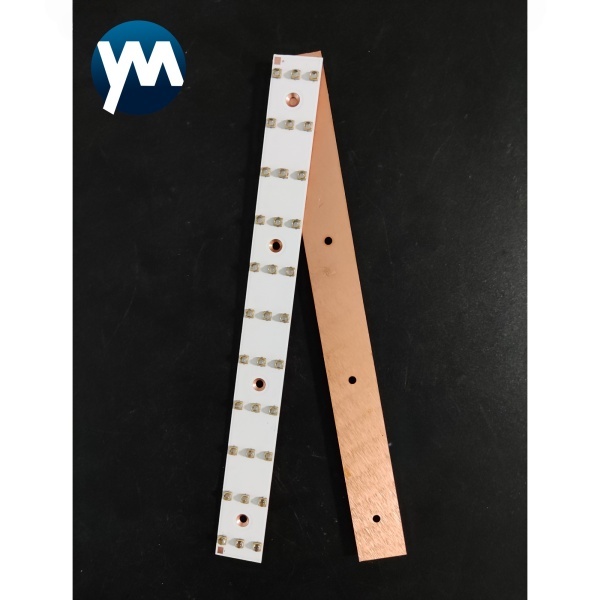

100W UV Led Module Product Description

Product Name YM-K33-21020 UV LED MODULE
Power 100W
Color UV
Number of lamp beads 33 pcs
Diode type 3535 smd
Lens Material of Diode Quartz
View Angle of the Lens 60 degree
Module size 210mm*20mm*2mm
Luminous Size 198mm*20mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 37.4-41.8V
Current 1.5-2.1A
Chip Material Seoul,LG,Epileds
Encapsulation process High temperature quartz lens package module lamp
Module material 2.0mm Copper substrate
Lifespan (hours) 15000
Warranty 1 year
Application Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens.
Place of Origin Shenzhen, Guangdong, China

100W Customize Led Sign UV ink curing Uv Light Chips Uv Curing Lamp 405nm UV Module 365nm

About US
Shenzhen Yuanming Technology Co., Ltd. specializes in the production and operation of high-power
UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
products. The product power range is from 0.5W to 10000W. Mainly used for flexographic printing
machines, printing machines, pad printing machines, screen printing machines, offset printing machines,
coating machines, exposure machine, inkjet printing machine, coating, leather, glass, metal, furniture,
car paint detection, fluorescence detection, pet urine detection,PCB and other UVink Photocuring.
100W Customize Led Sign UV ink curing Uv Light Chips Uv Curing Lamp 405nm UV Module 365nm
Application of UV Led Curing System

Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry,

furniture industry, etc.

It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers

includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.

100W Customize Led Sign UV ink curing Uv Light Chips Uv Curing Lamp 405nm UV Module 365nm

FAQ

Q1:Do you have your own factory?

A1:Yes! We have our own factory in Shenzhen. We have been producing UV LED product since 2015.

Q2: Do all of current UV chemicals work well with UV LED?

A2: No, The chemical must be specifically to take advantage of the narrow Wavelength,

please ask for your supplier for the best wavelength, and then we can customized the most suitable and high-efficiency wavelength for you.

Q3:What is your main products?

A3:UV LED Lamp Bead; UV LED Module; UV LED Single Light.etc.

Q4: How to place an order?

A4: You can check the shipping cost and discount information online, and place order directly on FOREIGN TRADE PLATFORM.

Or you can contact us for the order details, we will reply you in mins.

Q5:What is your usual payment terms for orders?

A5:T/T,D/P D/A,Credit card,PayPal.We accept multiple payment methods.

Q6:How long does it take for my order to be shipped?

A6:It usually takes 3-7 days, depending on the quantity.

If you have other needs, please contact us to provide you with the best solution.
