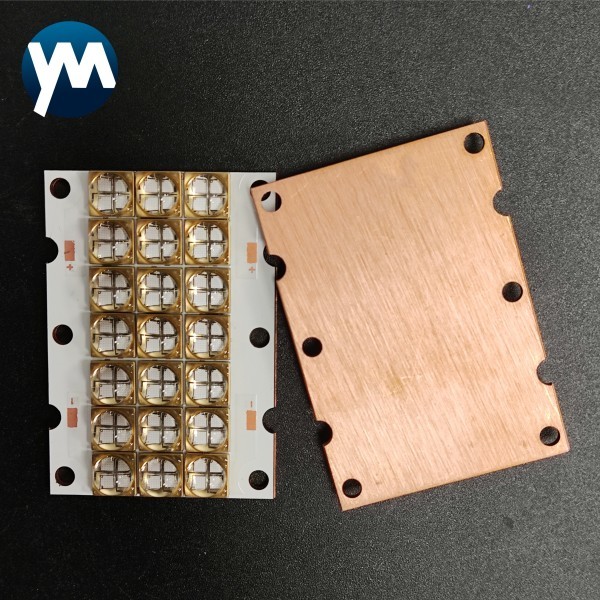

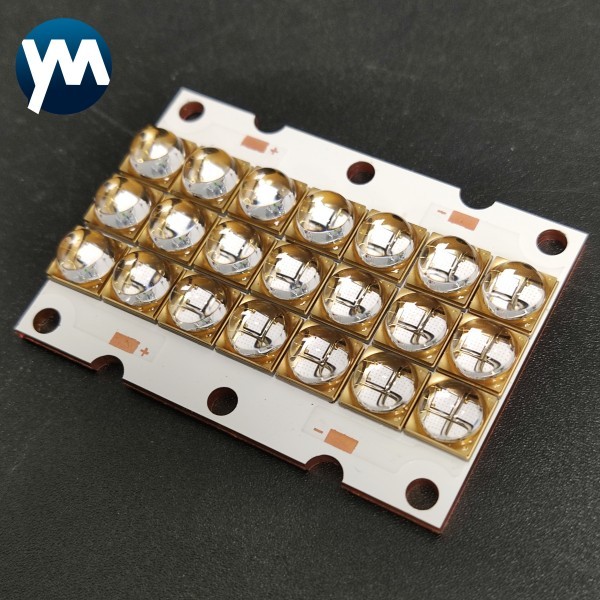

210W Uv Led Module Manufacturer PCB Uv Led Lamp For Uv Dryer Printer Ink 365nm
210W Uv Led Module Manufacturer PCB Uv Led Lamp For Uv Dryer Printer Ink 365nm
210W Uv Led Module Manufacturer PCB Uv Led Lamp For Uv Dryer Printer Ink 365nm
210W Uv Led Module Manufacturer PCB Uv Led Lamp For Uv Dryer Printer Ink 365nm
210W Uv Led Module Manufacturer PCB Uv Led Lamp For Uv Dryer Printer Ink 365nm
210W Uv Led Module Manufacturer PCB Uv Led Lamp For Uv Dryer Printer Ink 365nm
Specifications
Brand Name :
YM
Model Number :
210W-5035 UV LED Module
Certification :
High-tech Enterprise Certificate
Place of Origin :
CHINA
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
7-10 work days
Packaging Details :
Carton
Product Name: :
210W-5035 UV LED Module
Power :
210W
Module Size :
50mm*35mm*2.0mm
Luminous Size :
50mm*20mm
Voltage :
45.5-52.5V
Current :
3-4.2A
LED Chips :
Optional(LG/Epileds/ Seoul)
Encapsulation process :
High temperature quartz lens package
View Angle of the Lens :
60 degree
Warranty :
1 Year
Description

Advantage of ultraviolet curing technology

  • UV dryers take up less space, so shops can utilize more revenue-producing equipment
  • UV uses less energy, therefore significantly cutting operating costs
  • UV ink goes farther than solvent-based ink (up to 60 percent per gallon)
  • UV curing can increase throughput four times over solvent-based processes
  • Clean-up time practically disappears, adding to the time available for production
  • UV technology doesn't pollute, inside or outside the shop, which means healthier employees, and a healthier, "greener" environment

Item

210W-5035 UV LED Module

Power

210W

Color

UV
Number of lamp beads 21 pcs

Diode type

6868/6565 smd

Lens Material of Diode

Quartz

View Angle of the Lens

30, 60, 120 degree

Module size

 50mm*35mm*2.0mm
Luminous Size 50mm*20mm

Wavelength

365nm,385nm,395nm,405nm

Voltage

45.5-52.5V

Current

3-4.2A

Chip Material

 LG,Seoul,Epileds

Encapsulation process

High temperature quartz lens package

Lifespan (hours)

20000

Warranty

1 year
Application Apply in various UV glue, ink, paint, silk screen, inkjet, offset printing.

Place of Origin

Shenzhen, Guangdong, China

FAQ

Q1. Can all the products be customized?

A: We are the factory of making UV lamp,UV accessories,UV curing system.All the our products can be made by the details you provide.

Q2. What is the outer package of the product?

A: We use very strong export-specific carton packaging and wooden box packaging to ensure that the goods can be safely delivered to customers.

Q3.What's the whole UV LED curing system including?
A: The whole UV LED curing system including UV LED Curing Controller + UV LED Lamp head.

Q4.Can I use my own PLC and Electric cabinet?
A: Yes, of coures. Our UV LED driver provide RS485 communication.

Q5.How to proceed an order for UV LED curing system?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

About US

Shenzhen Yuanming Technology Co., Ltd. is specialized in the production

and operation of high-power UV LED violet curing light source products for over 11 years.

Our products are widely used for banknote inspection, testing, printing,UV shadow less curing,ink curing, paint curing

and more. Our main products are UV LED; UV LED Module; UV LED Curing Head.

YM's UV LED curing technology provides a ideal choice for the curing of digital ,

silk screen , flexography, offset printing , coating and other printing inks .

we devote ourselves to UV LED business,and advancing greener , cheaper and high efficient ink curing technology as well .

210W Uv Led Module Manufacturer PCB Uv Led Lamp For Uv Dryer Printer Ink 365nm210W Uv Led Module Manufacturer PCB Uv Led Lamp For Uv Dryer Printer Ink 365nm
If you have other needs, please contact us to provide you with the best solution.
Thank you for your attention.
