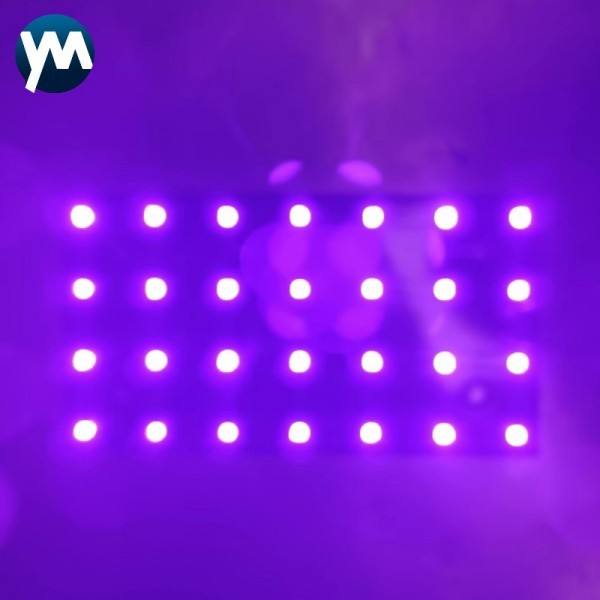

80W High Power 405nm UV parallel light source for STEK 3D LCD 5.5/6/8.9 inch 3D printer Photosensitive resin curing LED X-CUBE
80W High Power 405nm UV parallel light source for STEK 3D LCD 5.5/6/8.9 inch 3D printer Photosensitive resin curing LED X-CUBE
80W High Power 405nm UV parallel light source for STEK 3D LCD 5.5/6/8.9 inch 3D printer Photosensitive resin curing LED X-CUBE
80W High Power 405nm UV parallel light source for STEK 3D LCD 5.5/6/8.9 inch 3D printer Photosensitive resin curing LED X-CUBE
80W High Power 405nm UV parallel light source for STEK 3D LCD 5.5/6/8.9 inch 3D printer Photosensitive resin curing LED X-CUBE
80W High Power 405nm UV parallel light source for STEK 3D LCD 5.5/6/8.9 inch 3D printer Photosensitive resin curing LED X-CUBE
Specifications
Brand Name :
YM
Model Number :
YM-K28-12971 UV LED Module
Certification :
High-tech Enterprise Certificate
Place of Origin :
CHINA
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
7-10 work days
Packaging Details :
Carton
Product Name :
YM-K28-12971 UV LED Module
Power :
80W
Module Size :
129mm*71mm*2.0mm
Luminous size :
125mm*66mm
Voltage :
24-27V
Current :
2-2.8A
LED Chips :
Epileds/ LG /Seoul
Encapsulation process :
High temperature quartz lens package module
View Angle of the Lens :
60 degree
Warranty :
1 Year
Description

80W Features and Benefits:

1. Stable output, high uniformity.
2. Multiple control modes : Constant current, pedal control, intelligent optical and manual modes

damage problem in optical communication and LCD production.

3: Photoelectric induction, instant on/off, no preheating required.

4. Instantly lit up, achieving 100 power ultraviolet output without preheating.

5. The service life is not affected by the number of opening and closing times.

80W UV Led Module Product Description

Product Name YM-K28-12971 UV LED Module
Power 80W
Color UV
Number of lamp beads 28 pcs
Diode type 3535 smd
Lens Material of Diode Quartz
View Angle of the Lens 60 degree
Module size 129mm*71mm*2.0mm
Luminous size 125mm*66mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 24-27V
Current 2-2.8A
Chip Material Seoul,LG,Epileds
Encapsulation process High temperature quartz lens package module lamp
Module material 2.0mm Copper substrate
Lifespan (hours) 15000
Warranty 1 year
Application Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens.
Place of Origin Shenzhen, Guangdong, China

80W High Power 405nm UV parallel light source for STEK 3D LCD 5.5/6/8.9 inch 3D printer Photosensitive resin curing LED X-CUBE

About US
Shenzhen YM Technology Co., Ltd. specializes in the production and operation of high-power
UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
products. The product power range is from 0.5W to 10000W. Mainly used for flexographic printing
machines, printing machines, pad printing machines, screen printing machines, offset printing machines,
coating machines, exposure machine, inkjet printing machine, coating, leather, glass, metal, furniture,
car paint detection, fluorescence detection, pet urine detection,PCB and other UVink Photocuring.
80W High Power 405nm UV parallel light source for STEK 3D LCD 5.5/6/8.9 inch 3D printer Photosensitive resin curing LED X-CUBE
Application of UV Led Curing System

Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry,

furniture industry, etc.

It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers

includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.

80W High Power 405nm UV parallel light source for STEK 3D LCD 5.5/6/8.9 inch 3D printer Photosensitive resin curing LED X-CUBE

FAQ

Q1. Are you a factory?

A:Yes! We are factory in Shenzhen. We have been producing UV LED products for six years.

Q2. What's the wavelength of the UV LED lamp?

A: The wavelength of UV LED lamp usually are 365-405nm.The wavelength for inkjet printer is 395nm, 385/395nm for printing machine, 365nm for UV glue.

Q3. What's your LED chip?

A: We use are Korea LG, Seoul, Taiwna Epileds about the LED chip brand

Q4. What's the materials of the lamp and lens?

A: The materials of lamp is Aluminum,and the lens are quartz.

Q5.What's the cooling way?

A: Most of UVLED are water cooling. We also have several hot selling air cooling UVLED, more air cooling UV LED are on the way.

If you have other needs, please contact us to provide you with the best solution.

Umi@ymleduv.com , Thank you for your attention.
