100W Customize Led Sign Car Paint Inspection Uv Light Chips Uv Curing Lamp 405nm UV LED Lamp Module 365nm
100W Customize Led Sign Car Paint Inspection Uv Light Chips Uv Curing Lamp 405nm UV LED Lamp Module 365nm
100W Customize Led Sign Car Paint Inspection Uv Light Chips Uv Curing Lamp 405nm UV LED Lamp Module 365nm
100W Customize Led Sign Car Paint Inspection Uv Light Chips Uv Curing Lamp 405nm UV LED Lamp Module 365nm
100W Customize Led Sign Car Paint Inspection Uv Light Chips Uv Curing Lamp 405nm UV LED Lamp Module 365nm
100W Customize Led Sign Car Paint Inspection Uv Light Chips Uv Curing Lamp 405nm UV LED Lamp Module 365nm
Specifications
Brand Name :
YM
Model Number :
YM-K33-21020 UV LED MODULE
Certification :
High-tech Enterprise Certificate
Place of Origin :
CHINA
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
7-10 work days
Packaging Details :
Carton
Product Name :
YM-K33-21020 UV LED MODULE
Power :
100W

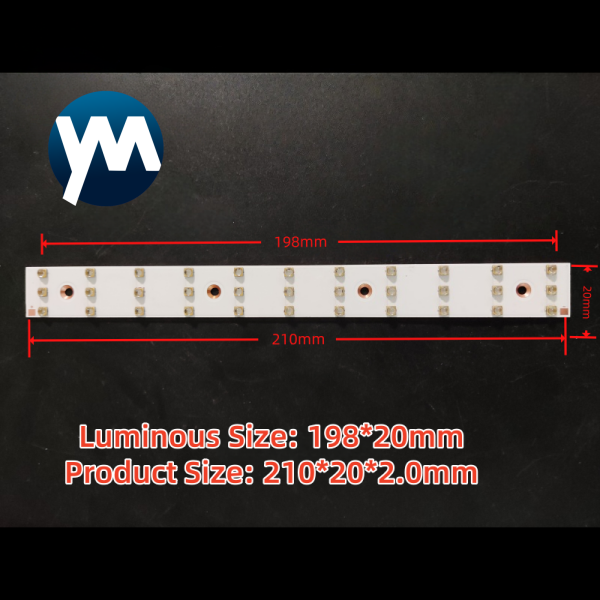

Module Size :
210*20*2mm
Luminous Size :
198*20mm
Voltage :
37.4-41.8V
Current :
1.5-2.1A
LED Chips :
Epileds/ LG /Seoul
Encapsulation process :
High temperature quartz lens package module
View Angle of the Lens :
60 degree
Warranty :
1 Year
Description

Features and Benefits:

1. Long-life: The service life is more than 10 times that of traditional mercury lamp curing machines, about 15000 hours.

2. Cold light source: no thermal radiation, low surface temperature rise of the illuminated object, solving the long-term thermal

damage problem in optical communication and LCD production.

3. Low heat generation: can solve the problem of high heat generation in mercury lamp printing equipment, which is difficult for

workers to tolerate.

4. Instantly lit up, achieving 100 power ultraviolet output without preheating.

5. The service life is not affected by the number of opening and closing times.

100W UV Led Module Product Description

Product Name YM-K33-21020 UV LED MODULE
Power 100W
Color UV
Number of lamp beads 33 pcs
Diode type 3535 smd
Lens Material of Diode Quartz
View Angle of the Lens 60 degree
Module size 210mm*20mm*2mm
Luminous Size 198mm*20mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 37.4-41.8V
Current 1.5-2.1A
Chip Material Seoul,LG,Epileds
Encapsulation process High temperature quartz lens package module lamp
Module material 2.0mm Copper substrate
Lifespan (hours) 15000
Warranty 1 year
Application Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens.
Place of Origin Shenzhen, Guangdong, China

100W Customize Led Sign Car Paint Inspection Uv Light Chips Uv Curing Lamp 405nm UV LED Lamp Module 365nm

About US
Shenzhen Yuanming Technology Co., Ltd. specializes in the production and operation of high-power
UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
products. The product power range is from 0.5W to 10000W. Mainly used for flexographic printing
machines, printing machines, pad printing machines, screen printing machines, offset printing machines,
coating machines, exposure machine, inkjet printing machine, coating, leather, glass, metal, furniture,
car paint detection, fluorescence detection, pet urine detection,PCB and other UVink Photocuring.
100W Customize Led Sign Car Paint Inspection Uv Light Chips Uv Curing Lamp 405nm UV LED Lamp Module 365nm
Application of UV Led Curing System

Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry,

furniture industry, etc.

It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers

includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.

100W Customize Led Sign Car Paint Inspection Uv Light Chips Uv Curing Lamp 405nm UV LED Lamp Module 365nm

FAQ

Q1:Do you have your own factory?

A1:Yes! We have our own factory in Shenzhen. We have been producing UV LED product since 2015.

Q2:Do you support OEM,ODM service?

A2: Yes! We support OEM / ODM service to customized.

Q3:What is your main products?

A3:UV LED Lamp Bead; UV LED Module; UV LED Single Light.etc.

Q4:Do you have any MOQ limit for led light order?

A4:No! One is also acceptable.

Q5:What is your usual payment terms for orders?

A5:T/T,D/P D/A,Credit card,PayPal.We accept multiple payment methods.

Q6:How long does it take for my order to be shipped?

A6:It usually takes 3-7 days, depending on the quantity.

If you have other needs, please contact us to provide you with the best solution.

Umi@ymleduv.com , Thank you for your attention.
