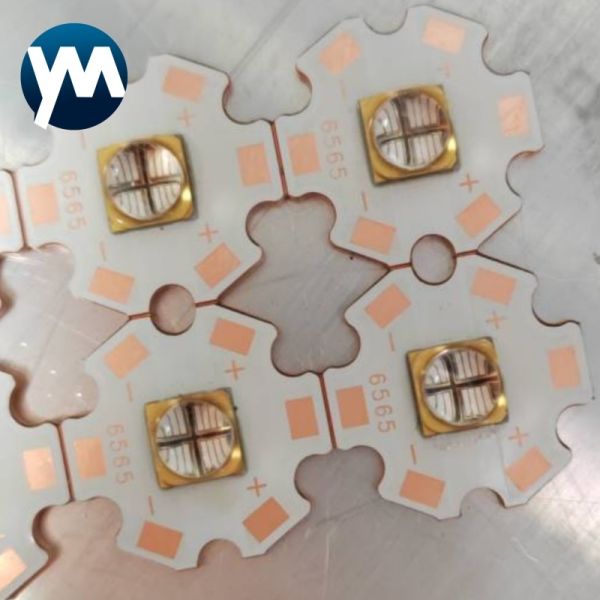

Custom Led Sign 3W 5W 10W UV LED 3535 6565 6868 SMD With Quartz Lens Chip UV LED Light Diode for Uv Ink Glue Printing
Custom Led Sign 3W 5W 10W UV LED 3535 6565 6868 SMD With Quartz Lens Chip UV LED Light Diode for Uv Ink Glue Printing
Custom Led Sign 3W 5W 10W UV LED 3535 6565 6868 SMD With Quartz Lens Chip UV LED Light Diode for Uv Ink Glue Printing
Custom Led Sign 3W 5W 10W UV LED 3535 6565 6868 SMD With Quartz Lens Chip UV LED Light Diode for Uv Ink Glue Printing
Custom Led Sign 3W 5W 10W UV LED 3535 6565 6868 SMD With Quartz Lens Chip UV LED Light Diode for Uv Ink Glue Printing
Custom Led Sign 3W 5W 10W UV LED 3535 6565 6868 SMD With Quartz Lens Chip UV LED Light Diode for Uv Ink Glue Printing
Specifications
Model Number :
YM-10W UV LED Chip
Beam Angle :
60 Degree
Price :
Negotiate
Power :
10W
Supply Ability :
10000 Pieces /per Month
Package :
Carton Box
Wavelength :
365/385/395/405nm(Optional)
Certification :
CE
Color Temperature :
Purple
Payment Terms :
T/T
Lifespan :
15,000hrs
MOQ :
Negotiate
Delivery Time :
10-15 work days
Current :
1-1.4A
Product Name :
UV LED SMD
Packaging Details :
Carton
Warranty :
1 Year
Place of Origin :
China
Voltage :
6.5-7.5V
Brand Name :
YM
Application :
ROSH
Description

YM-10W UV Quartz Flat Lens Chip Features and Benefits:

  • UV dryers take up less space, so shops can utilize more revenue-producing equipment
  • UV uses less energy, therefore significantly cutting operating costs
  • UV ink goes farther than solvent-based ink (up to 60 percent per gallon)
  • UV curing can increase throughput four times over solvent-based processes
  • Clean-up time practically disappears, adding to the time available for production
  • UV technology doesn't pollute, inside or outside the shop, which means healthier employees, and a healthier, "greener" environment
Item YM-10W UV LED Chip
Power 10W
Color UV
Diode type 6565 smd type
Lens Material of Diode quartz
View Angle of the Lens 60 degree
size 6.5mm*6.5mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 6.5-7.5V
Curent 1-1.4A
Chip Material LG,Seoul,Epileds
Welding temperature ≤220 degrees
Lifespan (hours) 15000
Warranty 1 year
Application Apply in various UV printing industries, painting, UV lnk,and UV glue.
Place of Origin Shenzhen, Guangdong, China

Custom Led Sign 3W 5W 10W UV LED 3535 6565 6868 SMD With Quartz Lens Chip UV LED Light Diode for Uv Ink Glue Printing

About US
Shenzhen YM Technology Co., Ltd. specializes in the production and operation of high-power
UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
products. The product power range is from 0.5W to 10000W. Mainly used for flexographic printing
machines, printing machines, pad printing machines, screen printing machines, offset printing machines,
coating machines, exposure machine, inkjet printing machine, coating, leather, glass, metal, furniture,
car paint detection, fluorescence detection, pet urine detection,PCB and other UVink Photocuring.
Custom Led Sign 3W 5W 10W UV LED 3535 6565 6868 SMD With Quartz Lens Chip UV LED Light Diode for Uv Ink Glue Printing
Application of UV Led Curing System
Custom Led Sign 3W 5W 10W UV LED 3535 6565 6868 SMD With Quartz Lens Chip UV LED Light Diode for Uv Ink Glue Printing
FAQ

Q1.What's the wavelength of the UV LED lamp?

A1: The wavelength of UV LED lamp usually are365-405nm. The wavelength for inkjet printer is

395nm, 385/395nm for printing machine,365nm for UV glue.

Q2.What's your LED chip brand?

A2: The LED chip brand we use are LG, Epileds, Seoul, Nichia.

Q3.What's the cooling way?

A3: We have water cooling and air cooling UV LED.

Q4.If the light intensity is adjustable?

A4: Yes, the intensity is 0-100% adjustable. We designed different dimming system for different products.

Q5: What about the after-sales service?

A5: YM provides spare parts for replacement, and 24 hours online and video technical support.

If you have other needs, please contact us to provide you with the best solution.

Umi@ymleduv.com , Thank you for your attention.
