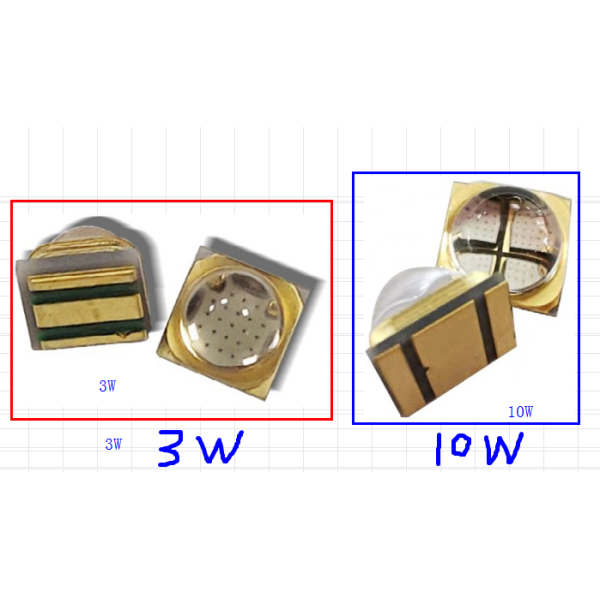

Quartz 395nm Uv Led Chip Led 3W 5W 10W UV LED 3838 5050 6565 Smd Uv Led Diode for Screen Printing LED UV Curing
Quartz 395nm Uv Led Chip Led 3W 5W 10W UV LED 3838 5050 6565 Smd Uv Led Diode for Screen Printing LED UV Curing
Quartz 395nm Uv Led Chip Led 3W 5W 10W UV LED 3838 5050 6565 Smd Uv Led Diode for Screen Printing LED UV Curing
Quartz 395nm Uv Led Chip Led 3W 5W 10W UV LED 3838 5050 6565 Smd Uv Led Diode for Screen Printing LED UV Curing
Quartz 395nm Uv Led Chip Led 3W 5W 10W UV LED 3838 5050 6565 Smd Uv Led Diode for Screen Printing LED UV Curing
Quartz 395nm Uv Led Chip Led 3W 5W 10W UV LED 3838 5050 6565 Smd Uv Led Diode for Screen Printing LED UV Curing
Specifications
Model Number :
YM-10W UV LED Chip
Beam Angle :
60 Degree
Payment Terms :
T/T
Lifespan :
15,000hrs
Price :
Negotiate
Power :
10W
Supply Ability :
10000 Pieces /per Month
Package :
Carton Box
Wavelength :
365/385/395/405nm(Optional)
Certification :
CE
Color Temperature :
Purple
MOQ :
Negotiate
Delivery Time :
10-15 work days
Current :
2-2.8A
Product Name :
UV LED SMD
Place of Origin :
China
Voltage :
3.4-3.8V
Packaging Details :
Carton
Warranty :
1 Year
Brand Name :
YM
Application :
ROSH
Description

YM-10W UV Quartz Flat Lens Chip Features and Benefits:

  • Improves coating and surface treatment efficiency
  • Vertical integrated manufacturing system
  • Factory direct supply with competitive pricing
  • Stable mass production capacity
  • Fast delivery and flexible production scheduling
  • Strict component sourcing control
  • OEM and ODM customization available
  • Flexible wavelength and power configuration
  • Custom structural design for equipment integration
  • Technical consultation and system matching support
  • Global customer support service
Item YM-10W UV LED Chip
Power 10W
Color UV
Diode type 6565 smd type
Lens Material of Diode quartz
View Angle of the Lens 60 degree
size 6.5mm*6.5mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 3.4-3.8V
Curent 2-2.8A
Chip Material LG,Seoul,Epileds
Welding temperature ≤220 degrees
Lifespan (hours) 15000
Warranty 1 year
Application Apply in various UV printing industries, painting, UV lnk,and UV glue.
Place of Origin Shenzhen, Guangdong, China

Quartz 395nm Uv Led Chip Led 3W 5W 10W UV LED 3838 5050 6565 Smd Uv Led Diode for Screen Printing LED UV Curing

About US
Shenzhen YM Technology Co., Ltd. specializes in the production and operation of high-power
UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
products. The product power range is from 0.5W to 10000W. Mainly used for flexographic printing
machines, printing machines, pad printing machines, screen printing machines, offset printing machines,
coating machines, exposure machine, inkjet printing machine, coating, leather, glass, metal, furniture,
car paint detection, fluorescence detection, pet urine detection,PCB and other UVink Photocuring.
Quartz 395nm Uv Led Chip Led 3W 5W 10W UV LED 3838 5050 6565 Smd Uv Led Diode for Screen Printing LED UV Curing
Application of UV Led Curing System
Quartz 395nm Uv Led Chip Led 3W 5W 10W UV LED 3838 5050 6565 Smd Uv Led Diode for Screen Printing LED UV Curing
FAQ

Q1: Could we order small?

Yes, Welcome to contact us for small order.

Q2. What is the outer package of the product?

A: We use very strong export-specific carton packaging and wooden box packaging to

ensure that the goods can be safely delivered to customers.

Q3. Processing cycle?

A: Some of products we have in stock. UV lamps usually need about 5-10days to make.If you need urgently,we will make the

UV lamp as soon as our possible.UV curing system need about 7-15days to prepare. UV accessories need about 1-7 days to prepare.

Q4: Any certificates for your products?

All our products do have CE, ROHS certificates.

Q5: Do you support OEM/ODM service?

Yes, we do have professional R&D team to offer OEM/ODM service.

If you have other needs, please contact us to provide you with the best solution.

Umi@ymleduv.com , Thank you for your attention.
