100W Factory Direct UV LED Curing System Glue Curing Lamp UV Light Source Module for Digital Inkjet Printer UV Curable Ink
100W Factory Direct UV LED Curing System Glue Curing Lamp UV Light Source Module for Digital Inkjet Printer UV Curable Ink
100W Factory Direct UV LED Curing System Glue Curing Lamp UV Light Source Module for Digital Inkjet Printer UV Curable Ink
100W Factory Direct UV LED Curing System Glue Curing Lamp UV Light Source Module for Digital Inkjet Printer UV Curable Ink
100W Factory Direct UV LED Curing System Glue Curing Lamp UV Light Source Module for Digital Inkjet Printer UV Curable Ink
100W Factory Direct UV LED Curing System Glue Curing Lamp UV Light Source Module for Digital Inkjet Printer UV Curable Ink
Specifications
Power :
100W
Voltage :
61-68V
View Angle of the Lens :
60 degree
Brand Name :
YM
Model Number :
100W-36KL2553 UV LED Module
Encapsulation process :
High temperature quartz lens package
Packaging Details :
Carton
Place of Origin :
CHINA
Payment Terms :
T/T
Product Name: :
100W-36KL2553 UV LED Module
Luminous Size :
25*25mm
MOQ :
Negotiate
Price :
Negotiate
Supply Ability :
100000
Module Size :
25*53*2.0mm
Current :
1-1.4A
LED Chips :
Optional(LG/Epileds/ Seoul)
Series-parallel :
18 Series 2 Parallels 36 LEDS
Certification :
High-tech Enterprise Certificate
Warranty :
1 Year
Delivery Time :
7-10 work days
Description

Product Advantages

1. Compact size: Ideal for integration into small devices or production lines

2. Momentary switch: Does not affect lifespan, suitable for intermittent production

3. Lower voltage means greater safety: Low-voltage operation ensures high safety levels

4. Low maintenance costs: No need to replace light tubes, no electrode aging issues

5. Fast curing speed: Suitable for high-speed production lines (>100 meters per minute)

6. Mercury-free and environmentally friendly: Complies with RoHS standards, free from heavy metal contamination

7. Start without surges: Minimal impact on the power grid

8. Uniform illumination: Surface lighting can be achieved through lens/array design.

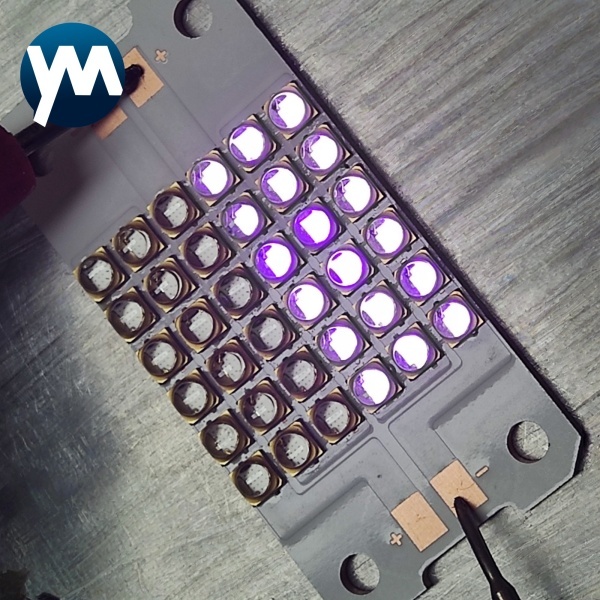

Item

100W-2553 UV LED Module

Power

100W

Color

UV
Number of lamp beads 36 pcs

Diode type

3535 smd

Lens Material of Diode

Quartz

View Angle of the Lens

60 degree

Module size

 25mm*53mm*2.0mm
Luminous Size 25mm*25mm

Wavelength

365nm,385nm,395nm,405nm

Voltage

61-68V

Current

1-1.4A

Chip Material

 LG,Seoul,Epileds

Encapsulation process

High temperature quartz lens package

Lifespan (hours)

20000

Warranty

1 year
Application Apply in various UV glue, ink, paint, silk screen, inkjet, offset printing.

Place of Origin

Shenzhen, Guangdong, China

100W Factory Direct UV LED Curing System Glue Curing Lamp UV Light Source Module for Digital Inkjet Printer UV Curable Ink

About US
Shenzhen YM Technology Co., Ltd. specializes in the production and operation of high-power
UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
products. The product power range is from 0.5W to 10000W. Mainly used for flexographic printing
machines, printing machines, pad printing machines, screen printing machines, offset printing machines,
coating machines, exposure machine, inkjet printing machine, coating, leather, glass, metal, furniture,
car paint detection, fluorescence detection, pet urine detection,PCB and other UVink Photocuring.
100W Factory Direct UV LED Curing System Glue Curing Lamp UV Light Source Module for Digital Inkjet Printer UV Curable Ink
Application of UV Led Curing System

Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry,

furniture industry, etc.

It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers

includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.

FAQ

Q1. Do you provide after-sales service for UV curing systems?
A: We provide 1-year warranty (excluding consumables) with free parts replacement for non-human damage,

plus paid maintenance after warranty.

Q2. How to confirm the performance before bulk order?
A: We offer sample checking and online live curing testing with real-time video for your verification.

Q3. What payment terms do you accept?
A: Sample full payment by T/T or PayPal; bulk order 30% deposit, 70% balance before shipment, L/C available for large orders.

Q4. Door-to-door or port pickup?
A: We support both FOB and DDP door-to-door delivery with full customs clearance handled by us.

Q5. Goods damaged in transit?
A: Send damage photos and logistics certificate, we will arrange reshipment or refund according to the actual loss.
Q6. Operation guidance for UV systems?
A: We provide English manual, online training and optional on-site engineer guidance at your expense.

If you have other needs, please contact us to provide you with the best solution.
