90W Module High Power Curing COB UV LED 365nm 395nm SMD Ultraviolet
90W Module High Power Curing COB UV LED 365nm 395nm SMD Ultraviolet
90W Module High Power Curing COB UV LED 365nm 395nm SMD Ultraviolet
90W Module High Power Curing COB UV LED 365nm 395nm SMD Ultraviolet
Specifications
Brand Name :
YM
Model Number :
UV LED COB Module 5256-1
Certification :
High-tech Enterprise Certificate
Place of Origin :
CHINA
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
7-10 work days
Packaging Details :
Carton
Power :
90W
Module Size :
52*56 mm
Luminous Size :
25*25 mm
Voltage :
34-38V
Diode type :
COB smd
Lens Material of Diode :
quartz
Description

90W COB UV LED Module High Power Curing 365nm 395nm COB LED Ultraviolet

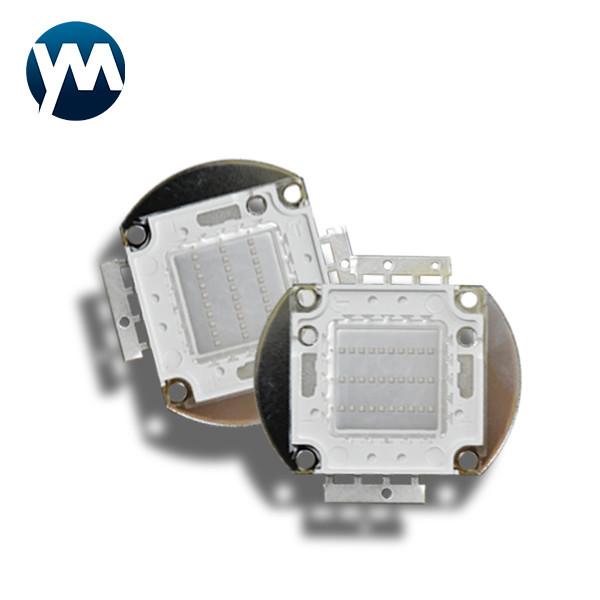

Description of COB UV LED Module:

The COB UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
Product Name UV LED COB Module 5256-1
Power 90W
Color UV
Number of lamp beads 30 pcs
Diode type COB smd
Lens Material of Diode quartz
View Angle of the Lens 180 plane
Module size 52*56mm
Luminous Size 25*25mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 34-38V
Current 1.5-2.1A
Chip Material Epileds
Encapsulation process High temperature quartz lens package Module
Module material COB Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China

90W Module High Power Curing COB UV LED 365nm 395nm SMD Ultraviolet90W Module High Power Curing COB UV LED 365nm 395nm SMD Ultraviolet90W Module High Power Curing COB UV LED 365nm 395nm SMD Ultraviolet

Reason to select US?
1) Fiar pricing
Our prices are wholesale factory prices.
2) Quality Control
Our manufacturing team is based of highly skilled professional which check quality of every product before shipping.

FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.

Q3. How to choose UV LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source.

The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.

If you have other needs, please contact us to provide you with the best solution.
