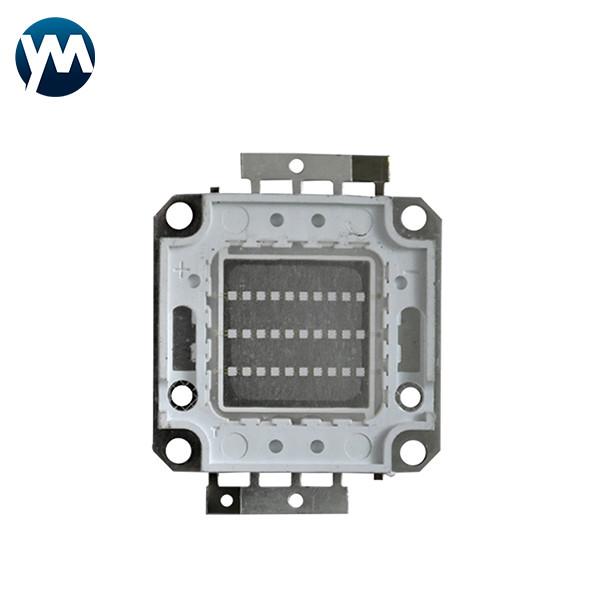

90W COB UV LED Module UV Curing Light UV Curing System High Power 365nm 395nm
90W COB UV LED Module UV Curing Light UV Curing System High Power 365nm 395nm
90W COB UV LED Module UV Curing Light UV Curing System High Power 365nm 395nm
90W COB UV LED Module UV Curing Light UV Curing System High Power 365nm 395nm
Specifications
Brand Name :
YM
Model Number :
UV LED COB Module 90W
Certification :
High-tech Enterprise Certificate
Place of Origin :
CHINA
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
10-15 work days
Packaging Details :
Carton
Product Name :
COB UV LED Module 90W
Module Size :
40mm*40mm
Luminous Size :
20mm*20mm
Voltage :
34-38V
Description

90W COB UV LED Module UV Curing Light UV Curing System High Power 365nm 395nm​

COB UV LED Module Product Description

The product can be applied with either Water-cooling or wind-cooling method.
Other curing size and voltage can be designed according your requirment, inluding mix

wavelenth special wavelenth and curing size.
High efficiency and low consumption.
Apply in various printing industries.

Item High Power COB UV LED Module
Power 90w
Color UV
Diode Brand DC, LG
Diode type COB
Lens Material of Diode COB
Module size 40mm*40mm
Luminous Size 20mm*20mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 34-38V
Current 1.5-2.1A
Chip Material Epileds
Encapsulation process COB
Lifespan (hours) 20000-30000
Warranty 2 years
Place of Origin

Guangdong, China

Feature of UV LED Module

• High power and efficiency, high reliability

• Long operation lifetime, low light failure

• Environmental protection, energy saving

• Zener diode protection device

Warm tips, in order to make our products play the best performance and reduce customer failure in the use of products, please note:

1) During the whole process of use, all people who are in direct contact with UVLED should take measures to prevent and eliminate static electricity, and do not touch the UV light emitting diode directly with their hands.

2) When welding, attention should be paid to the welding time and temperature, and the positive and negative polarities should be distinguished.

3) Electrical parameters such as current and voltage should not exceed the rated values.

90W COB UV LED Module UV Curing Light UV Curing System High Power 365nm 395nm90W COB UV LED Module UV Curing Light UV Curing System High Power 365nm 395nm

If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
