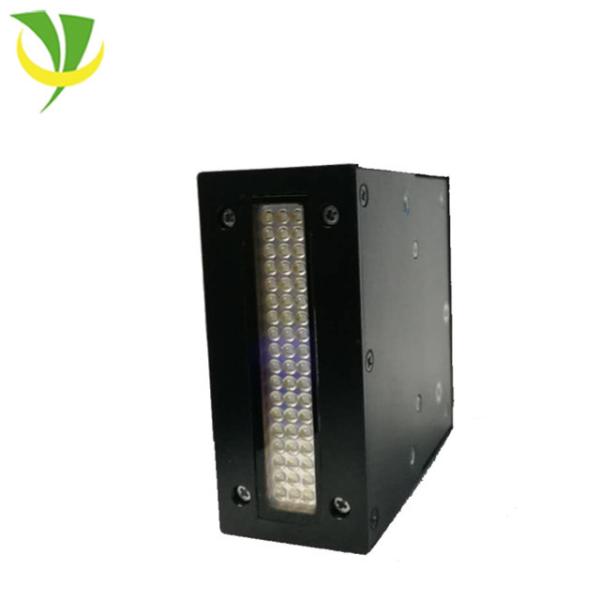

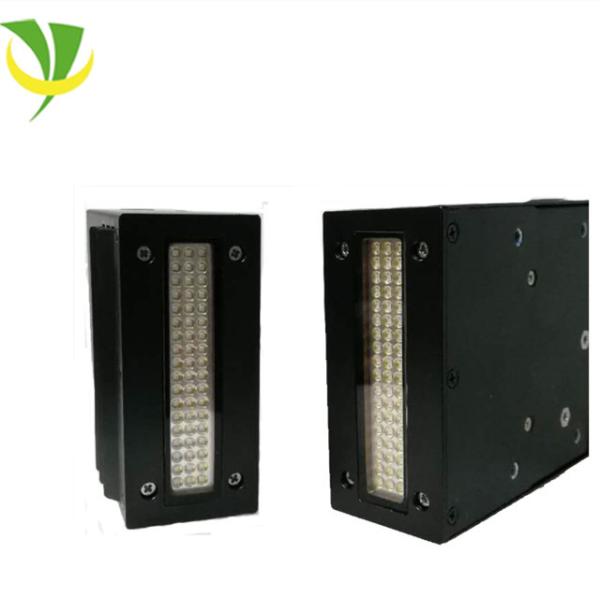

Air Cooling 395nm COB LED UV Curing Light For Printer
Air Cooling 395nm COB LED UV Curing Light For Printer
Air Cooling 395nm COB LED UV Curing Light For Printer
Air Cooling 395nm COB LED UV Curing Light For Printer
Air Cooling 395nm COB LED UV Curing Light For Printer
Air Cooling 395nm COB LED UV Curing Light For Printer
Specifications
Brand Name :
SYOCHI
Model Number :
FL-701528B-01
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
350-400USD/SET
Payment Terms :
Western Union, T/T
Supply Ability :
7000 SETS/MONTH
Packaging Details :
CARTON
Type :
UV LED
Wavelength :
365NM/385NM/395NM/405NM
Emitting color :
Purple
Operating temperature(℃) :
1 - 55
Viewing angle(°) :
90°
Chip material :
COB LED
Warranty :
1 Year
Application :
Printing
Description

Low Thermal Resistance High Power LED UV Curing Lamp For Printer

Model No. of UV lamp FL-701528A-01 Qty of UV lamp(pcs) 1
Cooling way air cooling

Ambient temperature

(℃)

 0-50
Wavelength (nm) 395 Input AC220V, 50Hz
Emitting size (mm) 70x15

Power per lamp

(W)

 135

Irradiate distance

(mm)

 5-10

Control method

(optional)

level control

(3-24V)
Irradiation intensity (W/cm²) 5-10, adjustable Lifespan (H) 20000

Advantage of UV LED technology​

  • UV dryers take up less space, so shops can utilize more revenue-producing equipment
  • UV uses less energy, therefore significantly cutting operating costs
  • UV ink goes farther than solvent-based ink (up to 60 percent per gallon)
  • UV curing can increase throughput four times over solvent-based processes
  • Clean-up time practically disappears, adding to the time available for production
  • UV technology doesn't pollute, inside or outside the shop, which means healthier employees, and a healthier, "greener" environment
