Adjustable 120° 385nm 100w Led UV Curing System
Adjustable 120° 385nm 100w Led UV Curing System
Specifications
Brand Name :
Syochi
Model Number :
SL-351500A-01
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
300-450USD/SET
Payment Terms :
Western Union, T/T
Supply Ability :
7000 SETS/MONTH
Packaging Details :
Cartons
Type :
High Power LED
Wavelength :
365/385/395/405NM
Emitting color :
Purple
Operating temperature(℃) :
1-50
Viewing angle(°) :
120
Warranty :
1 Year
Description

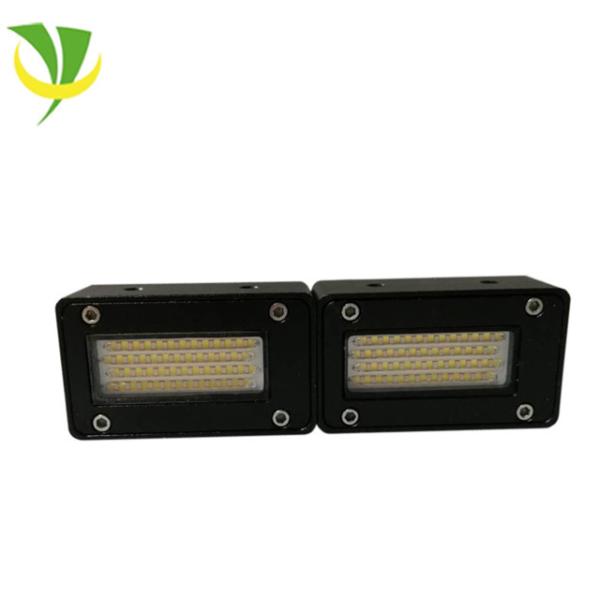

385nm High Power UV LED 100w Led UV Curing System For Digital/UV Printers

Model No. of lamp head SL-351500A-01 Qty of UV lamp(pcs) 2
Cooling way water cooling Model No. of Water chiller 150
Wavelength (nm) 395 Input AC220V, (optional)
Emitting window size (mm) 35x15 Total Power (W) 250
Irradiate distance (mm) 5-10 Power per Lamp (W) 100
Irradiation intensity (W/cm²) 4-8, adjustable Control method (optional)

level control

(3-24V)
Ambient temperature (℃) 0-50 Lifespan (H) 20000

Advantage of ultraviolet curing technology

  • UV dryers take up less space, so shops can utilize more revenue-producing equipment
  • UV uses less energy, therefore significantly cutting operating costs
  • UV ink goes farther than solvent-based ink (up to 60 percent per gallon)
  • UV curing can increase throughput four times over solvent-based processes
  • Clean-up time practically disappears, adding to the time available for production
  • UV technology doesn't pollute, inside or outside the shop, which means healthier employees, and a healthier, "greener" environment
