High Intensity 300w LED UV Light Curing System Lamp For Ricoh Gen 5 Printer Head
High Intensity 300w LED UV Light Curing System Lamp For Ricoh Gen 5 Printer Head
High Intensity 300w LED UV Light Curing System Lamp For Ricoh Gen 5 Printer Head
High Intensity 300w LED UV Light Curing System Lamp For Ricoh Gen 5 Printer Head
Specifications
Brand Name :
SYOCHI
Model Number :
SLLD-1202028B-01
Certification :
CE, RoHs
Place of Origin :
GuangDong
MOQ :
One set
Price :
USD 800 per set
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
2000 sets per set
Packaging Details :
Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton
Technology :
LED UV curing
Cooling Way :
Water cooled
Emitting Color :
Purple
Curing time :
Immediate drying
Application :
Flatbed printer
Warranty :
1 Year
Description

High intensity 300w LED UV curing lamp for Ricoh Gen 5 printer head

Specifications

Model No. SLLD-1202028B-01 Qty of UV lamp(pcs) 1-2
Cooling way water cooling Model No. of Water chiller 520
Wavelength (nm) 395 Input AC220V, (optional)
Emitting size (mm) 120x20 Total Power (W) 800
Irradiate distance (mm) 5-10 Power per Lamp (W) 300
Irradiation intensity (W/cm²) 5-15, adjustable Control method (optional) 5-32v
Ambient temperature (℃) 10-50 Lifespan (H) 20000

Advantages Features
Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp;
Environment friendly: No mercury. No ozone;
No warm-up time;
Low temputure;
UV output adjustment: 0-100%;
Multiple control modes: Switching, Voltage.
 High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well.

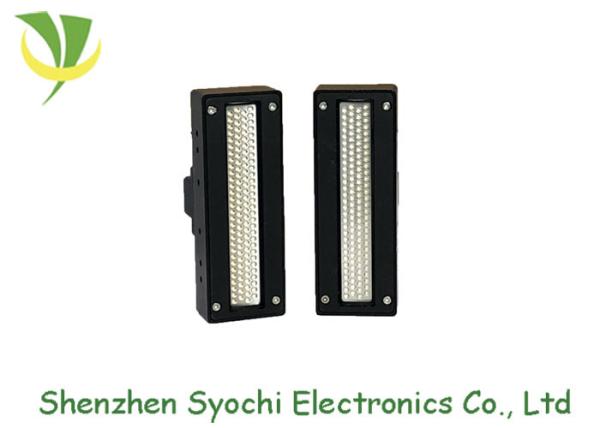

Lamp structure

High Intensity 300w LED UV Light Curing System Lamp For Ricoh Gen 5 Printer Head

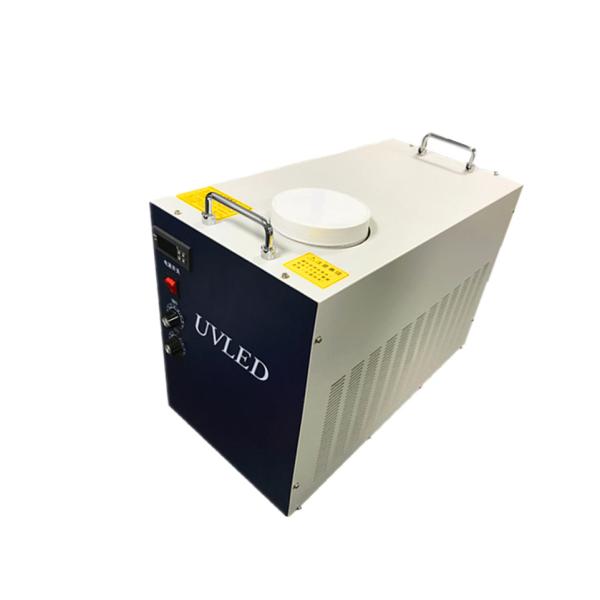

Chiller Structure

High Intensity 300w LED UV Light Curing System Lamp For Ricoh Gen 5 Printer Head
