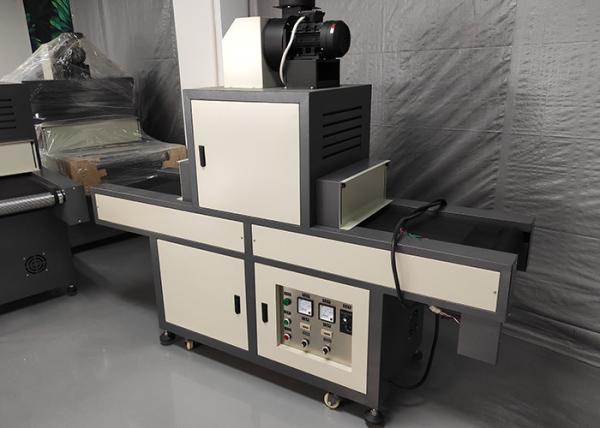

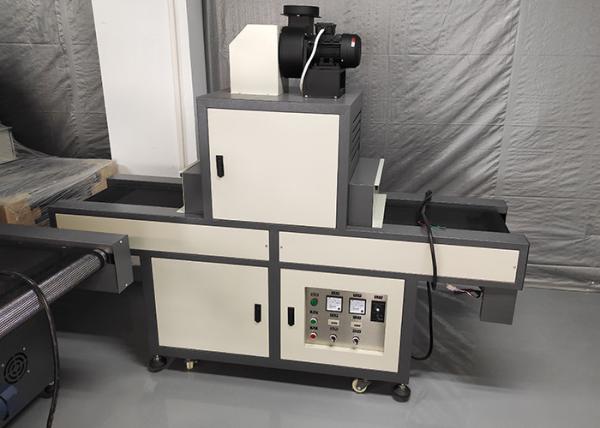

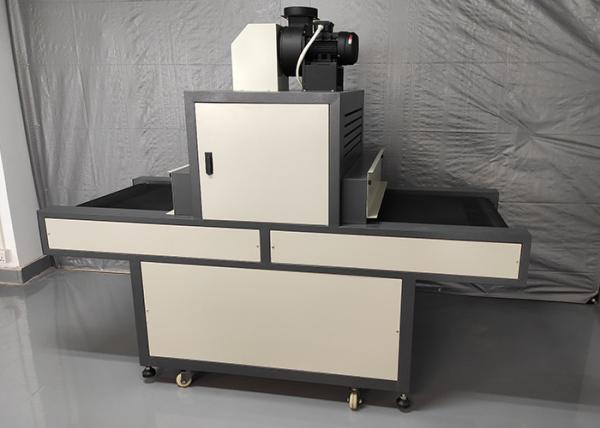

2.2KW 220VAC Desktop Conveyor UV Curing Machine
2.2KW 220VAC Desktop Conveyor UV Curing Machine
2.2KW 220VAC Desktop Conveyor UV Curing Machine
2.2KW 220VAC Desktop Conveyor UV Curing Machine
2.2KW 220VAC Desktop Conveyor UV Curing Machine
2.2KW 220VAC Desktop Conveyor UV Curing Machine
Specifications
Brand Name :
YI JIANG
Model Number :
400-22
Place of Origin :
China
MOQ :
1station
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10work days
Delivery Time :
10work days
Packaging Details :
Wooden Case
Model NO :
400-22
Irradiation Distance :
50mm(Adjustable)
High Imported Material :
100mm(customizable)
Weight :
90KG
Dimensions :
1330 L (length) × 420W (width) × 670H (height) mm
Origin :
China
Description

Conveyor UV Curing Device

Application example: UV drying device matched with assembly line. Suitable industries include: UV glue or coating curing for precision electronics, components, scientific research, experiments, etc.

Typical features: This desktop UV drying system adopts an integrated structure to solve the inconvenient movement of the split structure. Adopting exquisite appearance and volume design, it can meet the needs of assembly-line precision product curing and achieve the purpose of rapid drying and curing.

technical parameter:
Power requirements: single-phase 220VAC (power frequency AC) 50HZ (hertz)
Overall power: about 2.2KW (kw)
Dimensions: 1330 L (length) × 420W (width) × 670H (height) mm
Synchronization speed: 1~10 m/min (m/min)
Radiation width: 200mm (mm)
Cooling method: forced air cooling
Light source type: high-pressure Hg mercury lamp
Light wire power: 80w/cm
Light source configuration: 1kw *2
Lamp length: 300MM
Light source life: average more than 800 (h) hours, light attenuation not less than 80%
Main peak wavelength: 365nm (nm)
Reflector: Optical reflector
Typical application: UV ink/varnish/UV glue curing, suitable for non-explosion-proof environment
