50mm Irradiation Screen Printing Conveyor Belt UV Curing Furnace
50mm Irradiation Screen Printing Conveyor Belt UV Curing Furnace
50mm Irradiation Screen Printing Conveyor Belt UV Curing Furnace
50mm Irradiation Screen Printing Conveyor Belt UV Curing Furnace
50mm Irradiation Screen Printing Conveyor Belt UV Curing Furnace
50mm Irradiation Screen Printing Conveyor Belt UV Curing Furnace
Specifications
Brand Name :
YI JIANG
Model Number :
YJ400-22
Place of Origin :
China
MOQ :
1station
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10work days
Delivery Time :
10work days
Packaging Details :
Wooden Case
Model NO :
YJUV400-22
Irradiation Distance :
50mm(Adjustable)
High Imported Material :
100mm(customizable)
Weight :
280KG
Specification :
2100mm*700mm*1550mm
Origin :
China
Description

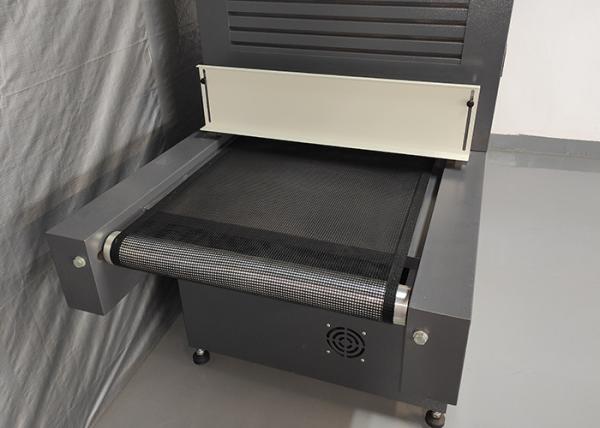

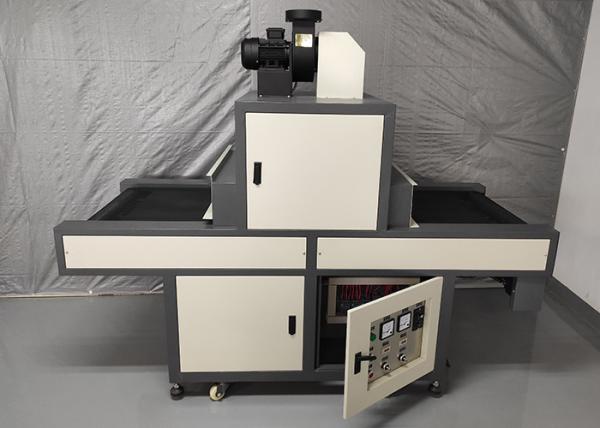

Used In Screen Printing / Ink Conveyor Belt UV Curing Furnace

Scope of application: ultraviolet (UV) glue, ultraviolet UV ink, ultraviolet UV varnish curing, economical and practical as a selling point.

Performance characteristics •Easy to operate, one of the mass production models, the selected components are all standardized, the operation and maintenance are simple, and the use cost is low;

Using high-quality UV light source, good stability;

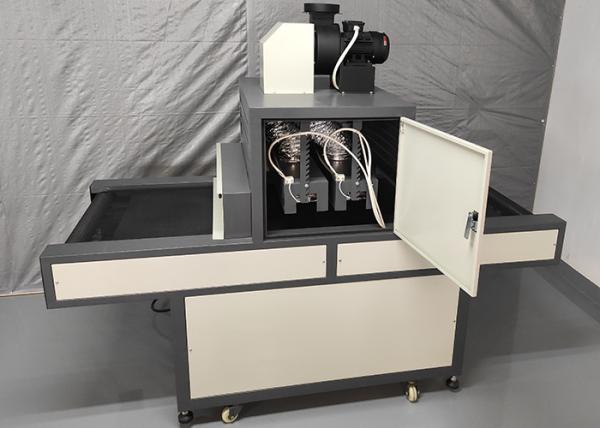

The adjustment of the UV lamp is very convenient. You only need to position its position symmetrically up and down on both sides of the machine to synchronize the height adjustment of the UV lamp;

Reasonable circulating exhaust design, good cooling effect of the whole machine;

It adopts stepless speed regulation, and the speed can be set freely within the effective range.

Light source life: average more than 800 (h) hours.

Main peak wavelength: 365nm (nm)

Power regulation: 100% full power

Typical features: UV lamp height adjustment is convenient, economical and practical

Typical application: ultraviolet (UV) glue light curing, suitable for non-explosion-proof environment.

Application examples: screen printing, identification plates, CD inks, glue or paint production test, small batch production, mobile phone shells, etc.
