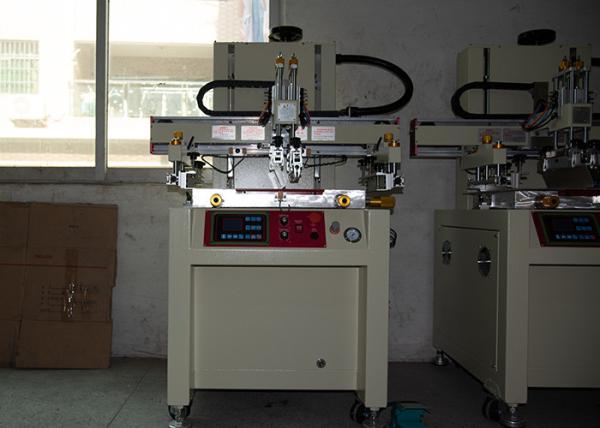

Customized High Precision Automatic Screen Printing Machine

Technical parameters:
Project YJ100390
Worktable area: 500 × 700mm
The maximum printing area is 400 × 600 mm
The maximum mesh frame size is 700 × 1000mm
Printing thickness range: 0.1 ~ 50 mm
Vertical and horizontal fine adjustment of worktable ± 10 mm
The repetition accuracy of the machine is ± 0.04mm
Working pressure: 0.5 ~ 0.6bar
Air consumption / (about) 35L / min
Power supply: 220 V
Total power: 2.7kw
Maximum machine efficiency / h 800 printing times
Machine dimensions (mm): 980 × 1170 × 1640mm
Net weight (about) 450 kg
Performance features:
1. Printing platform size: 500 * 700mm.
2. Printing area: 400 * 600mm.
3. Printing speed: 800 / hour adjustable.
4. 1.5KW frequency conversion lifting, 400W frequency conversion printing, hailip inverter.
5. "Taiwan North Machinery" reducer 80.
6. "Taiwan North Machinery" lifting motor 1.5kw.
7. Taiwan Liming printing motor 200W.
8. The cylinder of Jingcheng.
9. Up, down, left and right use "Taiwan silver" linear guide.
10. Inlet sensor.
11. "Italy megdyne" synchronous belt.
12. "Chint" AC contactor.

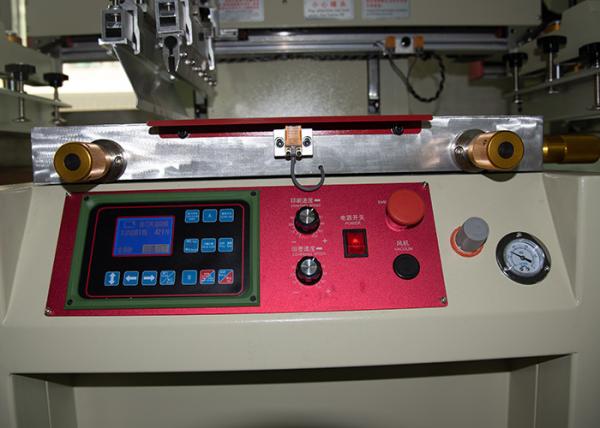

13. Touch screen in the machine control, the program has manual, semi-automatic, automatic three modes.
14. Printing machine head board, scraper / ink return knife loading and unloading cleaning is convenient, scraper / ink return knife angle can be adjusted arbitrarily.
15. The size of the left and right screen version can be adjusted.
16. The overprint accuracy is ± 0.04mm.
17. Substrate thickness 0 ~ 50mm adjustable.
Equipped with:
The tool box contains one hexagon wrench, one adjustable wrench and one screw driver
Scraper L = 300 mm L = 400 mm
1 for each
Ink return knife L = 320mm L = 420mm, 1 for each
