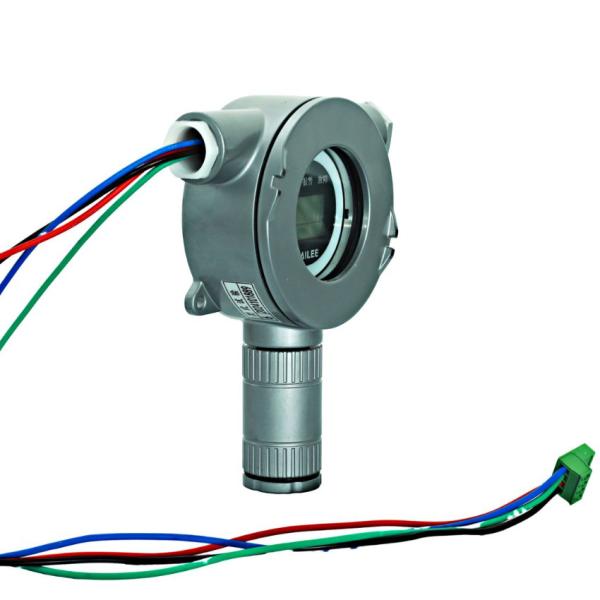

RS485 Combustible Gas Detector 4-20mA with Real Time Concentration / Temp Readout
RS485 Combustible Gas Detector 4-20mA with Real Time Concentration / Temp Readout
RS485 Combustible Gas Detector 4-20mA with Real Time Concentration / Temp Readout
RS485 Combustible Gas Detector 4-20mA with Real Time Concentration / Temp Readout
Specifications
Brand Name :
CAILEE
Model Number :
GTYQ-JSY-201/A
Certification :
ISO9001、CCCF、CNEX、SIL2
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Delivery Time :
15-20 days
Operating temperature :
-40℃~+70℃
Pressure range :
86kPa~106kPa
Power consumption :
≤3W
Transmission distance :
≤1000m(3280.84ft)
Detection range :
3~100%LEL
Types of gases :
Flammable gases such as methane, propane, isobutane, and hydrogen
Weight :
1.2kg(2.645lbs)
Display :
Oversized circular LED status ring
Description

Gas Detector Real-Time Concentration & Temp Readout RS485 4-20mA

Industrial Ex Gas Detector with Multi-Function: IP66, Sound-Light Alarm, Real-Time Concentration & Temp Readout | Dual Output Options

RS485 Combustible Gas Detector 4-20mA with Real Time Concentration / Temp Readout

1.Product Overview

The GTYQ-JSY-201/A industrial-grade point gas detector is an explosion-proof device integrating real-time concentration display, audible/visual alarms, and ambient temperature monitoring.

Operating on natural diffusion principle with catalytic combustion sensing technology, it delivers superior sensitivity and measurement consistency. The industrial-grade segment LCD simultaneously displays gas concentration and ambient temperature. Upon reaching preset thresholds, the unit triggers strobe/horn alarms and can activate ventilation systems. Featuring 4-20mA output for direct DCS integration or RS485 connectivity with our M201 control panel for centralized monitoring. The PowerBus 2-wire option simplifies installation. Built with embedded microcontroller architecture for reliable operation with intuitive functionality.

2.Product Features

(1) Advanced false-alarm filtering algorithm
(2) 360° LED status ring
(3) Hot-swappable sensor modules
(4) EMI/RFI shielding
(5) Multi-interface options: RS485 (4-wire), PowerBus (2-wire), 4-20mA
(6) Certified industrial housing (IP66)
(7) Explosion-proof & corrosion-resistant construction
(8) Complies with GB15322.1-2019, GB/T 3836.1-2021, GB/T 3836.2-2021

3. Application

(1) Flammable gas/vapor risk areas.
(2) Alcohol storage & fuel depots
(3) LPG/CNG stations & refineries
(4) Chemical plants & power stations
(5) Gas distribution facilities
(6) Semiconductor cleanrooms
(7) Pharma production

4.Main Technical Data

Operating voltage DC 24V
Operating current ≤50mA / DC 24V
Alarm current ≤65mA / DC 24V
Detection principle Catalytic Combustion Type
Detection range 3~100%LEL
Resolution 0.1%LEL
Measurement error Range indication deviation: ±5%LEL
Sampling method Natural diffusion
Ambient temperature -40℃~+70℃
Ambient humidity ≤95% RH without condensation
Response time ≤20s
Protection level IP66
Output mode RS485 bus, POWERBUS bus,
Relay passive contacts (or 4 - 20mA)
Relay contact capacity 0.5A/AC 125V 1A/DC 24V
Material Cast aluminum (stainless steel optional)
Implementation standard GB15322.1-2019
Dimensions

L:201mm × W:162mm × H:50mm

(L:7.91in×W:6.38in×H:1.97in)
Weight 1.2kg(2.645lbs)
Color Metallic silver
Cable outlet thread Standard: 2 pieces of G3/4
Explosion-proof mark Ex db ⅡC T6 Gb/ Ex tb ⅢC T80℃ Db
Sensor service life 2 years
Alarm set value Low limit: 25%LEL, High limit: 50%LEL

RS485 Combustible Gas Detector 4-20mA with Real Time Concentration / Temp Readout

5.Indicator Lights

Status Indicator light
Operation Indicator Light (Green) Flashes at 0.5S intervals
Alarm Confirmation Indicator Light (Red) Flashes for 0.5S when low-limit alarm is triggered, and stays on when high-limit alarm is triggered.
Fault Indicator Light (Blue) Stays on

6.Complete Product Set

RS485 Combustible Gas Detector 4-20mA with Real Time Concentration / Temp Readout

Name Quantities Unit of measure
GTYQ-JSY-201
Point-type combustible gas detectors for industrial and commercial applications		 1 piece
Instruction Manual 1 portion
Explosion-proof Certificate 1 portion
Connecting bolt M6x30 2 piece
Mounting Bracket 1 piece
Remote control 1 unit/batch
