E-Series Ex Sound Light Alarm Stainless Steel Long Lifespan
E-Series Ex Sound Light Alarm Stainless Steel Long Lifespan
E-Series Ex Sound Light Alarm Stainless Steel Long Lifespan
E-Series Ex Sound Light Alarm Stainless Steel Long Lifespan
E-Series Ex Sound Light Alarm Stainless Steel Long Lifespan
E-Series Ex Sound Light Alarm Stainless Steel Long Lifespan
Specifications
Brand Name :
BOEN FIRE
Model Number :
BY100
Certification :
ISO9001、CCCF
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Delivery Time :
15-20 days
Dimensions :
∅56mmx123mm(∅2.2inx4.84in)
Weight :
0.8kg(1.76lbs)
Installation method :
Pillar-mounted type, wall-mounted type
Shell material :
Stainless steel
Protection level :
IP65
Explosion-proof grade :
Exd IIC T6
Electrical interface :
M20x1.5
Operating temperature :
-25℃ ~ +55℃ (standard configuration), -30℃ ~+60℃; -40℃ ~+70℃
Description

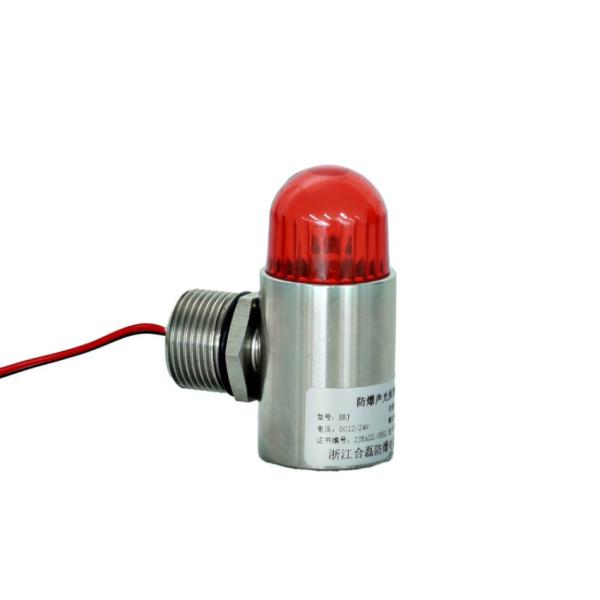

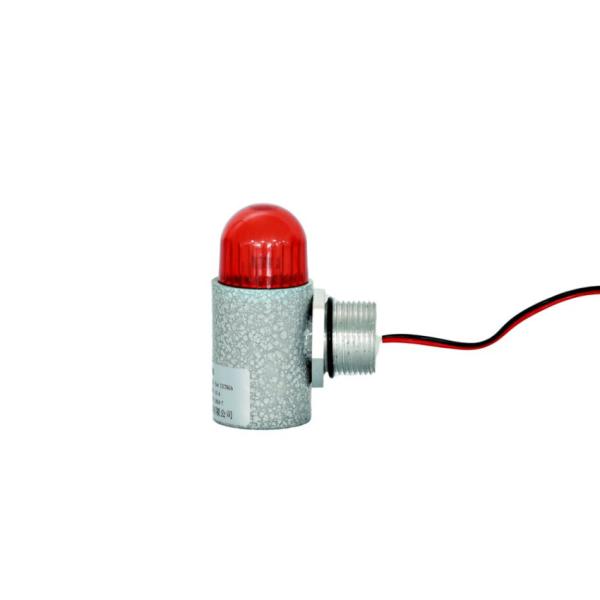

E-Series Ex Sound & Light Alarm Stainless Steel Long Lifespan

1. Product Overview

The explosion-proof grade is Exd I CT6. This product is suitable for Zone 1 and Zone 2 of the places where explosive mixtures are formed by combustible gases or vapors and air, which belong to Class IIA, B, and C and have a temperature range from T1 to T6. It is designed with a dedicated integrated circuit, featuring stable operation and a long service life. Ultra-high brightness light-emitting diodes are used inside, and it can be clearly visible from five angles. It has the characteristics of small size, loud sound, light weight, and low price.

2. Product Features

(1) The explosion-proof housing is made of full stainless steel.
(2) The lamp cap is made of special composite material, which has super strong impact resistance.
(3) It has an exquisite appearance, being lightweight and beautiful.
(4) It is equipped with ultra-high brightness light-emitting diodes, which have an extremely long service life.
(5) The sound-generating structure with patented technology enables unobstructed sound production.

3. Main Technical Data

Operating voltage DC24V or AC220V
Operating current <100mA
Alarm method Audible and visual alarm
Alarm sound 110dB@10cm+3dB
Sound type Alarm sound
Luminous intensity (5~10)cd
Flashing frequency Twice per second
Color Red
Service life of the light-emitting diode One hundred thousand hours
Cable Two-core waterproof cable with an outer diameter of 10 (explosion-proof junction box)
