UV LED Energy Meter LED light sources of different wavelengths
UV LED Energy Meter LED light sources of different wavelengths
Specifications
Brand Name :
Super- curing
Model Number :
UV Energy Meter
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C
Description

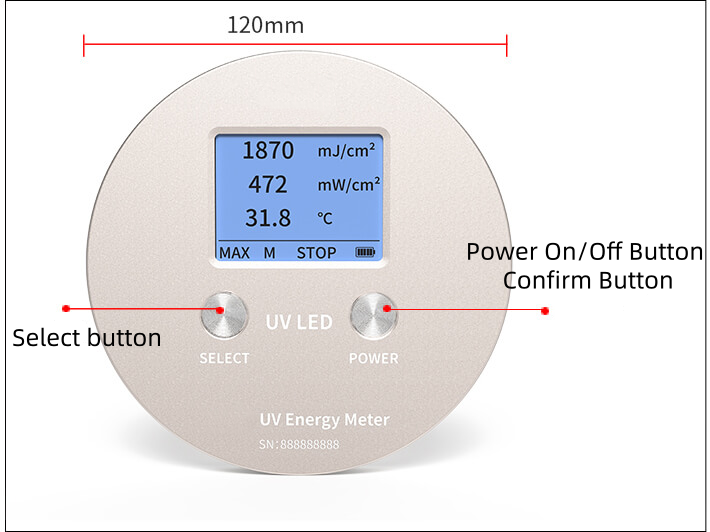

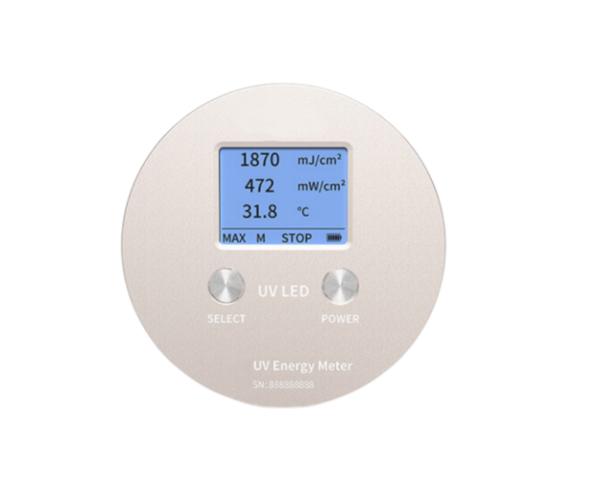

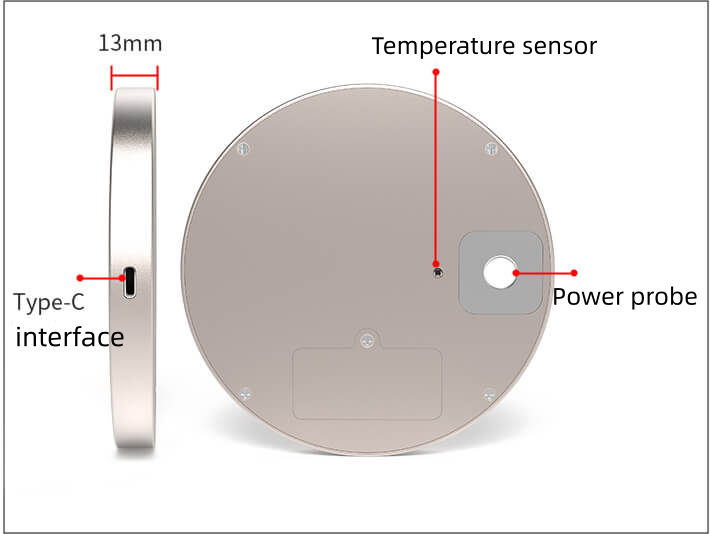

UV Energy Meter

The UV energy meter is a professional instrument designed for testing UV LED light sources, also known as a UV energy tester. With a spectral response range of 340 nm to 420 nm, it can measure UV LED lamps across various wavelength bands, including 365 nm, 375 nm, 385 nm, 395 nm, and 405 nm, making it the preferred choice for testing the energy and power of UV LED light sources.

Instrument parameters

Parameter Name Specifications
Spectral Range 340nm – 420nm, calibrated at 395nm light source
Power Measurement Range 0 – 200,000 mW/cm²
Power Resolution 1 mW/cm²
Energy Measurement Range 0 – 999,999 mJ/cm²
Measurement Accuracy H<50mW/cm²:±5mW/cm²
H>=50mW/cm²:±10%H, ±5%H
Temperature Range -55°C – +125°C
Sampling Speed 2048 times/second
Power Data Storage Interval 32 times/second
Temp. Data Storage Interval 2 times/second
Recording Period 32 minutes
Power Supply 2 AAA alkaline batteries
Display 240*160 dot matrix LCD
Test Aperture Diameter Φ10mm
Instrument Dimensions Diameter 120 mm * Thickness 13 mm
Instrument Weight 245g

Product Details
