UV Curing of Resins Inks and Adhesives Using Advanced UV LED Light Source Technology
UV Curing of Resins Inks and Adhesives Using Advanced UV LED Light Source Technology
Specifications
Brand Name :
CG
Model Number :
CG-CT10-1000*45-6000A/C
Certification :
CE*RoHS
Place of Origin :
China
MOQ :
1set
Price :
8000-9500usd 1 set
Payment Terms :
L/C,T/T
Supply Ability :
10 SET/DAY
Delivery Time :
10-15 Working days
Packaging Details :
Wooden case
Keyword :
high power uv led
Power :
6000W
Input voltage :
AC85-265V
Wave length :
395nm/365nm
Cooling way :
Water cooling
UV intensity :
18W/CM2
Warranty :
2 years
Package :
Wooden case
Description

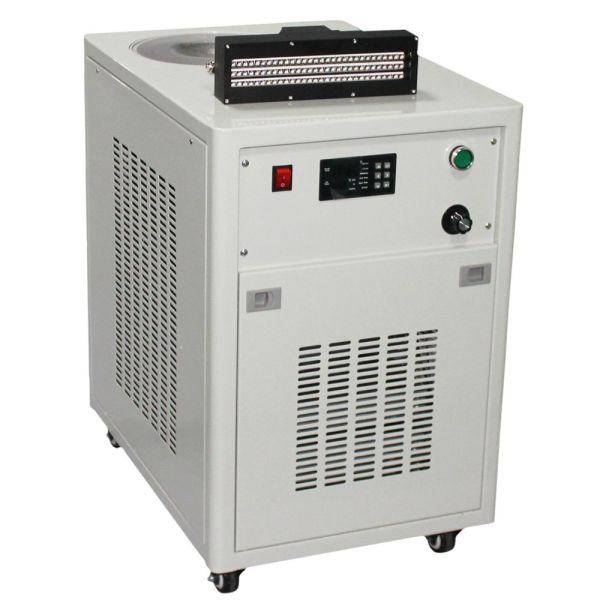

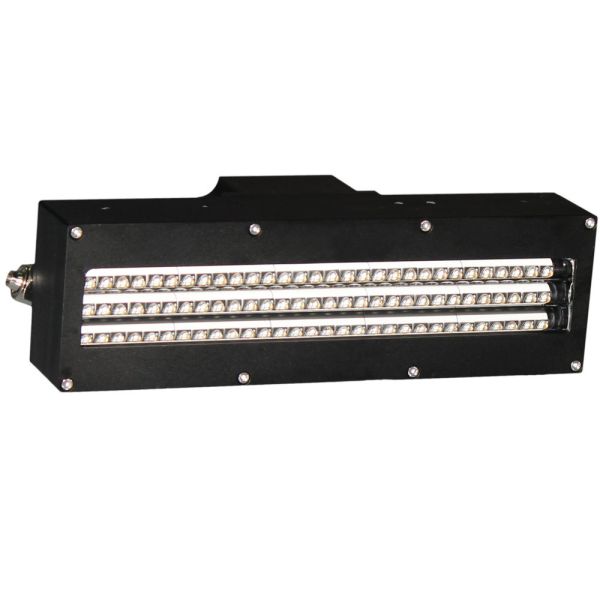

UV Curing Solution UV Light Source High Power UV LED Curing Machine​


UV Curing Solution Description


UV LED Curing: Instant Results, Unrivaled Quality. Industry-standard precision for resins, inks, and adhesives, ensuring rapid production and lasting durability.


UV Curing Solution Datasheet


Model

CG-CT10-1000*45-6000A/C lamp color

Black


Power


 6000W

Chip brand

LG/Seoul


Input voltage


 AC85-265V

Wave length

365/385/395/405nm


Application


 UV ink/vanish/coating /adhesive curing

Life span

20000H


Cooling way


 Water cooling

Emitting window size

 customized


UV intensity


 18W/CM2

Dimmable

 0%-100%


Best emitting distance


 30-50mm Package wooden case


UV Curing Solution Advantages

  1. Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
  2. Environment friendly , No mercury. No ozone making and VOC discharge.
  3. NO warm-up , turn on/off instantly.
  4. Low temperature, can be used for PE and film ink curing .
  5. Long lifespan, 20000hours .



Product Details Description


UV Curing of Resins Inks and Adhesives Using Advanced UV LED Light Source Technology UV Curing of Resins Inks and Adhesives Using Advanced UV LED Light Source Technology

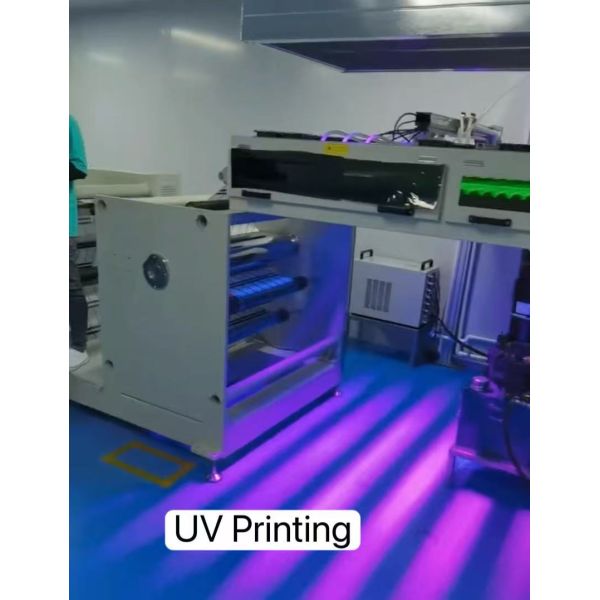

UV Curing System Application



UV Curing of Resins Inks and Adhesives Using Advanced UV LED Light Source Technology UV Curing of Resins Inks and Adhesives Using Advanced UV LED Light Source Technology. UV Curing of Resins Inks and Adhesives Using Advanced UV LED Light Source Technology UV Curing of Resins Inks and Adhesives Using Advanced UV LED Light Source Technology UV Curing of Resins Inks and Adhesives Using Advanced UV LED Light Source Technology



UV Curing Solution FAQ:


Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.


Q2: What’s your led brand ?

A2: LG/Seoul


Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz


Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling


Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%


Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.


Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
