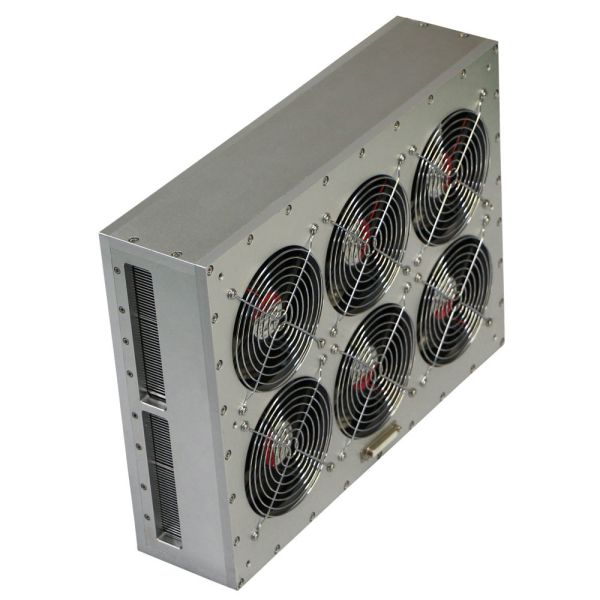

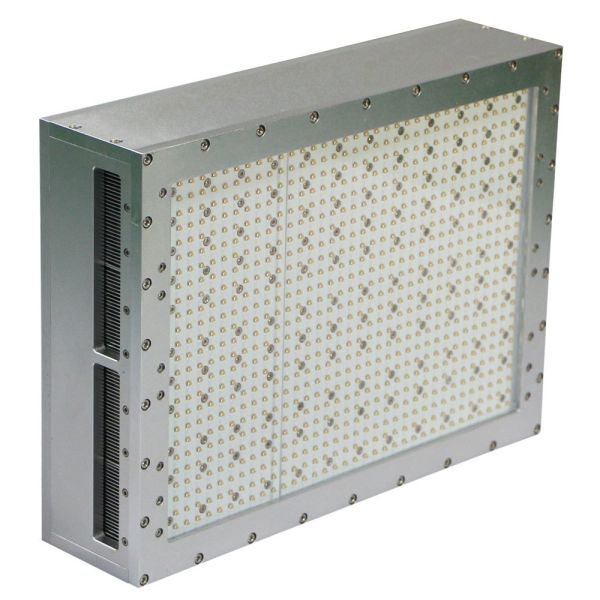

Innovative Quartz Lens LED UV Curing System for Quick Drying of Varnish/Coating.
Innovative Quartz Lens LED UV Curing System for Quick Drying of Varnish/Coating.
Specifications
Brand Name :
CG
Model Number :
CG-CT3-40027-1500A/C
Certification :
CE*RoHS
Place of Origin :
China
MOQ :
1set
Price :
1500-1800usd 1 set
Payment Terms :
L/C,T/T
Supply Ability :
10 SET/DAY
Delivery Time :
10-15 Working days
Packaging Details :
Wooden case
Keyword :
LED UV Curing System
Power :
600W
Input voltage :
AC85-265V
Wave length :
395nm
Cooling way :
Air cooling
UV intensity :
2W/CM2
Warranty :
1 years
Package :
Wooden case
Description

Quartz Lens AC220V 800W Led Curing Ultraviolet Light For Adhesive


LED UV Curing System Description


" LED" UV curing lamp is a new technology and way emitting ultraviolet ray radiation to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .


LED UV Curing System Datasheet


Model

CG-CT3-40027-1200Alamp color

Rose golden


Power


600W

Chip brand

LG/Seoul


Input voltage


 AC85-265V

Wave length

365/385/395/405nm


Application


UV ink/vanish/coating /adhesive curing

Life span

10000H


Cooling way


Air cooling

Emitting window size

customized


UV intensity


2W/CM2

Dimmable

0%-100%


Best emitting distance


30-50mm Packagewooden case




Product Details Description


Innovative Quartz Lens LED UV Curing System for Quick Drying of Varnish/Coating. Innovative Quartz Lens LED UV Curing System for Quick Drying of Varnish/Coating. Innovative Quartz Lens LED UV Curing System for Quick Drying of Varnish/Coating.





UV Curing System Application



Innovative Quartz Lens LED UV Curing System for Quick Drying of Varnish/Coating. Innovative Quartz Lens LED UV Curing System for Quick Drying of Varnish/Coating.. Innovative Quartz Lens LED UV Curing System for Quick Drying of Varnish/Coating. Innovative Quartz Lens LED UV Curing System for Quick Drying of Varnish/Coating. Innovative Quartz Lens LED UV Curing System for Quick Drying of Varnish/Coating.




LED UV Curing System Advantages

  1. Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
  2. Environment friendly , No mercury. No ozone making and VOC discharge.
  3. NO warm-up , turn on/off instantly.
  4. Low temperature, can be used for PE and film ink curing .
  5. Long lifespan, 20000hours .

LED UV Curing System FAQ:


Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.


Q2: What’s your led brand ?

A2:LG/Seoul


Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz


Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling


Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%


Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.


Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
