Water Cooled Multi-Wavelength 365nm 16W per cm² UV LED Optical Coating Curing System for Precision Applications
Water Cooled Multi-Wavelength 365nm 16W per cm² UV LED Optical Coating Curing System for Precision Applications
Water Cooled Multi-Wavelength 365nm 16W per cm² UV LED Optical Coating Curing System for Precision Applications
Water Cooled Multi-Wavelength 365nm 16W per cm² UV LED Optical Coating Curing System for Precision Applications
Water Cooled Multi-Wavelength 365nm 16W per cm² UV LED Optical Coating Curing System for Precision Applications
Water Cooled Multi-Wavelength 365nm 16W per cm² UV LED Optical Coating Curing System for Precision Applications
Specifications
Peak Irradiance :
16W per cm²
Certification :
CE, RoHS
LED Lifespan :
≥ 20,000 Hours
Wavelength Selection :
Multi-Channel Independent Control
Place of Origin :
China
Input Voltage :
AC 85-265V
Irradiation Area :
27mm x 900mm
Delivery Time :
10-20 working days
Control Interface :
Touch Screen PLC
Packaging Details :
Wood Packaging
MOQ :
1 Set
Cooling Method :
Water Cooling (Precision)
LED Wavelength :
365nm / 385nm/395nm / 405nm
Supply Ability :
150 Sets per Month
Payment Terms :
T/T,L/C
Price :
USD 3,000 - 18,000 / Set
Model Number :
CG-CT2- 27900-2400A
Brand Name :
Super-curing
Application :
Optical Coating Curing
Description

Multi-Wavelength Water Cooled UV LED Curing System for Optical Coating

The CG-CT3- 27900-2400A is a precision multi-wavelength water-cooled UV LED curing system purpose-built for optical coating and lens bonding applications. Featuring independently controllable 365nm,385nm, 395nm, and 405nm channels with 16W per cm² peak irradiance, this system provides unmatched curing flexibility for anti-reflective coatings, optical adhesives, and precision lens assembly.

Key Features

  • Multi-Wavelength Output – Three independently controllable LED channels at 365nm, 385nm,395nm, and 405nm for curing diverse optical adhesives and coatings in a single system
  • Precision Water Cooling – Advanced liquid cooling maintains temperature stability within ±1°C, critical for optical-grade curing uniformity
  • Uniform Irradiance – Custom micro-lens array delivers over 95% irradiance uniformity across the 200mm x 200mm irradiation area
  • PLC Touch Screen with Recipe Storage – Stores up to 50 curing recipes with independent wavelength, power, and duration settings per channel

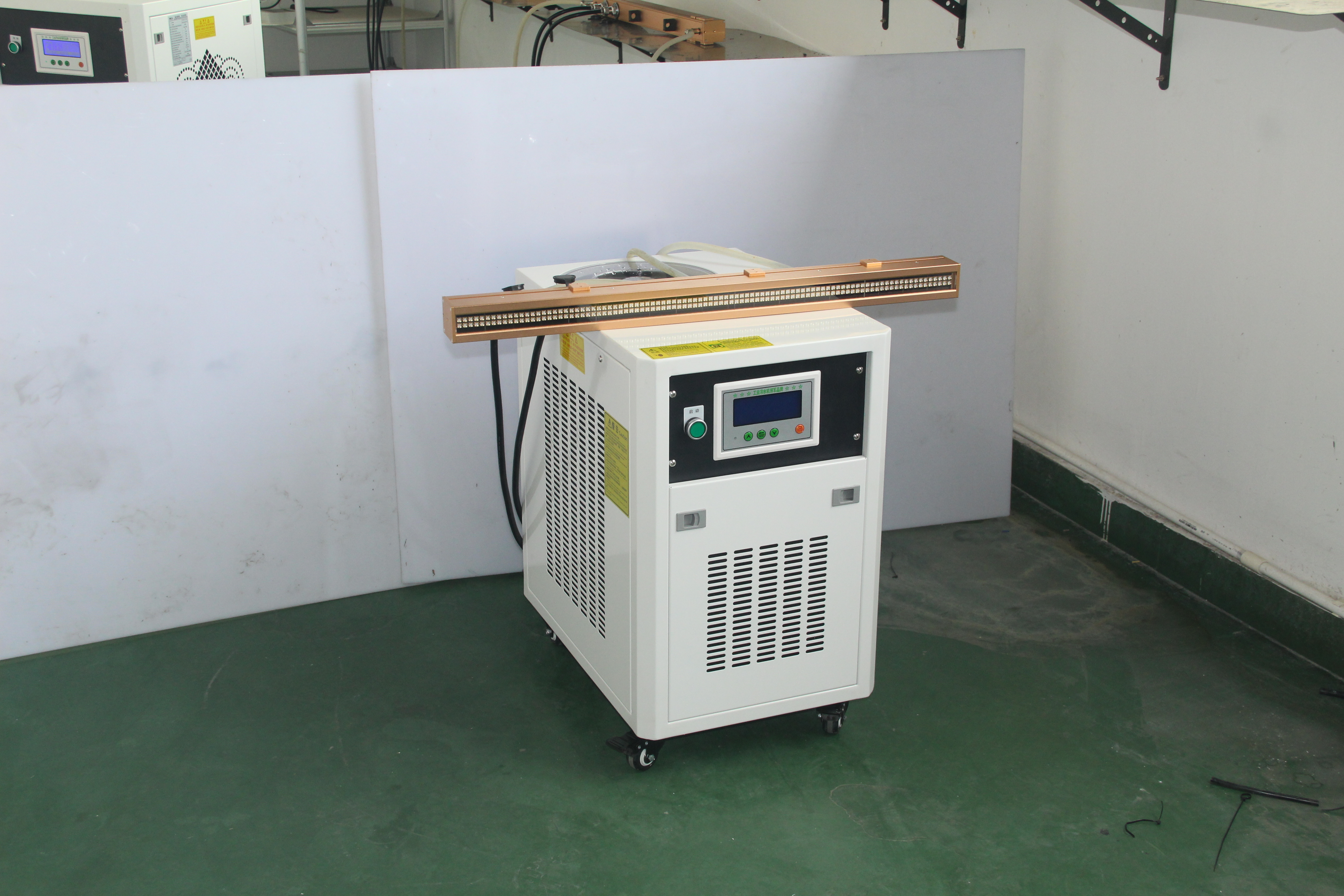

  • Compact Benchtop Design – Space-efficient footprint with integrated water chiller unit, suitable for cleanroom and laboratory environments

Technical Specifications

LED Wavelength 365nm /385nm/ 395nm / 405nm
Peak Irradiance 15W per cm²/w
Cooling Method Water Cooling (Precision)
LED Lifespan ≥ 20,000 Hours
Irradiation Area 27mm x 900mm
Input Voltage AC 85-265V

Applications

Engineered for optical lens coating, anti-reflective layer curing, optical bonding of display panels, fiber optic connector curing, and precision medical device assembly. Class 100 cleanroom compatible.



Water Cooled Multi-Wavelength 365nm 16W per cm² UV LED Optical Coating Curing System for Precision Applications Water Cooled Multi-Wavelength 365nm 16W per cm² UV LED Optical Coating Curing System for Precision Applications

Water Cooled Multi-Wavelength 365nm 16W per cm² UV LED Optical Coating Curing System for Precision Applications Water Cooled Multi-Wavelength 365nm 16W per cm² UV LED Optical Coating Curing System for Precision Applications

Packaging & Warranty

Shipped in export-grade plywood case with anti-static foam padding and desiccant packs. Includes 2 years warranty, calibration certificate, and comprehensive technical documentation.
