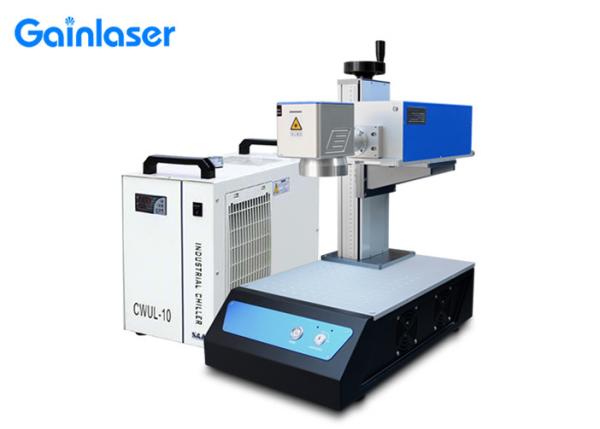

JCZ 34KG Portable Laser Marking Machine For Leather
JCZ 34KG Portable Laser Marking Machine For Leather
Specifications
Brand Name :
Gainlaser
Model Number :
GL-UV-08W
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Please inquire individually
Payment Terms :
T/T
Supply Ability :
100 units per months
Delivery Time :
5-8 days
Packaging Details :
Export Wooden Case
Wavelength :
355nm
Average Ouput Power :
＞3W@30KHz
Pulse Repetition Frequency :
1-150KHz
Max Pulse Energy :
0.1mJ@30KHz
Pulse Duration :
≤15ns@30KHz
Max Marking Speed :
2000mm/s
Description

3W Water Cooled Portable UV Laser Marking Machine

1. Product Description

  • 355nm DPSS UV laser with average output power ＞3W@ 30KHz;
  • Mark all plastics, all glass, regular metals, wood, leather, fruits, ceramic, etc.;
  • Short wavelength 355nm, generating tiny laser spot, achieving elaborate marking effect;
  • Small-size and portable design, and ready to work when connecting with a PC or laptop;
  • With RS-232 serial port line, computer remote control the machine;
  • With JCZ marking board and software, achieving accurate marking and multi functions;
  • High effective cooling module, in-built 7 cooling fans, short air duct, quick cooling effect;
  • UV laser lifespan > 20,000 hours. Afterwards, you may need replacing aging components.

2. Technical Parameter

Product Name UV Laser Marker Cooling Mode Water Cooled
Model GL-UV-08 Max Marking Speed 2000mm/s
Laser Brand GAINLASER Marking Accuracy 0.01mm
Pulse width 15ns@30KHz Focus Spot Diameter <0.01mm
Average Power 3W@30KHz Mininum Character Size 0.1*0.1mm
Laser Wavelength 355nm Pulse Repetition Frequence 10 KHz - 150 KHz
Field Lens Brand Wavelength Laser Outlet Roundness

＞90%
Marking Area 110*110mm Power Supply AC110V / 220V +10% / 50HZ or 60HZ
Control Card JCZ Brand EZCAD Operation System Win XP / 7 / 8 / 10
Machine Size L67*W32*H67cm Net Weight 34KG

3. Product Application

JCZ 34KG Portable Laser Marking Machine For Leather

JCZ 34KG Portable Laser Marking Machine For Leather

JCZ 34KG Portable Laser Marking Machine For Leather

JCZ 34KG Portable Laser Marking Machine For Leather

JCZ 34KG Portable Laser Marking Machine For Leather

JCZ 34KG Portable Laser Marking Machine For Leather

JCZ 34KG Portable Laser Marking Machine For Leather
