3.5 Mrad Laser Engraver Galvo Scan Head For Marking
3.5 Mrad Laser Engraver Galvo Scan Head For Marking
Specifications
Brand Name :
Tenfotai
Model Number :
S10ND42L1
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Please inquire individually
Payment Terms :
T/T
Supply Ability :
1000 sets per month
Delivery Time :
Within 5 days
Packaging Details :
Carton
Mirror Length :
1064nm
Clear Aperture :
10mm
Marking Speed :
4000mm/s
Scanning angle :
3.5 mrad
Description

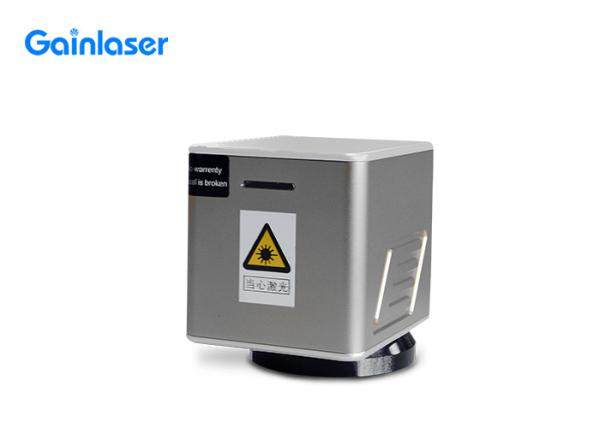

Galvanometer Scanner Head for Fiber Laser Marking

1. Product Description

  • S10NG42L1 is a 2-dimensional scanning system with 10mm incident light spot, widely used in laser processing, laser marking, laser welding, 3D printing and other fields;
  • The product integrates servo system, electric motor manufacturing and precision machining into itself, having high performance and high reliability;
  • Unique structure design ensures excellent heat transfer performance and shielding performance. Each component is manufactured according to the strict standard of low drift and high stability;
  • Adopting universal XY2-100 communication protocol to receive digital command, it’s applicable to different cards.

3.5 Mrad Laser Engraver Galvo Scan Head For Marking3.5 Mrad Laser Engraver Galvo Scan Head For Marking

2. Technical Parameter

Dynamic Property:
Tracking Error 0.25ms
Long Time 8-hour Drift ＜ 30 mrad
Zero Point Drift ＜15 urad/k
Gain Drift ＜50 ppm/k
Photoelectric Property:
Clear Aperture 10 mm
Scanning Angle ±0.35 rad
Nonlinearity 3.5 mrad
Basic Property:
Mirror Wavelength 1064 nm
Marking Speed 4000 mm/s
Positioning Speed 3 m/s
Power Requirement ±15V DC, 3A each path
Working Temp 25℃±10
Interface protocol XY2-100

3. Mechanical Drawing

3.5 Mrad Laser Engraver Galvo Scan Head For Marking
