Specifications
Brand Name :
OSMANUV
Model Number :
OSM-UV-102
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Negotiation
Delivery Time :
30-45days
Packaging Details :
WOOD PACKAGING
Quality Guarantee :
12000 Hours
Power Supply Size :
445*250*175mm
Heat Dissipation Method :
Circulating Water Cooling
Mesh Belt Width :
400mm
Color :
Computer white / Green
Coating :
Powder
Material :
Aluminum Alloy
Condition :
New
Description
High-Speed Energy-Saving UV Curing Unit 102 | Customizable Irradiation Area & Cooling | Lab to Pilot Scale
Product Overview

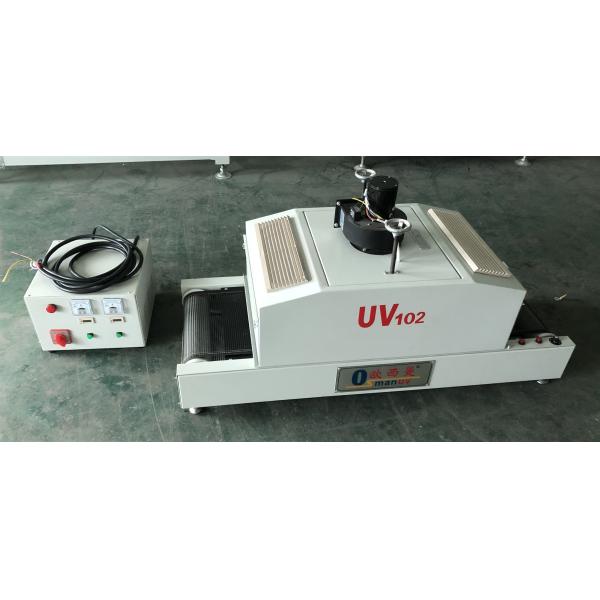

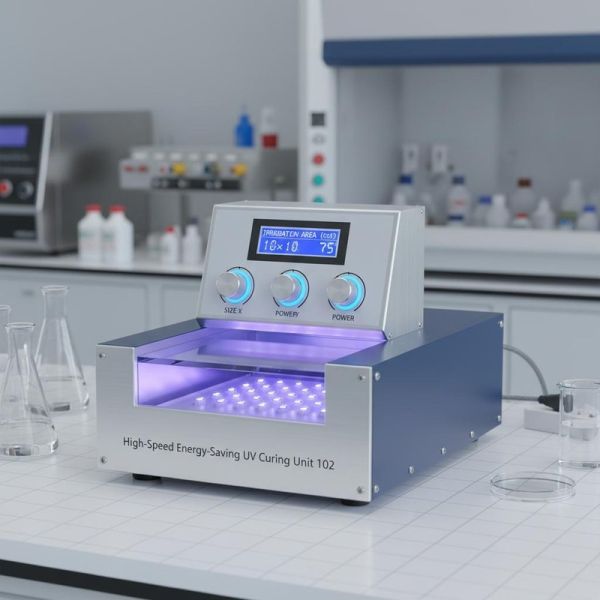

The Model 102 UV Laboratory Curing Machine is designed for R&D, pilot production, and small-batch manufacturing. It features high-uniformity UV irradiation, real-time intensity control, and a compact footprint. The system supports mercury, LED, or hybrid UV sources. Customizable parameters include lamp wavelength (365-395 nm), belt width, and power output, making it ideal for adhesives, coatings, inks, and photoresists.

Technical Specifications
Parameter Standard Range Customizable Option
UV Source Type LED / Mercury Customizable hybrid or dual-band
Wavelength (nm) 365, 385, 395 Customizable from 280-405 nm
Peak Irradiance (W/cm²) 8 - 20 Customizable up to 40 W/cm²
Irradiation Area (mm) 300 x 250 Customizable length/width
Conveyor Speed (m/min) 0.5 - 5 Customizable speed range
Cooling Method Air cooling Customizable water cooling option
Power Supply 220V, 50/60Hz Customizable voltage (110-480V)
Operating Height (mm) 900 ± 50 Customizable to user requirement
Applications
  • Adhesive curing (medical, optical, electronic)
  • UV coating and varnish drying (paper, plastic, metal)
  • Photoresist exposure in semiconductor R&D
  • 3D print post-curing
  • Customizable for special substrates (e.g., heat-sensitive films, curved surfaces)
Customization Options

We offer full customization for the UV 102 curing system, including:

  • UV lamp type & quantity (LED arrays, mercury bulbs, or both)
  • Belt material (PTFE, stainless steel, mesh)
  • Cleaning system (anti-static or dust-free)
  • Software interface (PLC, touch screen, data logging)
  • Explosion-proof design for solvent-based materials
  • Customizable tunnel length or pass-through height
Key Features
  • Real-time UV intensity feedback & auto-compensation
  • Double safety interlock (door & temperature)
  • Low ozone emission with optional catalytic filter
  • Touchscreen with recipe storage for 100+ products
  • Modular design allows customizable field upgrades
  • Uniformity ≥ 92% across curing area
Support & Services
  • Free remote installation guidance & video support
  • 18-month warranty with customizable extended plans
  • Spare parts delivery within 48 hours (global hubs)
  • Annual calibration service (on-site or return)
  • Customizable maintenance contracts (monthly/quarterly)
Packing & Shipping
  • Packaging: Plywood case with anti-vibration foam + moisture barrier
  • Dimensions (standard): 1200 x 800 x 1400 mm (weight ~180 kg)
  • Shipping: FOB or CIF by sea/air. Customizable pallet size & labeling for OEM partners
  • Documents: CE, RoHS, manual, calibration certificate
Frequently Asked Questions
Q1: Can the UV 102 cure solvent-based materials safely?
A: Yes, with customizable explosion-proof ventilation and sealed lamps.
Q2: How do I choose the right wavelength?
A: Based on your photoinitiator. We offer customizable wavelength testing using your sample.
Q3: Is the belt speed customizable during curing?
A: Yes, via PID controller; speed can be programmed per recipe.
