Specifications
Brand Name :
OSMANUV
Model Number :
OSM-PT-1320
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Negotiation
Delivery Time :
30~40 Days
Packaging Details :
Wooden Box
Coating Durability :
High Durability
Delivery Pile Height :
1100 mm
Effective Width :
1300mm
Core Components :
PLC, Bearing, Motor, Pump
Operation Environment :
Temperature: 15-35°C, Humidity: 20%-60%
Dry Way :
UV lamp
Spray Gun :
Automatic Gun
Voltage :
380V/50HZ, can be adjustable
Description
High-Precision Robotic Internal Coating Spraying System for Molded Pulp Packaging

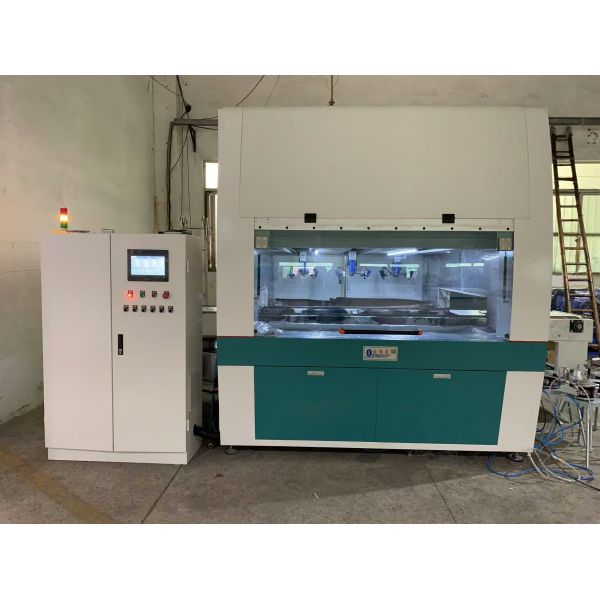

Production Line Composition
  • Robotic spraying arm (6-axis)

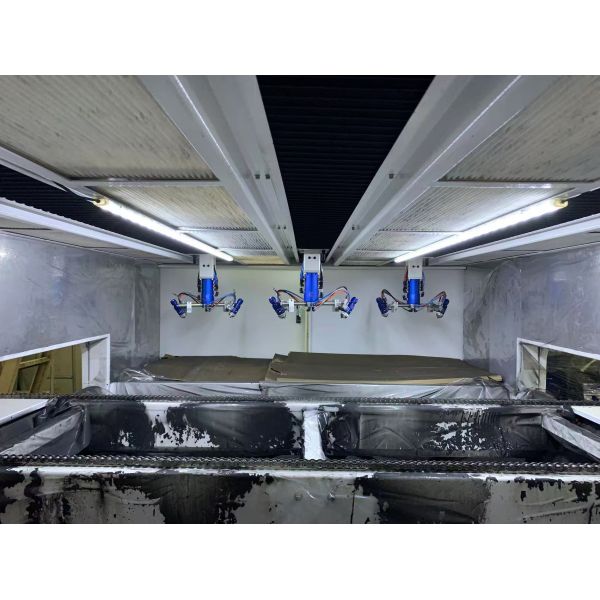

  • High-pressure airless spray gun

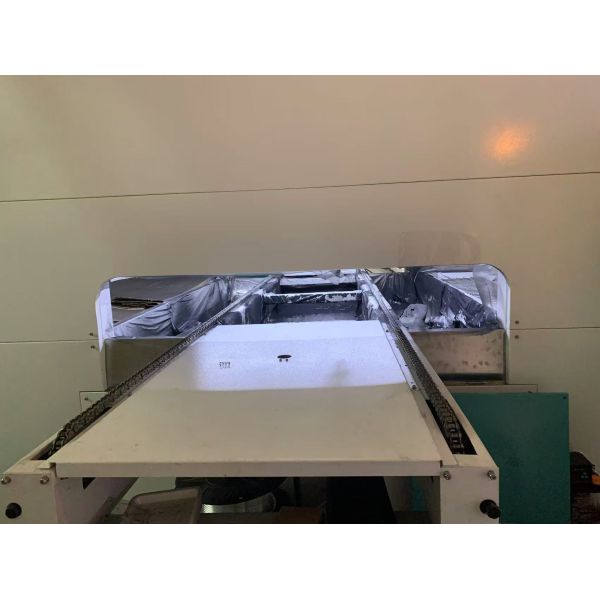

  • Conveyor belt system with workpiece positioning sensors
  • Automatic paint supply & circulation system
  • PLC control panel with HMI touch screen
  • Exhaust & ventilation unit (explosion-proof)
  • Paint recovery & waste treatment module
Product Overview

This automatic internal coating spraying equipment is specifically designed for molded pulp industrial packaging (e.g., egg trays, fruit trays, electronic cushioning packaging). It uses programmable robotic arms to evenly apply water-based or solvent-based functional coatings (waterproof, oil-proof, anti-static) onto the inner surface of pulp molded products. The system ensures consistent film thickness, reduces overspray, and increases coating material utilization by up to 40%. Ideal for medium to large-scale production lines.

Technical Specifications
Model RICS-MP680
Max. workpiece size (L×W×H) 800×600×300 mm
Coating speed 0-1500 mm/s (adjustable)
Repeat positioning accuracy ±0.05 mm
Spray gun type Airless / HVLP (optional)
Coating material viscosity range 20-500 cP
Power supply 380V/50Hz, 3-phase
Air consumption 0.6-0.8 MPa, 1.2 m³/min
Overall dimensions (L×W×H) 3200×1800×2200 mm
Weight 1850 kg
Applications
  • Molded pulp industrial packaging: electronic product trays, medical device packaging, industrial shock-absorbing liners
  • Internal surface coating for water/oil/grease resistance
  • Anti-static or anti-corrosion coating for special storage requirements
Customization Options

Every system is fully customizable: we can adjust robot arm reach, number of spray guns, conveyor width, coating material compatibility, control software interface, and integration with existing production lines. Custom jigs/fixtures for non-standard workpiece shapes are also available.

Key Features
Vision-guided path planning for complex 3D internal surfaces
Automatic nozzle cleaning and anti-clogging design
Real-time flow rate and pressure monitoring
Energy-saving recirculation of unused coating
Easy-to-use recipe management (store 100+ product profiles)
Stainless steel construction for corrosion resistance
Support and Services
  • 24/7 online remote troubleshooting
  • On-site installation & commissioning
  • Operator training (video manuals + in-person)
  • 12-month warranty, lifetime spare parts supply
  • Annual maintenance contract available
Packing and Shipping
  • Packed in plywood export crates with anti-rust film
  • Seaworthy packaging, suitable for container shipping (40'HC)
  • Delivery: FOB Shanghai or CIF term
  • Shipping weight ≈ 2100 kg, volume ≈ 12 m³
Frequently Asked Questions
Q: Can the system coat very deep internal cavities?

A: Yes, with optional extended nozzle and articulated robot arm - customizable reach up to 500 mm.

Q: What types of coatings are compatible?

A: Water-based acrylic, silicone, wax emulsions, solvent-based lacquers, and UV-curable coatings.

Q: How long does it take to switch between different product shapes?

A: Less than 5 minutes via recipe recall and quick-change tooling (customizable quick-clamp jigs).
