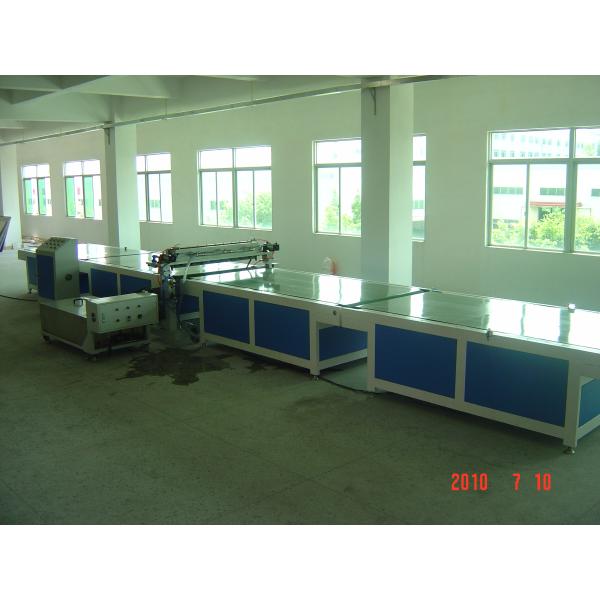

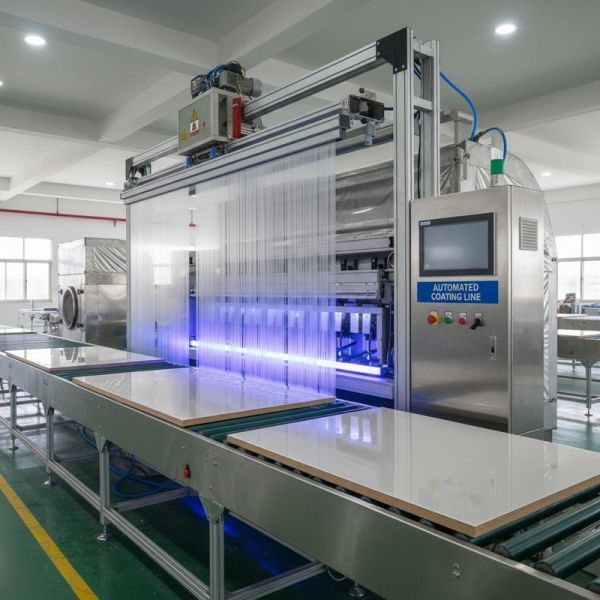

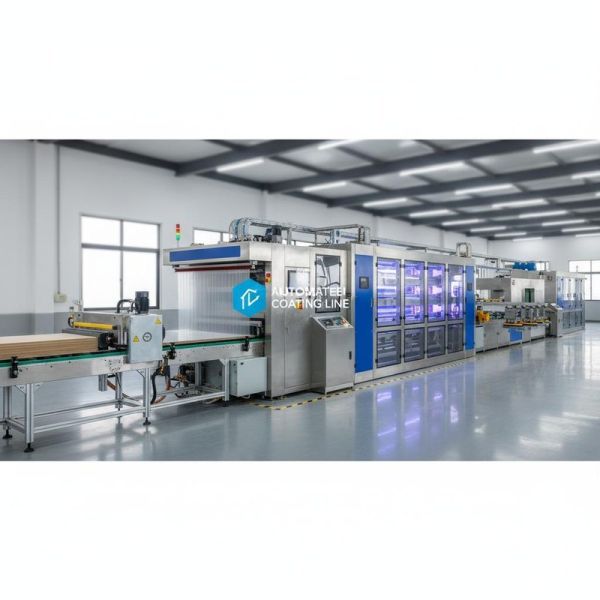

Automated High-Gloss Panel Furniture Curtain Coating Line for MDF Board
Automated High-Gloss Panel Furniture Curtain Coating Line for MDF Board
Automated High-Gloss Panel Furniture Curtain Coating Line for MDF Board
Automated High-Gloss Panel Furniture Curtain Coating Line for MDF Board
Automated High-Gloss Panel Furniture Curtain Coating Line for MDF Board
Automated High-Gloss Panel Furniture Curtain Coating Line for MDF Board
Automated High-Gloss Panel Furniture Curtain Coating Line for MDF Board
Automated High-Gloss Panel Furniture Curtain Coating Line for MDF Board
Automated High-Gloss Panel Furniture Curtain Coating Line for MDF Board
Automated High-Gloss Panel Furniture Curtain Coating Line for MDF Board
Automated High-Gloss Panel Furniture Curtain Coating Line for MDF Board
Automated High-Gloss Panel Furniture Curtain Coating Line for MDF Board
Automated High-Gloss Panel Furniture Curtain Coating Line for MDF Board
Automated High-Gloss Panel Furniture Curtain Coating Line for MDF Board
Specifications
Brand Name :
OSMANUUV
Model Number :
OSM-LT-1320
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Negotiation
Delivery Time :
45days
Packaging Details :
WOOD PACKAGING
Product Name :
Curtain coating line
Dimensions :
6000 mm (L) × 2200 mm (W) × 1400 mm (H)
Belt Height from Floor :
Adjustable, 850-900 mm
Processable Thickness :
3-80mm
Minimum Processable Length :
300mm
Electric Power :
117KW
Paint Tank Capacity :
250KG
Floor Space :
114.8 square meters
Description
Automated High-Gloss Panel Furniture Curtain Coating Line for MDF Board
Product Overview

This high-speed curtain coating line is engineered for furniture manufacturers seeking a flawless, high-gloss finish on flat panel components like cabinet doors, table tops, and shelving. It applies a perfect, uniform curtain of UV coating onto the substrate, resulting in a durable, mirror-like surface with exceptional clarity and scratch resistance. Ideal for high-volume production of modern, high-gloss furniture.

Production Line Composition
  • Automatic panel feeder
  • Curtain coating applicator
  • UV curing device
  • Cooling section
Technical Parameters
Parameter Category Details & Specifications
Model OSM-LT-1320
Suitable Substrate MDF, Particle Board, Plywood, Pre-laminated Panels
Coating Method Precision Curtain Coating
Max. Panel Width 2800 mm (Customizable)
Max. Panel Thickness 50 mm
Line Speed 0-10 m/min
Coating Type UV Coatings (Clear, Pigmented)
Curing Method High-Power UV Curing Lamp
Paint Consumption 60～200 g/㎡
Applications

High-gloss cabinet doors, table tops, office furniture panels, and decorative wall panels.

Customization Options

The line can be customized with different coating head widths, specific UV lamp power for optimal curing, and integration with pre- and post-processing equipment.

Key Features
  • Perfect High-Gloss Finish: Delivers a mirror-like, defect-free surface
  • Extremely High Efficiency: Suitable for continuous, high-throughput production lines
  • Minimal Coating Waste: Precise application reduces material consumption
  • Instant Curing: UV curing allows for immediate handling and stacking
Support and Services

On-site installation supervision, comprehensive operator training on maintenance and operation, and readily available spare parts.

Packing and Shipping

All modules are crated in heavy-duty, weatherproof wooden cases. Sensitive components like the coating head are packed separately with special cushioning.

Frequently Asked Questions
Q: Why is curtain coating ideal for high-gloss finishes?
A: Curtain coating applies a continuous, uninterrupted film of coating that levels perfectly before curing, eliminating the orange peel effect or streaks common in spray methods, which is essential for achieving a perfect gloss.
