Specifications
Brand Name :
OSMANUV
Model Number :
OSM-PT-1320
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Negotiation
Delivery Time :
35days
Packaging Details :
WOOD PACKAGING
Voltage :
220V,380V,380V/220V,220V/380V,380V/50HZ
Condition :
New
Dimension(l*w*h) :
Customized Size,40000*2950*2300MM
Warranty :
1 Year
Manning level :
3-5
Product name :
spray coating machine line
Coating speed :
1-15m/min
Description
Pulp Molded Food Container Waterproof Coating High-Efficiency Automatic Spraying Production Line

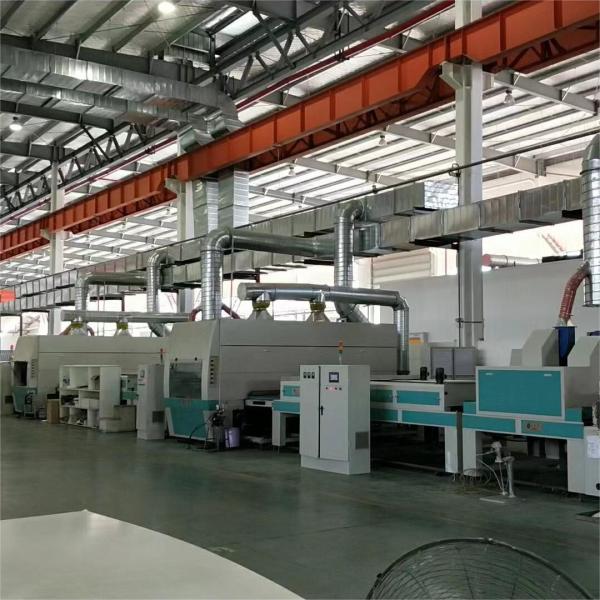

Production Line Composition
  • Automatic loading system
  • 6-axis robotic spraying units
  • Conveyor system with precision positioning
  • UV curing tunnel (optional)
  • Drying oven with temperature control
  • Unloading and stacking system
  • PLC control system with HMI interface
  • Exhaust and filtration system
Product Description

This automated spraying production line is specifically designed for applying waterproof coatings to pulp molded food containers. It ensures uniform coating coverage, excellent barrier properties, and high production efficiency while meeting food safety standards.

Technical Parameters
Parameter Category Specification Notes
Production Capacity 800-1200 pcs/hour Customizable based on product size
Coating Thickness 20-50μm Precision controllable
Positioning Accuracy ±0.5mm High precision robotic system
Line Speed 2-8 m/min Adjustable via VFD
Power Supply 380V/50Hz/3Phase Customizable voltage available
Air Consumption 1000L/min @ 0.6MPa Clean dry air required
Application

Specifically designed for waterproof coating application on pulp molded food containers, tableware, and packaging products requiring moisture resistance.

Customization

Highly customizable spraying patterns, conveyor speed, drying temperature, and coating thickness to meet specific product requirements and production volumes.

Key Features
  • Automated Operation: Reduced labor costs and consistent quality
  • Precision Coating: Uniform coating thickness control
  • Food Safety: Meets FDA and EU food contact standards
  • Energy Efficient: Optimized energy consumption design
Support and Services

Installation supervision, operator training, technical support, spare parts supply, and regular maintenance services with 12-month warranty.

Packing and Shipping

Weatherproof wooden crates with internal shock-absorbing materials. All components clearly labeled and packed separately. Shipping via sea freight or air freight.

Frequently Asked Questions
What is the minimum order quantity?
We offer customizable solutions for both small and large production volumes, with MOQ starting from 1 complete production line.
Can the line handle different container sizes?
Yes, the system is customizable with quick-change fixtures and programmable recipes for different product sizes.
