60KW Mitsubishi Servo Motor Spray Coating Equipment For Door Panel
60KW Mitsubishi Servo Motor Spray Coating Equipment For Door Panel
60KW Mitsubishi Servo Motor Spray Coating Equipment For Door Panel
60KW Mitsubishi Servo Motor Spray Coating Equipment For Door Panel
60KW Mitsubishi Servo Motor Spray Coating Equipment For Door Panel
60KW Mitsubishi Servo Motor Spray Coating Equipment For Door Panel
60KW Mitsubishi Servo Motor Spray Coating Equipment For Door Panel
60KW Mitsubishi Servo Motor Spray Coating Equipment For Door Panel
60KW Mitsubishi Servo Motor Spray Coating Equipment For Door Panel
60KW Mitsubishi Servo Motor Spray Coating Equipment For Door Panel
60KW Mitsubishi Servo Motor Spray Coating Equipment For Door Panel
60KW Mitsubishi Servo Motor Spray Coating Equipment For Door Panel
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-PT-920PB
Certification :
ISO9001 And CE
Place of Origin :
CHINA
MOQ :
1 Set
Payment Terms :
T/T,Western Union
Delivery Time :
35-45 Working days
Packaging Details :
Wooden Box
Price :
Negotiable
Supply Ability :
According to customer's demand
Product type :
newsprint paper,paper making machine,writing paper
Processing type :
Paper Slitting and Rewinding Machine,daily life use paper,Pulp molding type
Voltage :
220V50HZ/380V50HZ
Power(w) :
60KW
Warranty :
One Year
Working speed :
50-100m/min,180m/min
Net paper width :
920mm
Color :
As you like
Feature :
Energy saving
Description

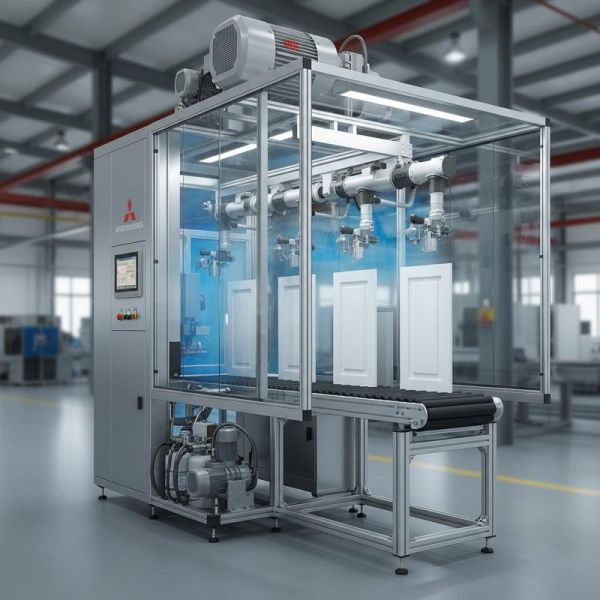

60KW Mitsubishi Servo Motor Spray Coating Equipment For Door Panel
Product Overview

This spray coating machine with Mitsubishi servo motor is designed for industrial applications including floor panels, door panels, mobile phone cases, and car frame factory operations. It handles various coatings such as real stone paint and water-in-water nano-color glaze on materials like calcium silicate board, cement fiber board, and steel plates.

Technical Specifications
1 Suitable for coatings on calcium silicate board, cement fiber board, steel plate and new building materials surface spraying real stone paint, water-in-water nano-color glaze, etc.
2 Japanese Mitsubishi PLC man-machine interface, Mitsubishi servo motor, inverter and other imported electrical components ensure mechanical stability
3 Spray system uses American Graco pumps and Graco large-caliber spray guns for precise spray metering control
4 Slider module system: Taiwan high-speed module system with stable performance and durability
5 Electrical components include Schneider contactor, Mitsubishi servo, Japanese Hequan switches for stable mechanical performance
6 Effective spraying width: 920mm
Conveyor System
1 Acid and alkali resistant PU belt for product transportation with bottom paint recovery and cleaning devices to prevent paint residue and back panel sticking, effectively reducing paint waste
2 Conveying speed: 1-5 m/min
Painting System
1 4 American GRACO automatic spray guns (spray gun caliber: 1.1mm)
2 Taiwan Polaroid pressure regulating and oil supply system ensures perfect spraying quality
3 Two groups of spraying tracks with 2 GRACO automatic spray guns each, spraying at different angles; controlled by OMRON infrared photoelectric induction
4 Maximum spray gun stroke: 3400mm reciprocating with OMRON electric eye control for any path movement within maximum stroke range
Spray Booth Air Filtration System
1 High-efficiency air filter above automatic spraying machine effectively filters airborne dust and maintains clean spraying environment
2 Exhaust gas emission: paper paint filter system
Mechanical Configuration
1 Front glass window for easy observation of sprayer working condition
2 Two high-efficiency fans for exhaust and fresh air intake through filter system
3 Housing material: 1.5 cold-rolled bent and welded plates with computer color painting; inner wall made of 304# stainless steel mirror panel
4 Electrical components: Japan OMRON relay, CKC delay, Schneider contactor, Taiwan motor Chint leakage circuit breaker
5 Safety devices: leakage circuit breakers, control circuit fuses, emergency switches complying with international safety standards
Machine Control Method
1 Man-machine interface: Weilun
2 Control part: Delta PLC control
3 Sliding rail drive part: Mitsubishi servo motor
Warranty & Maintenance
Warranty Whole machine: 1 year; Electrical part: 6 months (air filter not covered by warranty)
Maintenance
  • Check grounding protection daily before use
  • Inspect oil and gas pipes for leaks before operation
  • Regularly check hoses and connecting parts for leaks
60KW Mitsubishi Servo Motor Spray Coating Equipment For Door Panel 60KW Mitsubishi Servo Motor Spray Coating Equipment For Door Panel 60KW Mitsubishi Servo Motor Spray Coating Equipment For Door Panel
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We provide sample testing with video documentation, factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Fully compliant with GMP & ISO standards with CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
