Calcium Silicate Board Spray Coating Machine 3.75KW
Calcium Silicate Board Spray Coating Machine 3.75KW
Calcium Silicate Board Spray Coating Machine 3.75KW
Calcium Silicate Board Spray Coating Machine 3.75KW
Calcium Silicate Board Spray Coating Machine 3.75KW
Calcium Silicate Board Spray Coating Machine 3.75KW
Calcium Silicate Board Spray Coating Machine 3.75KW
Calcium Silicate Board Spray Coating Machine 3.75KW
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-TB-1320T type
Certification :
ISO9001 And CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Delivery Time :
35-45 Working days
Packaging Details :
Wooden Box
Supply Ability :
According to customer's demand
Weight :
2000kg
Voltage :
220V50HZ
Power(w) :
3.75KW
Warranty :
1 Year
Net paper width :
1320mm
Working speed :
1-10m/min
size: :
1800mm length × 1220mm width × 850mm . (Subject to actual size).
Product name :
Transverse conveyor
Description

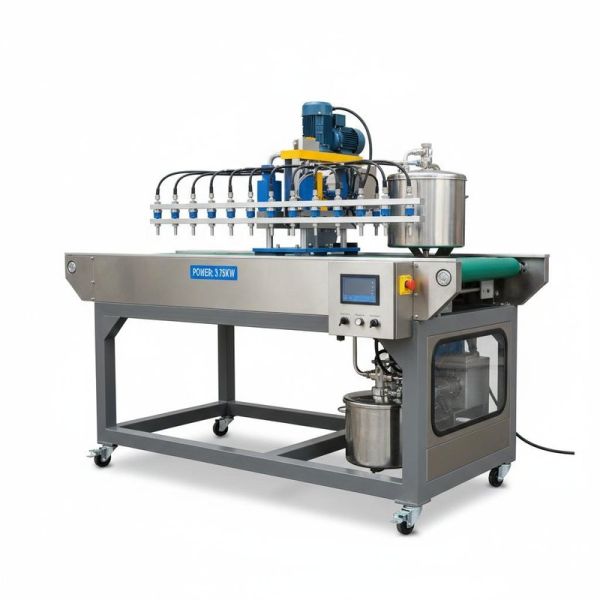

Calcium Silicate Board Spray Coating Machine 3.75KW
With the development of industrial technology, pure handwork can no longer meet market demands. Spraying has evolved from manual to industrial automation, with increasing automation levels. Consequently, spraying production lines are becoming more widely applied across many areas of the national economy.
Automatic Feeder Specifications
1 Product Name: Automatic blanking machine
2 Model: OSM-TB-1320T type
3 Features: Suitable for conveying and unloading work pieces for flow operations such as 1.22*2.44 calcium silicate board, cement pressure board and similar materials
4 Mechanical Size: 1800mm length × 1220mm width × 850mm height, one set (Customizable according to actual needs)
5 Power Supply Voltage: 220V, 50HZ, three-phase five-wire system
6 Power: 3.75KW
7 Power System: Divided into transmission power (roller transmission) and cylinder rapid expansion/contraction push plate power
8 When automatically started, the hydraulic press reaches the bottom and begins working automatically at the designated position; manual control switch available when needed for convenient exchange operation
9 Photoelectric: Equipped with Omron photoelectric system to automatically identify plates
10 Working Height: 850mm-900mm (belt height from ground), roller height equipped with position indicator
11 Material: Shell made by bending and welding 1.5mm cold-rolled plates, surface treated with electrostatic powder paint, equipped with adjustable foot cups for sturdy durability
Calcium Silicate Board Spray Coating Machine 3.75KW
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will test your samples on our machines and provide video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production fully complies with GMP & ISO standards, and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
