380V 50HZ Two Door Constant Temperature Oven, W1300mm Blast Drying Oven
Product Specifications
| Equipment Name |
GX-RK-23 Precision Constant Temperature Oven |
| Power Supply |
AC380V 50HZ |
| Internal Dimensions |
900mm (width) × 1300mm (depth) × 1650mm (height)
2 layers total
Screen version: 790mm (min width) - 880mm (max width) |
| External Dimensions |
1400mm (width) × 1550mm (depth) × 1900mm (height) |
Key Features
- Temperature Range: Room temperature to 150°C (adjustable)
- Temperature Controller: Japanese OMRON E5AN automatic temperature controller
- Temperature Uniformity: ±3% (empty furnace test)

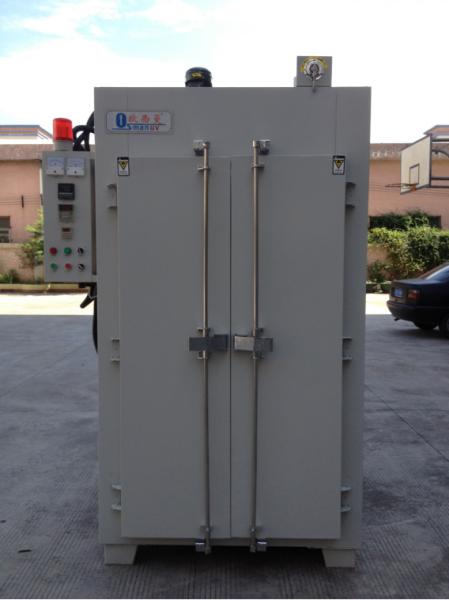

- Double door design with explosion-proof door buckle
- Temperature resistant silicon glue assembly for strong, compact construction
- American-made buttons for durability and safety

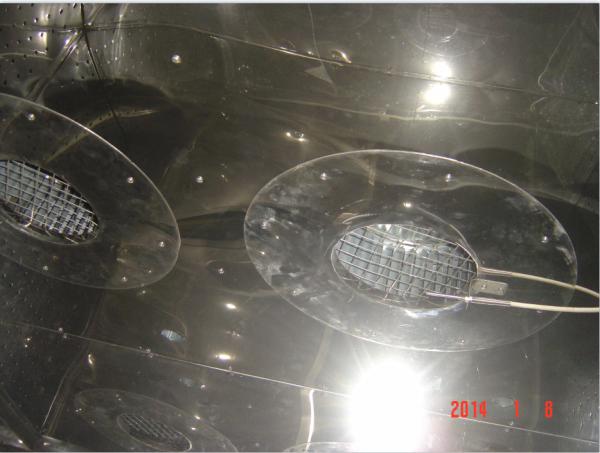

- Horizontal air intake for even baking across all mesh plate layers

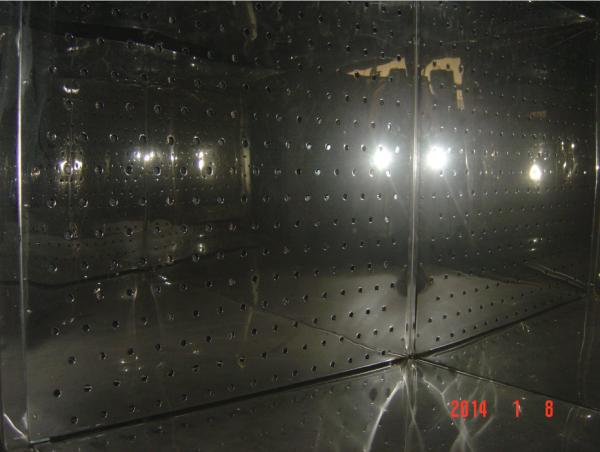

- Construction: SUS 304# mirror stainless steel, 1.5mm cold rolled plate
- 5.0mm thick bottom plate with high temperature paint, computer white finish
- Advanced insulation cotton with 100mm thickness on all six sides
- Low surface temperature, energy efficient and environmentally friendly
- Digital 999-minute timer with buzzer alarm and indicator light
- Taiwan Yin-Ming brand solid state relay and temperature control head
- Over-temperature alarm protection system
- Air supply system maintains temperature between 20°C and 150°C
- Taiwan Dongyuan high temperature hot air oven long shaft motor (1HP with 9-inch air blade)
- Comprehensive safety protection: over-temperature protector, motor overload current protection, control line insurance, electric heating over-current protection, no fuse switch
- Equipped with air inlet, air outlet, and 5M power cord
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We can test your samples on our machines and provide video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards, and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
