Specifications
Brand Name :
Osmanuv
Model Number :
OSM-GS-620 type
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Delivery Time :
35-45 Working days
Packaging Details :
Wooden Box
Certification :
ISO9001 And CE
Supply Ability :
According to customer's demand
Product Name :
Double roll coating machine
Color :
Computer white / Green / Blue
Effecive width :
620mm
Coating Roll :
Silicone Rollet
Power :
10 KW
Weight :
1500KG
Description

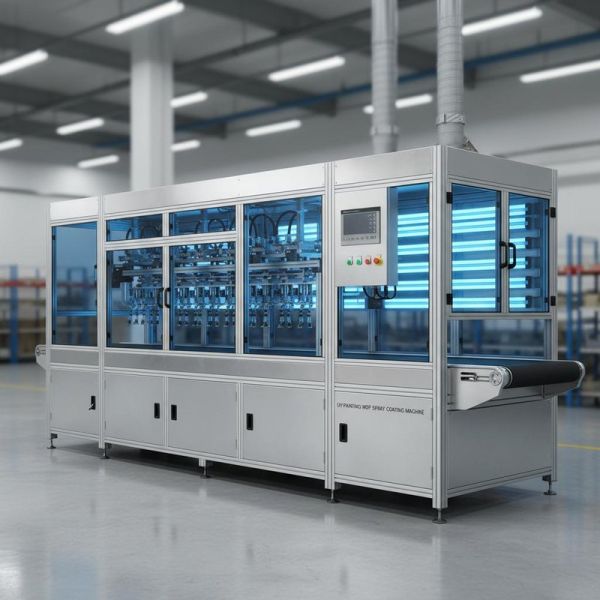

Effective Width UV Painting MDF Spray Coating Machine 180m/Min 620mm
Product Overview

620mm Effective Width UV Painting Spray Coating Machine with 180m/Min speed. This high-performance coating machine is designed for primer and topcoat applications on various materials including flat wood, MDF, aluminum, panel furniture, and PVC panels.

Key Features
  • Produces uniform surface coating without ripples or stripes
  • Mirror-like bright finish quality
  • Dual lifting roller coating systems with mechanical and pneumatic control
  • High-quality Japanese polyurethane coating rollers
  • Precision laser rollers for superior coating results
  • Independent hollow deceleration motor drive for each roller
  • Comprehensive safety protection systems
Technical Specifications
Specification Details
Product Name Color Changing Machine
Model OSM-GS-620 Type
Mechanical Size 2000mm (L) × 1500mm (W) × 1520mm (H)
Effective Working Size Width: 620mm, Thickness: 2-80mm, Minimum Length: 300mm
Construction Material 1.5mm cold-rolled plate shell, 100×50mm channel steel frame, 20cm A3 steel plate supporting wall
Coating Roller Diameter: 205mm, Length: 720mm, Japanese polyurethane material, customizable hardness (30-50 degrees)
Measurement Wheel Diameter: 130mm, Length: 720mm, 45# seamless steel pipe, runout <0.05mm
Laser Roller Diameter: 150mm, Length: 720mm, 45# structure, runout <0.05mm, hard chrome plating
Conveyor Roller Diameter: 130mm, Length: 620mm, Japanese rubber material
Scraper Aluminum alloy holder with Swedish imported stainless steel blade
Control System 4 sets of hollow worm gear reducers and frequency converters, independent roller adjustment
Conveying Speed 5-20m/min
Electrical Components OMRON relays, CHNT contactors, Taiwan Delta frequency converters, CKC delays, Izumi switches (CE compliant)
Safety Features
  • Leakage circuit breaker protection
  • Motor overload protection
  • Emergency stop switch
  • Control circuit fuse protection
  • International safety standard compliance
Effecive Width Uv Painting MDF Spray Coating Machine 180m/Min 620mm Effecive Width Uv Painting MDF Spray Coating Machine 180m/Min 620mm
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I verify your machine quality?
We provide sample testing on our machines with video documentation. Factory visits are welcome. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production follows GMP & ISO standards, and our products have passed CE certification for export.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
