Specifications
Brand Name :
TaiMI
Model Number :
TM-12C-1mhz RED Ultrasonic flow sensor
Certification :
ROHS/REACH
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western Union,MoneyGram,T/T,PAYPAL
Supply Ability :
10000000/Month
Delivery Time :
2 weeks
Packaging Details :
safety packing
TYPE :
12mm updated newest type 1MHZ flow transducer water flow sensor
Material :
Polymer material + titanium alloy
Frequency :
1MHZ ultrasonic flow sensor
USE :
liqiud flow meter, or as liquid level sensor
Size :
12mm small size flow sensor
Case material :
Epoxy resin potting
internal material :
Piezoelectri c ceramics
Workingtem perature ℃ :
5~100
Protection class :
IP68
MPa :
2.6
environment :
Lead - free Transducer
Description

Newest type Home water meter application 1mhz ultrasoic sensor water flow sensor

TAIMI 12MM 1Mhz balck Ultrasonic Flow Sensor

nvironmentally friendly piezo material: Lead - free

- Conform to international potable water standards

- High and low temperature resistance, high pressure resistance

- High stability and reliability

Ultrasonic flow sensor, the core element of ultrasonic flow meters, is a liquid-medium sensor.It can be used in liqiud flow meter, or as liquid level sensor.

Newest type Home water meter application 1mhz ultrasoic sensor water flow sensor

Newest type Home water meter application 1mhz ultrasoic sensor water flow sensor


TM-12SL-1MHZ BLACK

Part NO.

TM-12SL-1MHZ BLACK

resonant frequency

920±30KHZ

static capacitance

450pf±15%

Resonant Impedance

＜300Ω

Waterproof

IP68

operating temperature

0.1～80℃

withstand voltage

＜2.6Mpa

Transmitting beam Angle

5°-10°

receive sensitivity

≥120mv(half-wave)

shell material

Polymer material

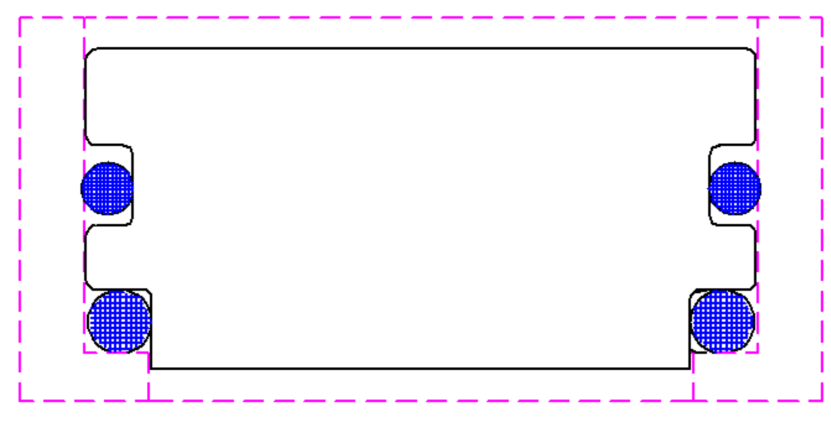

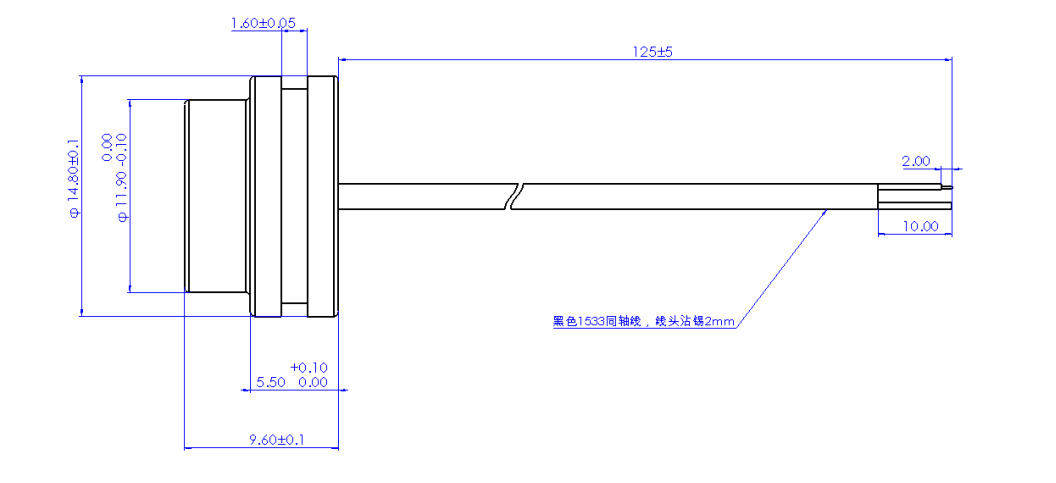

installation dimension

φ15mm

operating voltage

≥3v

sealing method

Epoxy resin potting

lead wire location

Sensor center

Cable type

double wired conductor


Test Method

1 Test Conditions

The test should be conducted at the temperature of (25±3) ℃ and the relative humidity of 40% ~ 70% R.H. In the environment.

2 Test Method

Project

test method

center frequency(Fr)

Measurement of thickness vibration mode by Agilent5100E impedance analyzer

Resonant Impedance(R0)

electrostatic capacity(CP)

LCR meter,1KHz/1V

Precautions

1. The ceramic body of the sensor chip is mainly composed of lead zirconate titanate ceramics. Please ensure that the ceramic body complies with local environmental regulations when discarded.

2. The performance parameters mentioned in the specification refer to isolated components. Please fully estimate the influence of other factors when used in the whole circuit.

3. Sensor conductor, red is positive electrode, black is negative electrode. Needle insertion: long for the positive pole, short for the negative pole.

4. If you have any question about this specification, please contact and negotiate.
