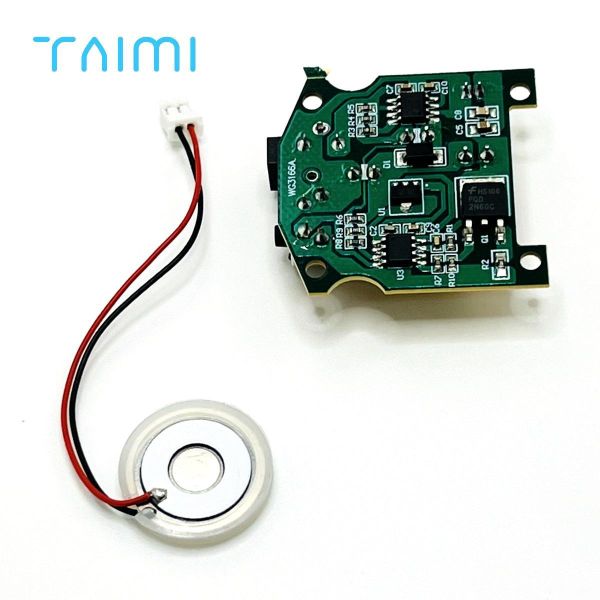

2W Power 8um Aperture 108-113KHz Frequency Piezoelectric Ultrasonic Atomizing Transducer with PCB
2W Power 8um Aperture 108-113KHz Frequency Piezoelectric Ultrasonic Atomizing Transducer with PCB
2W Power 8um Aperture 108-113KHz Frequency Piezoelectric Ultrasonic Atomizing Transducer with PCB
2W Power 8um Aperture 108-113KHz Frequency Piezoelectric Ultrasonic Atomizing Transducer with PCB
Specifications
Maximum Evaporation :
40~60ML/H
Output Voltage :
3~5V DC
Working Depth :
40-90MM
Diameter :
16mm/20MM/25MM
Power :
2W
Material :
PZT-4 PZT-5 PZT-8
Surface Material :
Glass Ceramic
Life Time :
6000hours
Brand Name :
TAIMI
Model Number :
TM-16mm-108khz
Certification :
ISO,RoHS CE
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100000/month
Delivery Time :
10~20days
Packaging Details :
safe packaging
Working Temperature :
1-50℃
Frequency :
108-113KHz
Description
2W Piezo Nebulizer Ultrasonic Micro Piezoelectric Transducer Atomizer 8um With PCB
Product Overview

Piezo Nebulizer Ultrasonic Micro Piezoelectric Transducer Atomizer 8um + PCB

Application: Medical equipment, cosmetics, and related industries

Frequency: 108kHz ±5kHz

Aperture: 2-10μm

Key Features
  • Food grade materials for safe operation
  • Professional laser drilling technology
  • Uniform pore size distribution
  • Pore through rate exceeding 98%
  • Even atomization performance
  • Simultaneous negative ion production and atomization
  • Cold mist generation for cooling and humidifying
  • Enhanced oxygen absorption capability
  • Therapeutic benefits for respiratory conditions
  • Skin hydration without high-temperature burns
  • Air purification through negative ion action
Technical Specifications
Parameter Specification
Type TM-16MM-108KHZ
Resonant Frequency (fr) 108kHz ±3kHz
Resonant Resistance (Ro) Max. 150Ω
Capacitance (Cp) 3600pF ±15%
Maximum Input Voltage 60 Vp-p
Input Voltage DC 3-5V
Maximum Input Power 1.5W (Normal use 1.5W)
Lifetime Over 5,000 hours
Storage Temperature -40℃ to 85℃
Construction & Materials

The piezoelectric ceramic surface is manufactured using high-temperature sintering sealing glass glaze at 700-800°C. This construction provides:

  • Bright, aesthetically pleasing appearance
  • Strong acid and alkali resistance
  • Extended operational lifetime
  • Stable performance verified through extensive testing
  • Small fog particles with large atomization capacity
2W Power 8um Aperture 108-113KHz Frequency Piezoelectric Ultrasonic Atomizing Transducer with PCB 2W Power 8um Aperture 108-113KHz Frequency Piezoelectric Ultrasonic Atomizing Transducer with PCB 2W Power 8um Aperture 108-113KHz Frequency Piezoelectric Ultrasonic Atomizing Transducer with PCB 2W Power 8um Aperture 108-113KHz Frequency Piezoelectric Ultrasonic Atomizing Transducer with PCB 2W Power 8um Aperture 108-113KHz Frequency Piezoelectric Ultrasonic Atomizing Transducer with PCB
Packaging & Storage

Packaging: 500PCS/BOX, 5000PCS/CARTONS (G.W.: 10KGS)

Storage Conditions:

  • Do not store in environments with relative humidity greater than 75%
  • Avoid storage in areas containing corrosive gases

Customization Available: Hole size and quantity can be customized according to your requirements. We supply complete sets including PCB and support OEM/ODM services.

Frequently Asked Questions
When can we get the reply?
Any inquiries will be replied within 24 hours.
Can I have samples?
Yes, samples are available. We can send free samples with only freight fees required.
What about minimum order quantity?
No MOQ limit - you can order as few as 1 piece.
What about delivery time?
Samples shipped within 3 days. Production for large quantities: 20-25 days.
What about terms of payment?
T/T, Western Union, PayPal, and L/C accepted.
How will you send the goods to us?
Air shipping (DHL, Fedex, UPS, TNT) and Sea shipping available.
Are you a trading company or manufacturer?
We are a China-based buzzer manufacturer.
Do you support OEM and ODM services?
Yes, we support full customization according to your drawings.
Can you provide driven circuit?
Yes, we can provide complete driven circuit solutions.
Can you solve technical problems for us?
Yes, our technical team provides comprehensive support.
