16mm Piezoelectric Ultrasonic Atomizing Transducer with 108-113KHz Frequency and 3-5V DC for Humidity Control
16mm Piezoelectric Ultrasonic Atomizing Transducer with 108-113KHz Frequency and 3-5V DC for Humidity Control
16mm Piezoelectric Ultrasonic Atomizing Transducer with 108-113KHz Frequency and 3-5V DC for Humidity Control
16mm Piezoelectric Ultrasonic Atomizing Transducer with 108-113KHz Frequency and 3-5V DC for Humidity Control
16mm Piezoelectric Ultrasonic Atomizing Transducer with 108-113KHz Frequency and 3-5V DC for Humidity Control
16mm Piezoelectric Ultrasonic Atomizing Transducer with 108-113KHz Frequency and 3-5V DC for Humidity Control
16mm Piezoelectric Ultrasonic Atomizing Transducer with 108-113KHz Frequency and 3-5V DC for Humidity Control
16mm Piezoelectric Ultrasonic Atomizing Transducer with 108-113KHz Frequency and 3-5V DC for Humidity Control
16mm Piezoelectric Ultrasonic Atomizing Transducer with 108-113KHz Frequency and 3-5V DC for Humidity Control
16mm Piezoelectric Ultrasonic Atomizing Transducer with 108-113KHz Frequency and 3-5V DC for Humidity Control
Specifications
Life Time :
6000hours
Working Temperature :
1-50℃
Brand Name :
TAIMI
Model Number :
TM-16mm-108khz Piezoelectric Ultrasonic Atomizing Transducer
Certification :
ISO,RoHS CE
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100000/month
Delivery Time :
10~20days
Packaging Details :
safe packaging
Output Voltage :
3~5V DC
Diameter :
16mm
Working Depth :
40-90MM
Material :
PZT-4 PZT-5 PZT-8
Surface Material :
Glass Ceramic
Maximum Evaporation :
40~60ML/H
Power :
2W
Frequency :
108-113KHz
Description
16mm Piezoelectric Ultrasonic Atomizing Transducer 3-5V DC For Humidity Control
Product Overview

Piezoelectric Ultrasonic Atomizing Transducer designed specifically for humidity control applications. This advanced transducer utilizes piezoelectric ceramic technology to create fine water mist for effective humidification.

Key Features
  • Produces negative ions and atomization simultaneously for sterilization and smoke deposition
  • Generates cold water mist for cooling and humidifying air
  • Enhances oxygen absorption and carbon dioxide emission capabilities
  • Provides therapeutic benefits for respiratory conditions and asthma
  • Replenishes skin moisture without high-temperature burns
  • Removes second-hand smoke, formaldehyde, carbon monoxide, and bacteria
  • Reduces nervous tension and fatigue while promoting relaxation
Technical Specifications
Parameter Specification
Model Type TM-16MM-108KHZ
Resonant Frequency (fr) 108kHz ± 3kHz
Resonant Resistance (Ro) Maximum 150Ω
Capacitance (Cp) 3600pF ± 15%
Input Voltage DC 3-5V
Maximum Input Power 1.5W
Maximum Voltage 60 Vp-p
Operating Temperature -40℃ to 85℃
Construction Details

The piezoelectric ceramic surface features high-temperature sintering sealing glass glaze at 700-800°C, providing excellent acid and alkali resistance with a lifespan exceeding 5,000 hours. The atomizing film delivers stable performance with fine fog particles and substantial atomization capacity.

Product Images
16mm Piezoelectric Ultrasonic Atomizing Transducer with 108-113KHz Frequency and 3-5V DC for Humidity Control 16mm Piezoelectric Ultrasonic Atomizing Transducer with 108-113KHz Frequency and 3-5V DC for Humidity Control 16mm Piezoelectric Ultrasonic Atomizing Transducer with 108-113KHz Frequency and 3-5V DC for Humidity Control 16mm Piezoelectric Ultrasonic Atomizing Transducer with 108-113KHz Frequency and 3-5V DC for Humidity Control

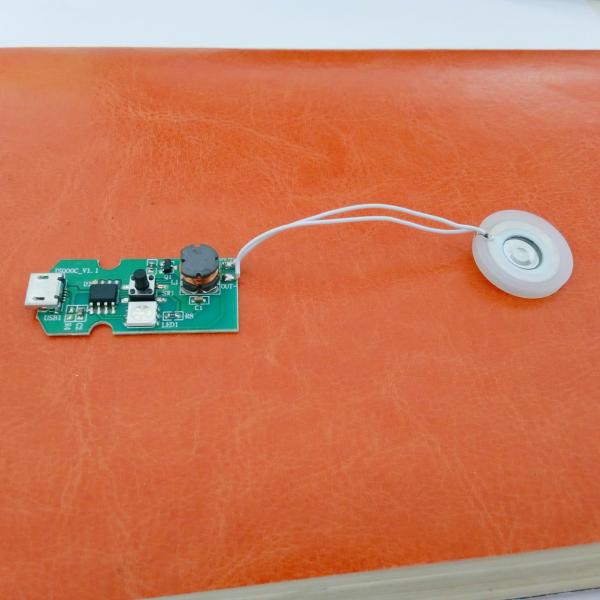

Customization Options: Hole size and quantity can be customized according to customer requirements. We provide complete product sets including PCB and support OEM/ODM services.
Packaging Information

500 pieces per inner box, 5000 pieces per outer carton. Gross weight: 10kg.

Storage Conditions
  • Standard storage temperature: -40℃ to 85℃
  • Avoid storage in environments with relative humidity greater than 75%
  • Do not store in corrosive gas environments
Frequently Asked Questions
Question Answer
Response Time All inquiries replied within 24 hours
Sample Availability Samples available with freight charges only
Minimum Order Quantity No MOQ limit - even 1 piece available
Delivery Time Samples: 3 days; Production: 20-25 days
Payment Terms T/T, Western Union, PayPal, L/C
Shipping Methods Air (DHL, FedEx, UPS, TNT) and Sea shipping
Manufacturer Status Direct manufacturer in China
OEM/ODM Support Full customization services available
Technical Support Complete technical assistance provided
Interested in our product?

Please feel free to send us your inquiry. We will provide competitive pricing and comprehensive technical support.
