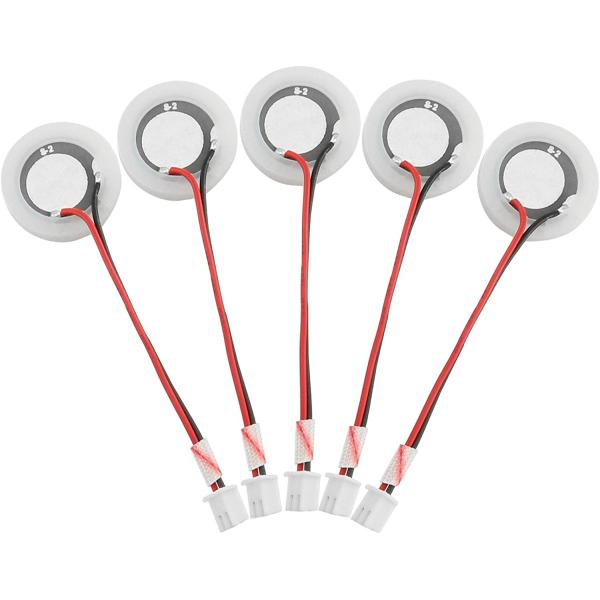

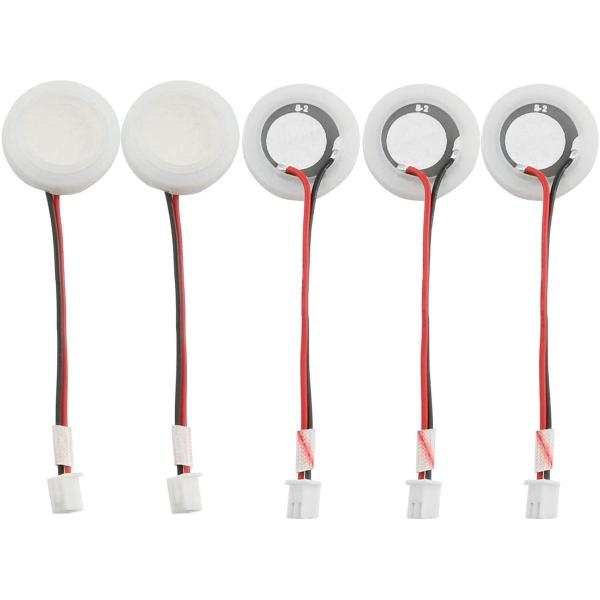

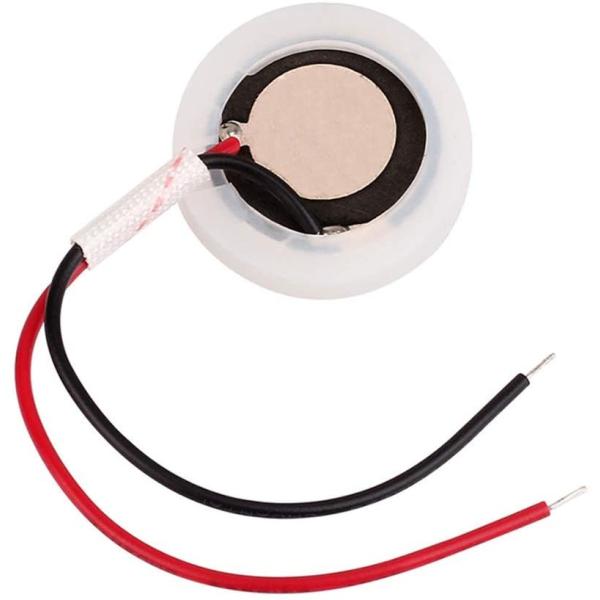

RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers
RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers
RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers
RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers
RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers
RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers
RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers
RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers
Specifications
Input Current :
0.8A
Input Voltage :
110-250V, 50/60Hz
Frequency :
1.7MHz
Maximum Evaporation :
350ML/H
Material :
PTZ
Working Depth :
40-90MM
Working Temperature :
-20-50℃
Shape :
round/ring/square
Noise Level :
<36db
Brand Name :
TAIMI
Model Number :
TM-20MM-2.4MHZ/1.7MHZ Ultrasoinc atomizer
Certification :
ISO,RoHS CE
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100000/month
Delivery Time :
10~20days
Packaging Details :
safe packaging
Size :
25mm
Description
RoHS CE 25mm Round Piezo Ceramic Disc Ultrasonic Atomizing Transducer
1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Transducer Water Fog Atomizing Nozzle
Product Description
  • Material: Metal and Ceramic
  • Size: DIA 16mm, 3.5mm Height
  • Fogger ceramic disc with low noise operation and low consumption
  • Used for industrial humidifying and garden fog applications
  • Long operation life with high stability and reliability
Applications
  • Positive and negative piezoelectric effect applications
  • Piezoelectric Ceramic Buzzer | Speaker
  • Piezoelectric ceramic pickup
  • Piezoelectric transformer
  • Piezoelectric ceramic igniter
  • Ultrasonic beauty equipment
  • Sonar and ultrasonic flowmeter
  • Ultrasound medical equipment
RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers
Key Features
  • Produces negative ions and atomization simultaneously for sterilization and smoke deposition
  • Generates cold water mist for air cooling and humidifying effects
  • Cold fog with negative ions improves oxygen absorption and carbon dioxide emission
  • Provides therapeutic effects for respiratory diseases and asthma
  • Replenishes skin moisture without high-temperature burns or discomfort
  • Removes second-hand smoke, formaldehyde, carbon monoxide, bacteria and odors
  • Ideal for dry areas, air-conditioned rooms, beauty salons, hotels, hospitals, and offices
Specifications
RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers
RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers
Product Specifications by Size
Model Vibrator Diameter Resonant Frequency Resonant Impedance Atomization Amount Drive Power
20-1.7M Φ20mm 1700±50 KHz Max 2Ω > 400 ml/h 23 W
20-2.4M Φ20mm 2400±50 KHz Max 1Ω > 200 ml/h 12 W
25-1.7M Φ25mm 1700±50 KHz Max 2Ω > 450 ml/h 23 W
16-1.7M Φ16mm 1700±50 KHz Max 2Ω > 250 ml/h 23 W
16-2.4M Φ16mm 2400±50 KHz Max 1Ω > 250 ml/h 23 W
16-3.0M Φ16mm 3000±50 KHz Max 1Ω > 250 ml/h 23 W
Contact Us

If you are interested in our product, please feel free to send us your inquiry. We will try our best to quote competitive pricing for you!

RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers
Related Products
RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers
Our Services
RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers
Packaging & Shipping
RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers
Our Workshop
RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers RoHS CE Certified 1.7MHz 25mm Piezo Ceramic Disc Ultrasonic Atomizing Transducer for Humidifiers
Frequently Asked Questions
Q: When can we get the reply?
A: Any inquiries will be replied within 24 hours.
Q: Can I have samples?
A: Yes. Samples are available. We can send free samples with only freight fees required.
Q: What about minimum order quantity?
A: No MOQ limit - you can purchase even 1 piece. Samples available for testing.
Q: What about delivery time?
A: Samples shipped within 3 days. Production for large quantities takes 20-25 days depending on product and quantity.
Q: What about terms of payment?
A: Payment terms: T/T, West Union, Paypal, and L/C etc.
Q: How will you send the goods to us?
A: Shipping via Air (DHL, Fedex, UPS, TNT) and Sea shipping.
Q: Are you a trading company or manufacturer?
A: We are a China-based buzzer manufacturer.
Q: Do you support OEM and ODM services?
A: Yes, we support custom products according to your specifications.
Q: Can you provide driven circuit?
A: Yes, we can provide driven circuits.
Q: Can you solve technical problems for us?
A: Yes, our technical team will provide full support.
