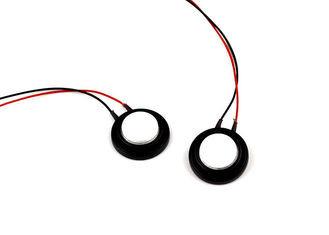

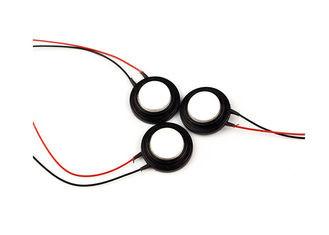

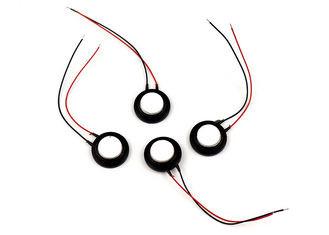

IP65 500Khz Ultrasonic Air Flow Transducer Measuring Pipelines
IP65 500Khz Ultrasonic Air Flow Transducer Measuring Pipelines
IP65 500Khz Ultrasonic Air Flow Transducer Measuring Pipelines
IP65 500Khz Ultrasonic Air Flow Transducer Measuring Pipelines
IP65 500Khz Ultrasonic Air Flow Transducer Measuring Pipelines
IP65 500Khz Ultrasonic Air Flow Transducer Measuring Pipelines
Specifications
Place of Origin :
CHINA
Brand Name :
TAIMI
Certification :
ISO,RoHS CE
Model Number :
TM-20-200khz Ultrasonic Gas Flow Sensor
MOQ :
1000PCS
Price :
negotiable
Packaging Details :
safe packaging
Delivery Time :
10~20days
Payment Terms :
T/T
Supply Ability :
100000/month
Description
Frueqency: 500KHZ±4% Bandwidth(hz): 20kHz
Overall Sensitivity 0 DB=3 Vp-p; Cycle:8; Distance:8cm: -50dB Min Beam Angle(-3dB Full Angle): 5±1°
Electrostatic Capacity: 300PF±20% Minimal Parallel Impedance: 70Ω±30%
Maxim Operating Voltage (Pulse Duty Cycle Ratio 2%): ＜500V Operating Temperature: -20～70℃
Protection: IP65

500Khz Ultrasonic Airflow Transducer measure Air Flow in pipelines.

Specification

model TG05005
Centre working frequency (kHz) 500KHZ±4%
Bandwidth(hz) 20kHz

overall sensitivity

0 dB=3 Vp-p; cycle:8; distance:8cm (transmitter and receiver)

 -50dB min
Beam angle(-3dBfull angle) 5±1°
electrostatic capacity 300PF±20%
Minimal parallel impedance 70Ω±30%

Maxim operating voltage

(Pulse Duty cycle ratio 2%)

 ＜500V
Operating temperature -20～70℃
Protection class IP65

IP65 500Khz Ultrasonic Air Flow Transducer Measuring Pipelines

IP65 500Khz Ultrasonic Air Flow Transducer Measuring Pipelines

Application

500KHz ultrasonic sensor for gas flow measurement.

IP65 500Khz Ultrasonic Air Flow Transducer Measuring Pipelines
