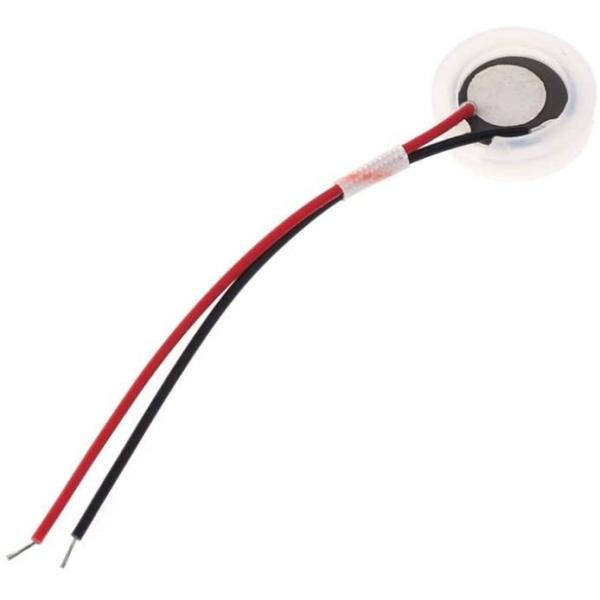

1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers
1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers
1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers
1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers
1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers
1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers
Specifications
Working Temperature :
1-50℃
Noise :
<36db
Maximum Evaporation :
350ML/H humidifier
Input Voltage :
110-250V, 50/60Hz
Working Depth :
40-90MM
Size :
20*1.2mm
Material :
PTZ
Input Current :
0.8A
Frequency :
1.7MHz
Brand Name :
TAIMI
Model Number :
TM-20MM-2.4MHZ/1.7MHZ Ultrasoinc atomizer
Certification :
ISO,RoHS CE
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100000/month
Delivery Time :
10~20days
Packaging Details :
safe packaging
Output Voltage :
24V DC
Description
ISO 60mm Cable Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc
Product Overview

Microporous Piezo Electric Disc Ultrasonic Vibration Plate Atomizers Transducer For Mist Humidifier

Ultrasonic atomizing transducer, used for ultrasonic atomizer, is one of the main products of TAIMI. This product is made from our independently developed piezoelectric ceramic and has the advantages of excellent temperature stability and piezoelectric effect. Its advanced electrode-protecting membrane technology features good acid and alkali-resistant performance. With its high performance, our atomizing transducer series has earned universal recognition among our customers.

Key Features
  • Adopt self-developed and produced piezoelectric materials with superior performance
  • Excellent temperature stability to ensure stable and effective operation for long periods
  • Advanced electrode protective film technology with good acid resistance, alkali resistance and cavitation corrosion resistance
  • Suitable for various water quality conditions
Applications
  • Ultrasonic humidifier and USB mini humidifier
  • Toy gift spray and car humidifier
  • Beauty aromatherapy essential oil atomization
  • Mosquito repellent and medical atomization
  • Cooling, humidification, sterilization, and dust control systems
1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers
Material Composition
Piezoelectric vibrator, rubber ring, yellow wax tube 1007 24AWG red and black electronic wire
Electrode Ag (Silver)
Electrode protector Glass glaze
Lifetime ≥ 5000 hours
Piezo ceramic thickness 1.7M frequency: 1.25mm, 2.4M frequency: 0.8-0.82mm, 3M frequency: 0.75mm
Technical Specifications
Resonant Frequency 1.70-30KHz ±60KHz
Resonant Impedance Max. 5Ω
Capacitance 1600 ±15% PF
Electromechanical Coupling Factor (kt,kp) Kp = Min. 25%
Mechanical quality (Qm) Min. 800
Dielectric loss (tan) Max. 0.5%
Piezoelectric constant (C/N) Min. 300
Operating Temperature -20~70℃
Storage Temperature -30~80℃
Soldering Process Parameters
Process Temperature (°C) Time (Sec.) Times
Reflow soldering (Inclusive Lead) 230±10 Above 170℃ time 40~70 2
Wave soldering (Inclusive Lead) 245±5 3~6 1~2
Manual soldering (Inclusive Lead) 330±10 1~2 1~2
Reflow soldering (Lead Free) 245±15 Above 180℃ time 40~70 3
Wave soldering (Lead Free) 260±5 4~8 2~3
Manual soldering (Lead Free) 350±10 1~3 2~3
Product Images
1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers 1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers 1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers
Technical Diagram
1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers
Product Benefits
  • Produces negative ions and atomization simultaneously for sterilization and smoke deposition
  • Generates cold water mist for cooling and humidifying air
  • Cold fog with negative ions improves oxygen absorption and carbon dioxide emission
  • Provides therapeutic effects for respiratory diseases and asthma
  • Skin hydration without high-temperature burns or discomfort
  • Removes second-hand smoke, formaldehyde, carbon monoxide, bacteria and odors
  • Reduces dry skin and eyes in air-conditioned environments

If you are interested in our product, please feel free to send us your inquiry.

We will try our best to quote competitive pricing for you!

1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers
Related Products
1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers 1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers 1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers
Our Services
1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers
Packaging & Shipping
1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers
Manufacturing Facility
1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers 1.7MHz 24V DC 350ML/H Ultrasonic Atomizing Transducer Microporous Piezo Electric Disc for Humidifiers
Frequently Asked Questions
1. When can we get the reply?
Any inquiries will be replied within 24 hours.
2. Can I have samples?
Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight fee.
3. What about minimum order quantity?
We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample to test first.
4. What about delivery time?
We will send sample to you within 3 days. Production for big quantity needs 20 to 25 days. And it also depends on product and quantity.
5. What about terms of payment?
Payment terms: T/T, West Union, Paypal and L/C etc.
6. How you will send the goods to us?
We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc.
7. Are you trading company or manufacturer?
We are in China buzzer manufactory.
8. Do you support OEM and ODM services?
Yes, surely support. We can customize products according to the drawing.
9. Can you provide driven circuit?
Yes, of course sure.
10. Can you solve technical problems for us?
Yes, Our Technical team will try our best to support you.
